3d Printer Filament Extruder

FOB Price

US$ 15,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	sevenstars	Model Number	series 3D Printer Filament Extruder Line
Voltage	380V 50HZ or customized	Power(W)	depend on diffrent machine
Dimension(LWH)	depend on diffrent machine	Weight	depend on diffrent machine
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

ABS/PLA Plastic Filament Extruding Machine
used to manufacture: 1.75mm & 3.0mm ABS/ PLA 3D printer filament.

Application of ABS/PLA Plastic Filament Extruding Machine :

3D abs,pla filament & typing Strips mainly used for 3D Printer.

The main products of the ABS,PLA Filament Extruder: 1.75mm ABS/ PLA 3D Filament & Typing Strips.

2. Work Flow of the ABS/PLA Plastic Filament Extruding Machine :

SJ45 Single Screw Extruder with Die Head→Stainless Steel Water Cooling Trough→Laser Online→Haul-off Unit→Double-Station Winder→Packing

3.Main Equipment of the ABS/PLA Filament Extruder:

No.	Items	Specification	Qty
	HX-45 3D Filament Extruder	ABS/PLA 1.75mm, 3.0mm	1 set
2.1	Stainless steel hopper	Stainless steel	1 set
2.2	45 single screw extruder	Φ45*28D	1set
2.3	Die Head	1.75mm,3.0mm	1set

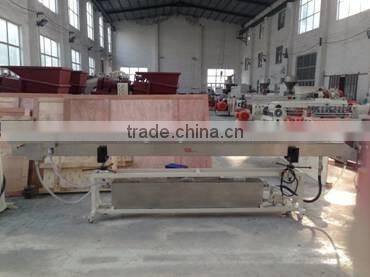

2.4	Stainless steel water cooling trough	3m	1set

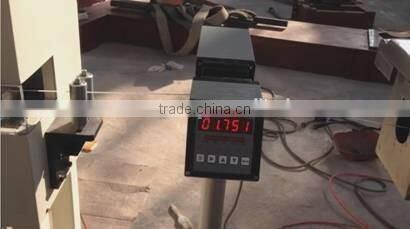

2.5	Laser online		1set
2.6	Haul-off Unit	Four-roll	1set
2.7	Double-station Winder	standard	1set

4 Technical parameters of ABS/PLA Plastic Filament Extruding Machine:

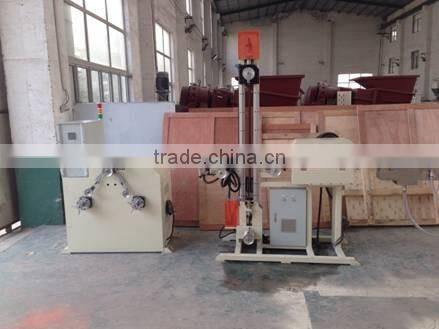

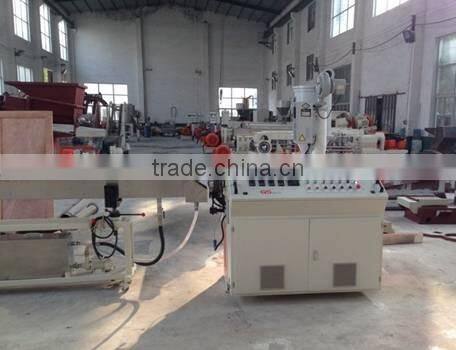

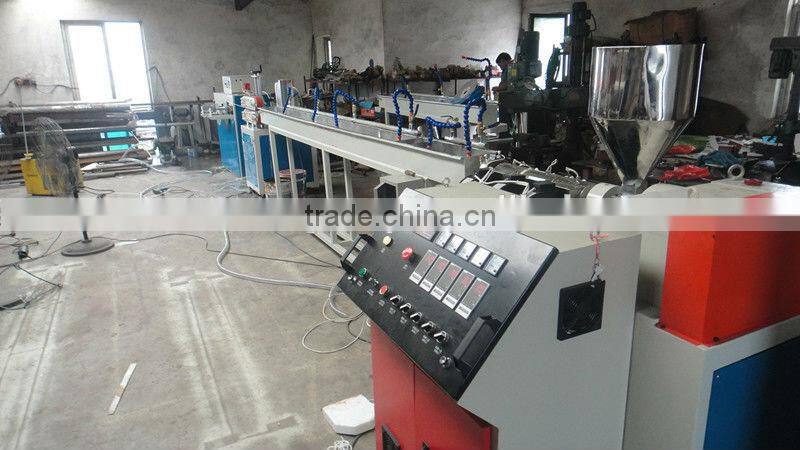

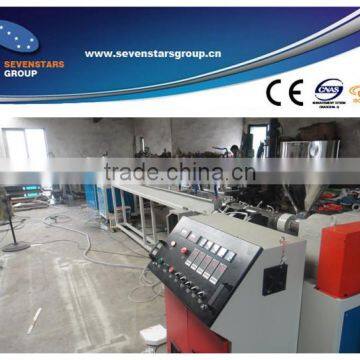

5. Picture Show of ABS/PLA Plastic Filament Extruding Machine :
