Home > Products > Plastic Profile production line > upvc pvc deco profile extrusion line

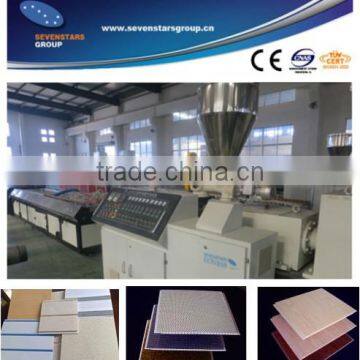

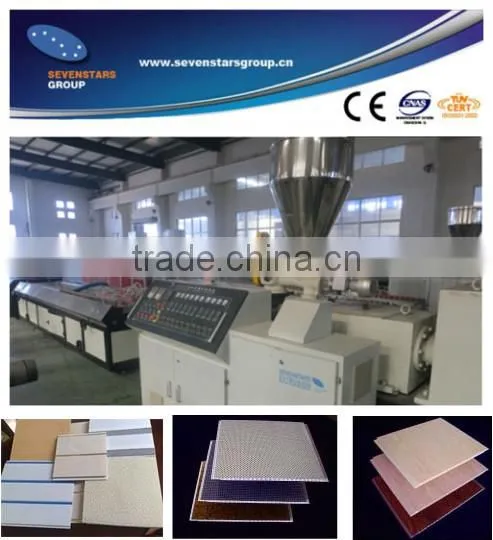

upvc pvc deco profile extrusion line
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
- computerized air cushion machine
- Polystyrene EPS Hot Foam Cups Machine
- HDPE water pipe production line gas pipe production line plastic HDPE pipe making machine
- HDPE PE Pipe Extrusion Making Machine HDPE water pipe production line gas pipe production line
- PVB glass laminated film production line
- PET-GRIP Cement Lining Drainage Board Production Line
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | full automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Sevenstars | Model Number: | used for produce pvc ceiling panel | Voltage: | 380V 50Hz or customized |
Power(W): | dpend on the model | Dimension(L*W*H): | depend on the model | Weight: | depend on the model |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
pvc deco profile extrusion line1. SJSZ65/132 an SJSZ51/105 extruder
2. width: 160- 600mm
2. Stable working
PVC ceiling profile extrusion machine, PVC ceiling making machine,
PVC panel extrusion machine, PVC wall panel extrusion machine
Brief indroduction PVC ceiling
Products | PVC ceiling, PVC panel, PVC wall panel | |
Specification | Proof | Light in weight and easy installation |
Unit price | US1.50~US4.00 | |
Caco3 Ratio | 30-200% | |
Width | 10cm/16cm/18cm/20cm/25cm/30cm/60cm | |
Length | 5.8m/5.95m/as customers' requirements | |
Thickness | 6mm/7mm/7.5mm/8mm/9mm/10mm/11mm/12mm | |
Weight | 1.85kg-3.3kg | |
Surface | Printing, hot-stamping, pearlite printing, peritoneal, normal glossy, high glossy | |
Colors | Varied colors to you choose | |
Features | (1)High shrink surface, smooth without gap when concatenated | |
(2)Fireproof, moisture-proof, mould-proof, waterproof, soundproof, sound-absorbing, light in weight and easy installation | ||
(3)For ceiling and wall decoration | ||
(4)The variety of colors and patterns | ||
Type | Flat surface or middle groove |
Fearture of pvc deco profile extrusion line :
1. Self-fire extinguishing, non-flammable.
3. It is impenetrable by insects or termites, and won′ t rot or rust.
4. Resistance to weather/ special chemicals; Waterproof / Washable.
5. The excellent rigid and superior impacted surface is without any peeling.
6. Natural wood grain: Showing authentic wood structure and artistic sense.
7. Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right.
8. Quick maintenance and no need of painting.
9. The simple and fast installation can save a lot of time and manpower cost.
Model | Product dimension (w×h)mm | Extruder model | output(kg/h) | Max speed (m/min) | Install power (kw) | Main motor power(KW) | Length of line(m) |
SJYF-180 | 180×60 | SJSZ51/105 | 80-120 | 6 | 55 | 22 | 23 |
SJYF-240 | 240×120 | SJSZ65/132 | 140-180 | 4 | 76 | 37 | 27 |
SJYF-600 | 600×120 | SJSZ80/156 | 300-400 | 6 | 100 | 55 | 30 |
Configuration of pvc deco profile extrusion line :
Name | Quantity |
Automatic loader | 1 set |
SJZ51, SJZ65,SJSZ80 conical twin screw extruder | 1 set |
Mould and calibrating | 1 set |
Vacuum calibrating table | 1 set |
Haul off machine | 1 set |
Printer | 1 set |
Cutting machine | 1 set |
Tipping stacker | 1 set |
