Specifications
PVC plastic profile extruding machinepvc profile extrusion machine .
profile extruding machine

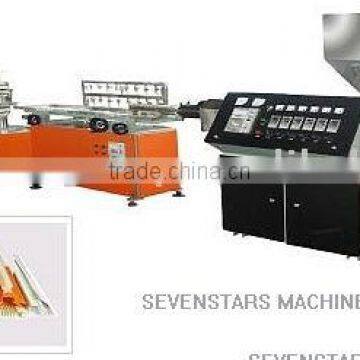

PVC plastic profile extruding machine
This machine is a highly efficient agglomerating and extruding equipment. Using PVC powder as raw material for a direct forming, the exturders perform an excellent effectiveness.Machines of this series have wide application. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastics into pipes, boards, bars, films, hollow cross-section products.
The machine has below advantages
1. Low shearing rate, uneasy degradation,plasticization uniform and agglomeration
2. Reliable quality ,wide application range and long servicing life.
3. Automatic temperature control, vacuum gas exhaustion, oil cooled screws
4. Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism.
Technology parameter
Used for pipe extrusion
| Model | SJZ-45 | SJZ-50 | SJZ55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw diameter(mm) | 45/100 | 50/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw rotate speed(rpm) | 45 | 45 | 45 | 45 | 34.7 | 3-34.7 |
| Driving motor(kw) | 15/18.5 | 18.5/22 | 22/30 | 37 | 55 | 110 |
| Max output capacity(kg/h) | 110 | 125 | 180 | 250 | 350 | 800 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 |
| Dimension(L*W*H) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
