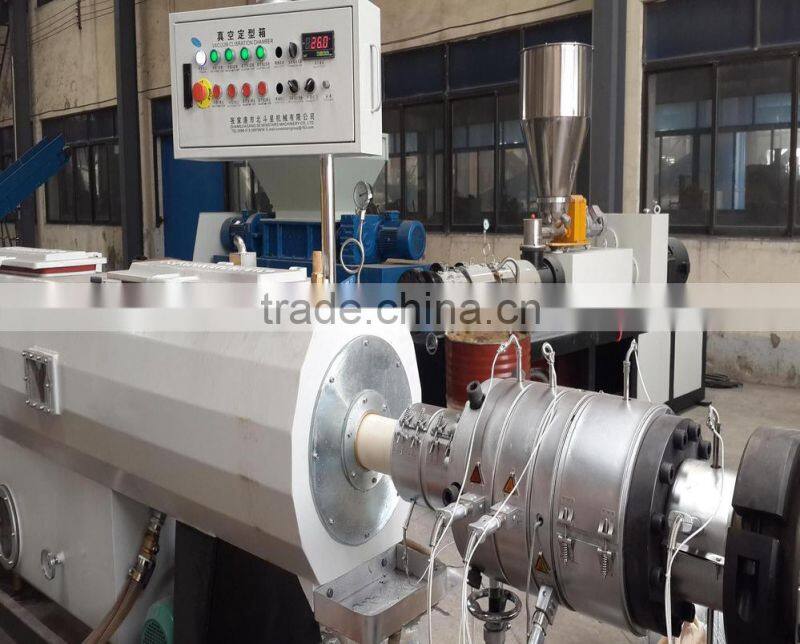

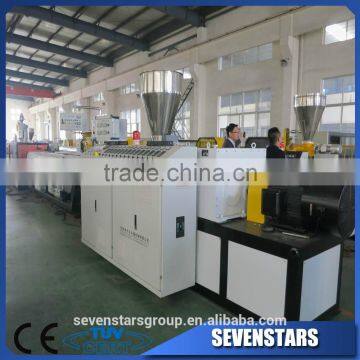

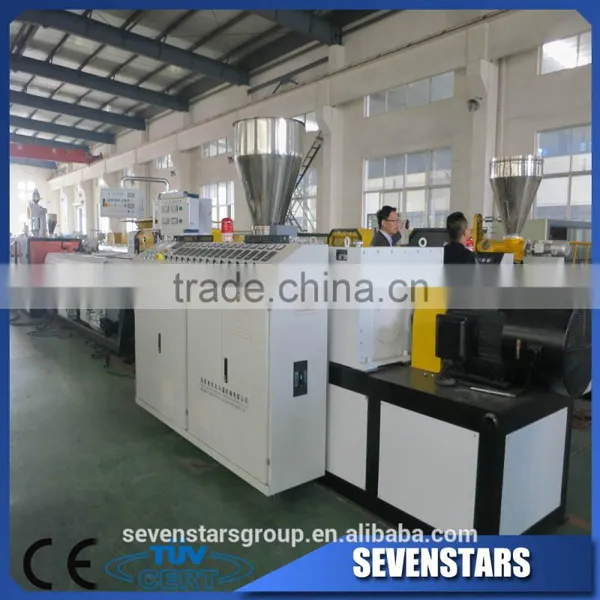

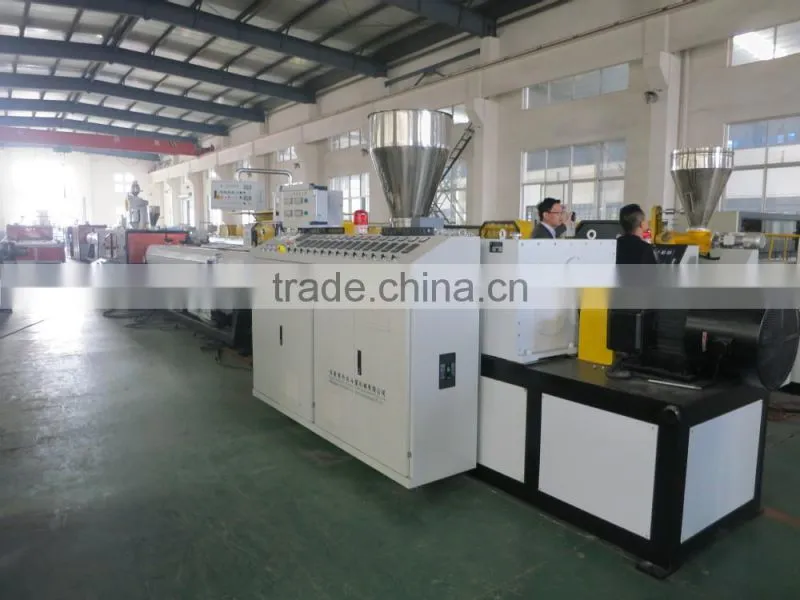

50-160mm PVC Pipe Extrusion Machine

Extrusion Machine for PVC pipe

 Specifications

1: Conical Double-Screw Extruder and Mould

a: Diameter of the Screw:65/132mm

b: Numbers of the Screw: 2

c: Nitriding Righdity of the Barrel and the Screws: 900HRC

d: Rotating Speed of the Screw: 38r/min

e: Available Working Length: 1560mm

f: Material of the Barrel and Screws: 38 CrMoAlA

g: Control Method: PID or PLC decided By Customer

h: Material and Calibrator: Stannum Bronze 45# Steel, Harden Treated

i: Figure Dimensions(LXWXH): 4235x1520x2450mm

j: Weight: 5000kg

2:Vacuum Calibrator Tank

a: Water and Vacuum Pump: 2.2*2 KW

b: Electric Power: 380V/50HZ.

c: Cooling Type: Spray-Pouring Cooling

d: Element of Electric System: From Simens

e: Figure Dimensions(LXWXH): 6500x800x1200mm

f: Weight: 1400KG

3: Extended Cooling Trough

a: Water Pump Power: 3 KW

b: Pouring Areas: 6 Places

c: Material: Stainless Steel.

d: Nozzel Material: Nylon PA66

e: Figure Dimension: 6500x700x1200

f: Weight: 1100KG

4:Hauling Machine

a: Motor Power: 1.5*2 KW

b: Max Force of Hauling: 12000N

c: Pressure of compressed Air Supply: 6.3Mpa

d: Element of Electric System: From SIMENS

e: Figure Dimension: 1900x1100x2250mm

f: Weight: 1800KG

5:Cutting Machine

a: Cutting Motor Power: 1.5KW

b: Cutting Saw Size: Diameter 110x2x40mm

c: Material of Cutting Saw: Alloy Steel

d: Clamping Mode: Pneumatically

e: Element of Electric System: From SIMENS

f: Valumn of Pneumatic System: From AIR TAC

6: Stacker

a: Working Mode: Pneumatically Drive

b: Material of the Splint Board: Stainless Steel.

c: Figure Dimension: 6000x700x1250mm

d: Weight: 650KG
