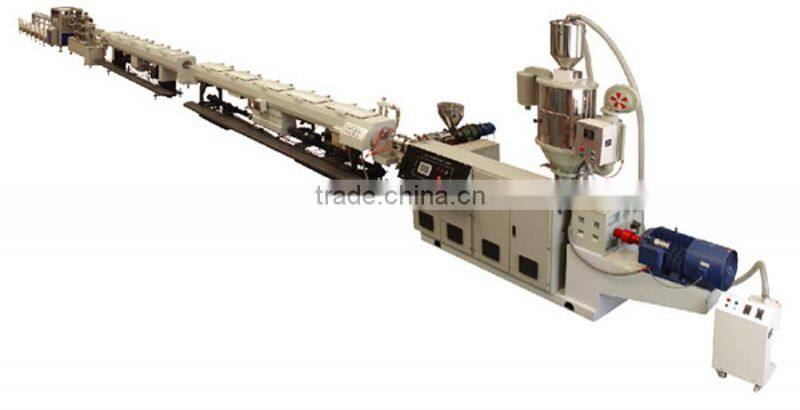

Help CenterHDPE Pipe Production Line(110-315mm)
Related Products
Specifications
1.the pipe extrusion line is mainly used to manufacture the pe plastic pipe2.adopted famous brand speed-regulating systems
|
General description |
Main electric elements |
Frequency changer: FUJI of Japan Contactor: Siemens Air-break switch: Siemens Temperature controller: RKC of Japan Control system: PID(controlled by buttons and switch) |
Output |
380kg/h |
|
Connect type of extruder and mould |
Bolt connection |
|
Advantages |
Main parts adopt top-rank brand Strict real time quality control |
|
Screw |
Diameter(mm) |
120mm |
L/D |
30/1 |
|
Material |
38CrMoAlA, Nitrogen treated |
|
Heating |
Casting aluminum heater with stainless steel outer cover |
|
Heating segments |
6 zone |
|
Heating power |
60kw |
|
|
Barrel |
Barrel type |
With feeding groove; Water cooling |
Cooling |
Cooling by blower, temperature control accuracy: ±1 |
|
Cooling segment |
6segments |
|
Material |
38CrMoAlA, Nitrogen treated |
|
|
Transmission system |
Main motor power（KW） |
160kw |
Speed adjusting mode of main motor |
DC timing |
|
Rotating speed of main motor (r/min) |
1500r/min |
|
Gear box |
Hard tooth face Shaft: NSK of Japan Material of gear: 20CrMnTi |
