waste plastics granulation line/ waste plastics pelletizing line/ waste plastics pelletizer

Specifications

Plastic PP PE granulation line with side force feeder
1.For recycling PP PE film,bags,scraps
2.output:150-800kg/h
3.ISO CE

PP PE film pelletizing line



Feature and Function:

Water ring type pelletizing line,recycling PP PE film bags,make them into pellets.



Process flow:

Conveyor→ PP PE film force feeding machine→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing machine → water tank → dewatering machine→ vibrating sieve→ Air Blower → Storage hopper





Detailed description

1. Conveyor:convey PP PE film or flakes into compactor.

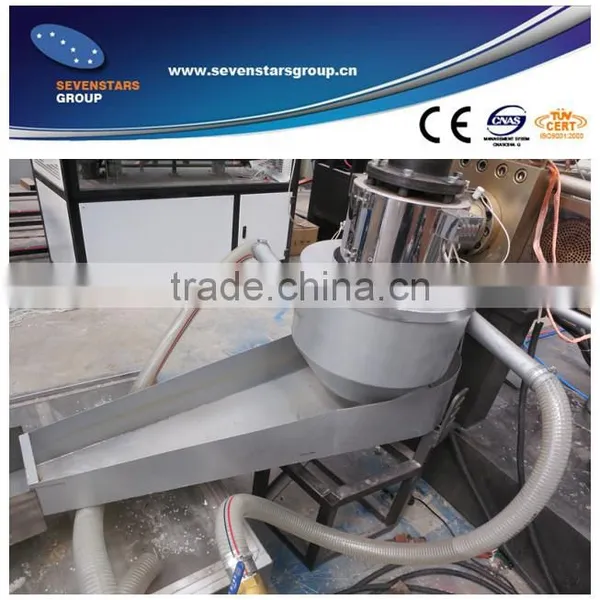

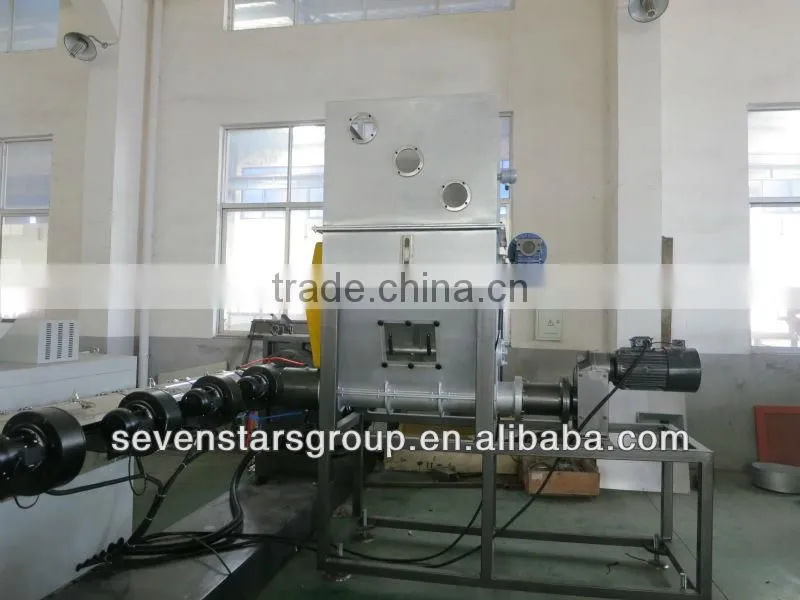

2. PP PE film force feeding machine:force feed film chips,rigid scraps into extruder,to make the the production capacity high and stable.



3.Extruding system:plasticizing material and exhausting gas.



4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.



5.water ring pelletizing machine:cutting pellets in water.



6.Water tank:cooling pellets.

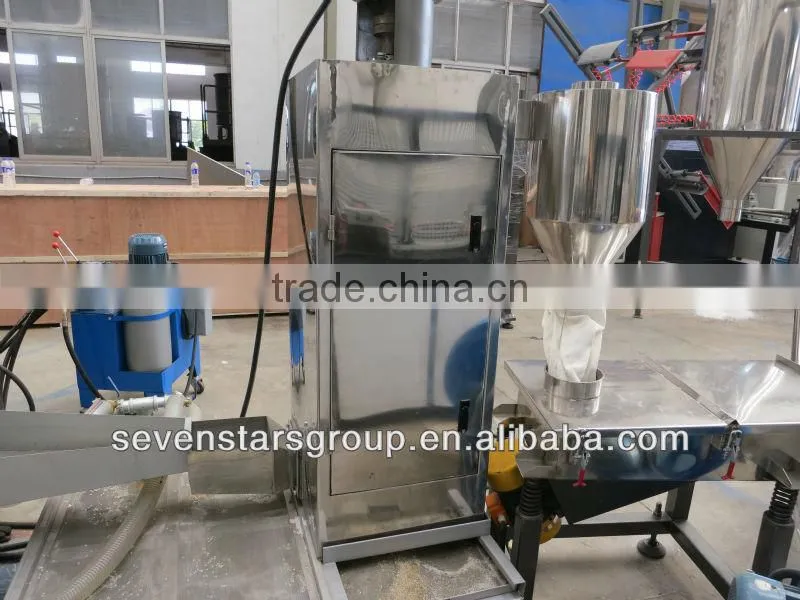

7.Dewater machine:make pellets dry.

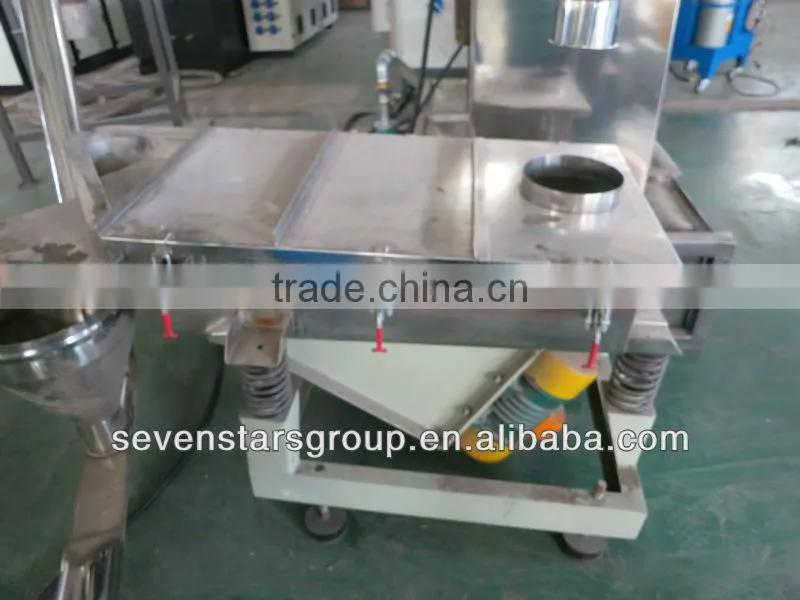

8.Vibration sieve:remove bad pellet and keep good pellet.



9.Air Blower:convey good pellets into silo.



10:Storage silo:keep pellet.





Technical data:



Extruder	SJ90	SJ120	SJ150	SJ180
Main Motor Power	55KW	75kw	110kw	185kw
Production capacity	150KG/H	150-250kg/h	300-400kg/h	450-800kg/h
