Specifications
PVC pelletizing machine/line1.CE certification
2.double screw extruder
3.pvc powder
4.PVC pelletizing

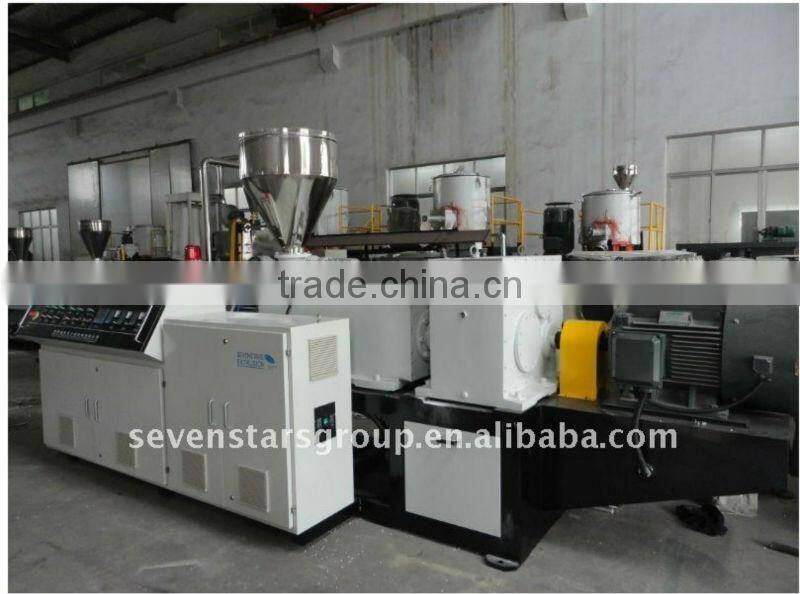

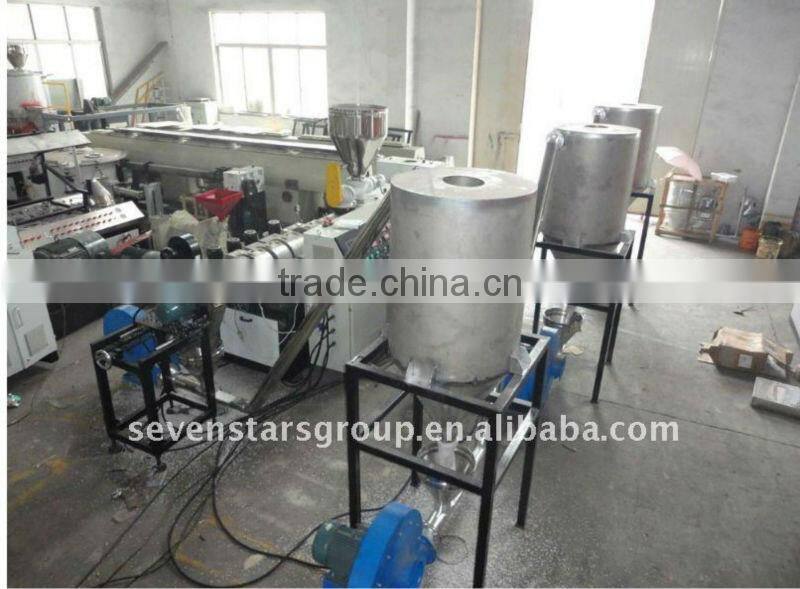

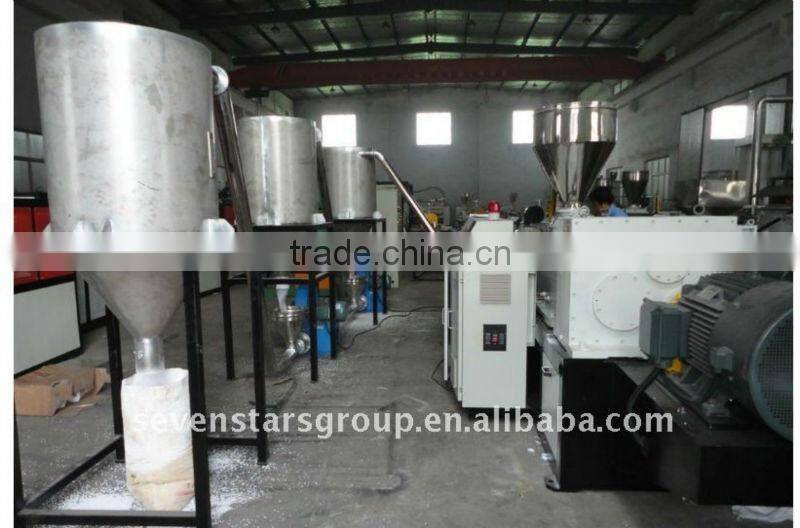

PVC pelletizing line
Application of PVC granulating machine:
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.
Features of product:
1.advanced equipment, precise pelletizing and high producing capacity.
2. Conical double-screw extruder, very suitable to process PVC powder with high capacity

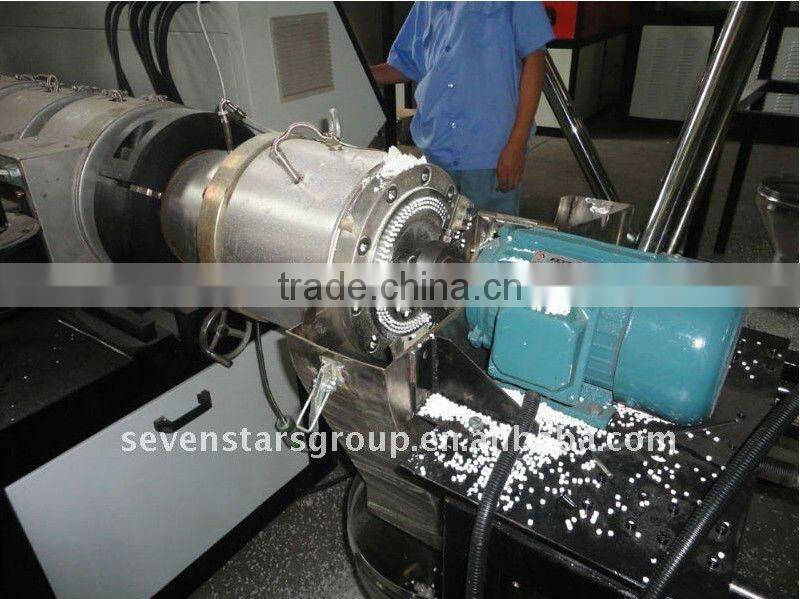

3. Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4. Auxiliary machine: Pellets cooling & classifying.
Process flow:
Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing
Technical parameters:
Model |
screw diameter (mm) |
L/D |
Capacity (kg/h) |
Main motor power(kw) |
Total power (kw) |
Line length (m) |
SJZ51 |
51/105 |
14.5:1 |
120 |
18.5 |
70 |
12 |
SJZ65 |
65/132 |
14.6:1 |
200 |
37 |
100 |
14 |
SJZ80 |
80/156 |
15.25:1 |
350 |
55 |
150 |
16 |
SJZ92 |
92/188 |
17.86:1 |
600 |
90 |
200 |
18 |
PVC pelletizing line PVC pelletizing machine PVC granulating line PVC granulating machine
