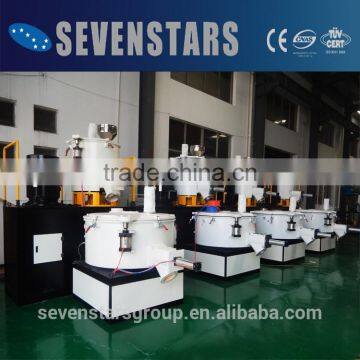

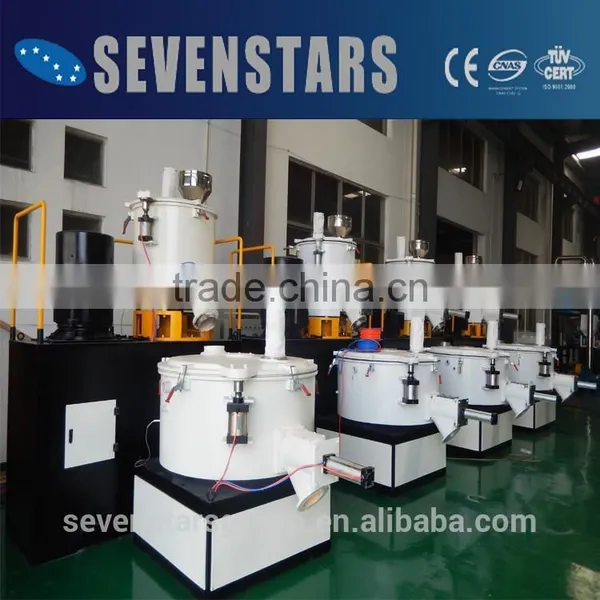

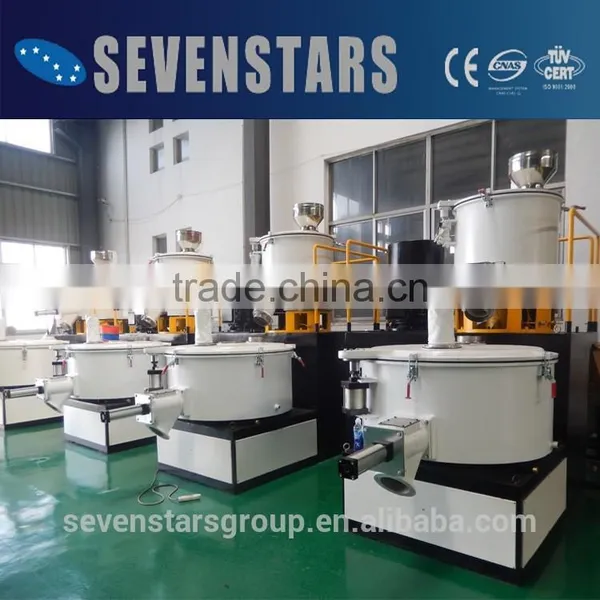

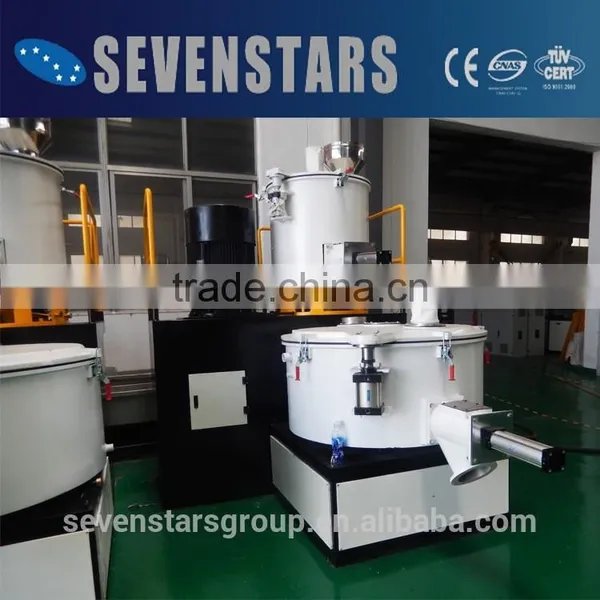

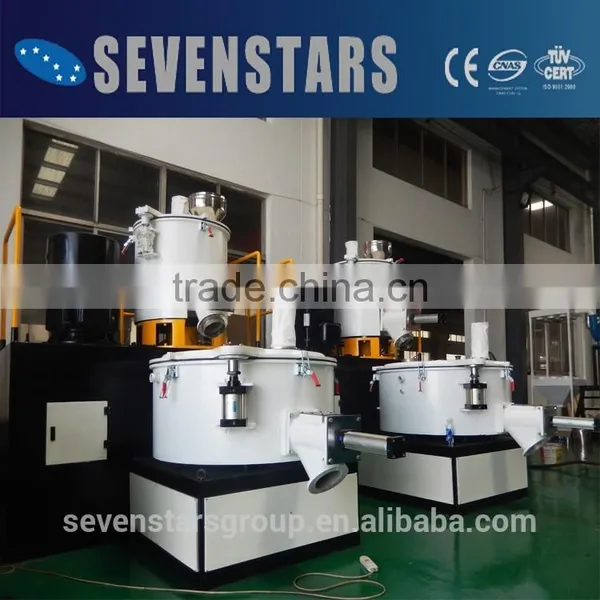

SRL-Z SERIES high-speed mixer machine
The uint combines heat mixing and cool mixing crft together.the materials after heat mixing can be got into cool mixer for cooling automatically,exhausts remaining gases and prevent agglomeration.
1. Special equipment for plastic material
2. With PLC control
3. Automatic mixing
4. CE&ISO9001
5. High peed
Main Technical Parameter:
Model/specs | SRL-Z100/200 Hot mixing/cold mixing | SRL-Z200/500 Hot mixing/cold mixing | SRL-Z300/600 Hot mixing/cold mixing | SRL-Z500/1000 Hot mixing/cold mixing | SRL-Z800/1600 Hot mixing/cold mixing |
Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective cubbage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Heating & cooling manner | electric heating self-friction/water cooling | ||||
Mixed time(min/batch) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor Power(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
Dimension(L×W×H)(mm) | 1950×1600×1800 | 4580×2240×2470 | 4800×2640×2480 | 4600×3000×4050 | 5170×3200×4480 |
Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer’s workers.
2.Meanwhile, engineers will teach how to operation, maintain for buyer’s engineers, worker on site.
3.We also offer long term technical guidance.
1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.
2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.
3.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.
4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
Please send your inquiry details in the below !
