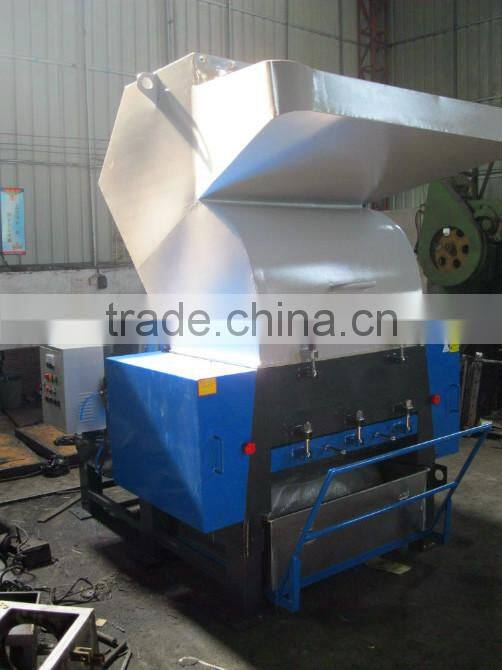

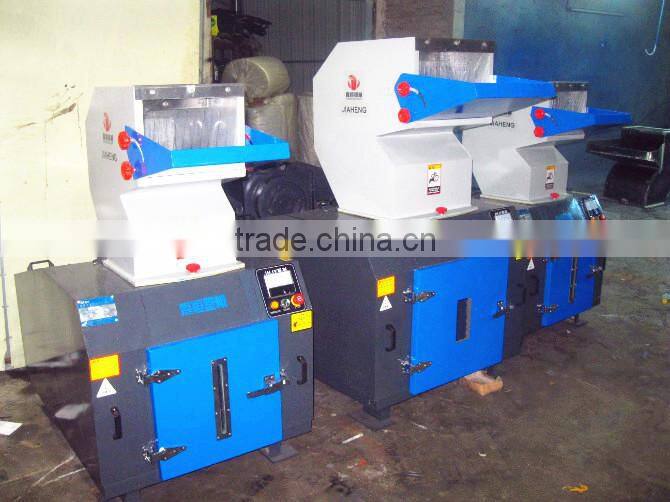

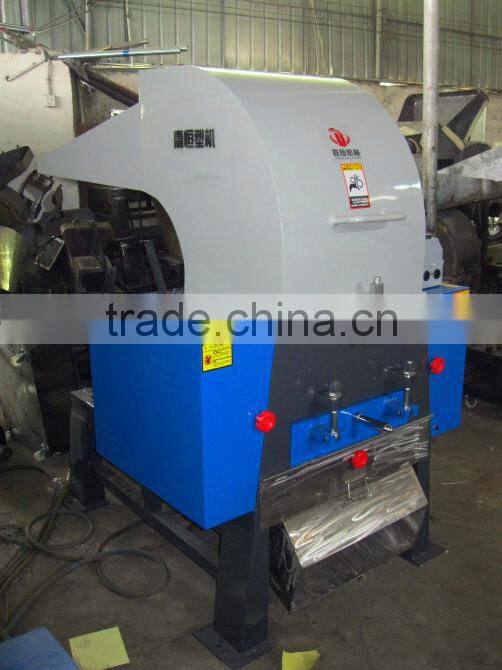

Sevenstars PVC Waste plastic Crusher machine

Specifications

Sevenstars PVC Waste plastic Crusher machine
1. With CE Certificate
2. Capacity: 100-2000kg/h
3.Two types: Wet Crusher

Sevenstars PVC Waste plastic Crusher machine

1.mainly suitable for PVC ,PP,PE,PP-R and other plastic pipe crushing,also suitable for plastic profile

and other waste reasoable size plastic lump pastic crushing

2.high crushing capacity ,

3.blades are easy to disassemble for sharpening and washing

4.special safety design

5.very convenient to change different  sieve according to requirement

6.sieve hole diameter can be adjusted according to client demand

7.equip with  crushed plastic granules assembling dvice and electric control cabinet



Main technical parameter of  plastic crusher machine /  plastic pipe crusher machine

Model	SWP150	SWP200	SWP210	SWP300	SWP320	SWP380	SWP400	SWP630
Diameter of turning knife(mm)	150	200	210	300	320	380	400	630
Number of turning knife	9	3	3	3	6/2 groups	12/4 groups	5	9/3
Turing speed of knife(r/min)	730	870	500	640	650	650	500	480
Number of fixed knife	2	2	2	3	2	8/4 groups	2	4/2
aperture of screen panel	φ8	φ8	φ8	φ12orφ14	φ8	φ10	φ10	φ10
Crushing capacity(kg/h)	60-200	50-110	80-120	50-250	250-350	100-400	350-450	700-850
power	5.5	4	4	37	11	27.5	13.2	44
Current source	380V50Hz
Size of feeding gate(mm)	150×200	240×350	250×230	260×1200	500×280	268×1120	375320	820610
weight(kg)		300	320	2000	1400	800	980	5000
Outline dimension(mm)	1200*820 *1160	1000*590 *1090	800*600 *1400	1550*1300 *1850	1613*1150 *1910	1800*1460 *1380	2500*1200 *2000	2500*1550 *2850
