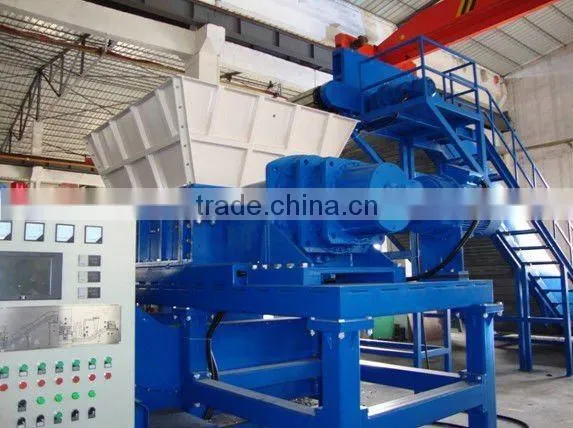

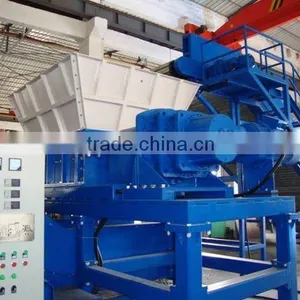

Double Shaft Screw Shredder

Double Shaft Screw Shredder thumbnail-1
Double Shaft Screw Shredder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
sevenstars
Model Number:
SNC2 Series
Contact Supplier Request Quote Chat Now
Zhangjiagang Sevenstars Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name sevenstars
Model Number SNC2 Series
Use Other, plastic material/wood/tire
Plastic Type Other, PVC/PE/PP
Shaft Design Double
Power Depend on the capacity
Capacity As client's demand

Specifications

two shaft screw shredder the big diameter pipe. profile, basket,film etc wasted,

Characteristic

Our double shaft shredding machine adopts the advanced technology introduced from Europe, and passed the CE Certification of Quality System. Low speed,  high torque, low noise.

over-load protector , the machines is suitable to treat the big, thick of plastic products, such as big diameter plastic pipe , the shell of TV sets, refrigerators and washing machines, tires , plastic packing case, computer hard disk, aluminum, bronze and the thickness of steel less than 5mm.



The machine is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically if something unexpected happen, with very high safety service



Remark

1. The standard thickness of rotary blades is 40mm, also 15mm and 20mm. you can choose the suitable blades according to the size of the processing granules.

2. For the rotary blades, we have single gripper, double gripper, and more than two grippers for your customers’ choosing.

Model

Feeding mouth(mm)

Speed

(rpm)

Driving power

(kw)

Size of disc-type blades (pcs.)

Quantity of rotary blades (pcs.)

Dimension

(mm)

Weight

(kg)

LGSZ2140

400*500

85

7.5

240x30

12

1270X1120X1330

1500

LGSZ2160

600*540

85

5.5+5.5

250x40

15

1500X1120X1330

2000

LGSZ2180

800*540

85

7.5+7.5

260x50

19

2000X1120X1330

2500

LGSZ3280

800*800

85

15+15

280x50

20

2100X1420X1800

3500

LGSZ32100

1000*800

85

18.5+18.5

300x50

25

2400X1420X1800

4000

LGSZ32120

1200*800

85

22+22

350x70

28

2650X1420X1800

4800

LGSZ40100

1000*9800

85

22+22

400x70

40

2900X1700X2300

5000

LGSZ40120

1200*980

85

30+30

400x70

42

3200X1700X2300

6000

LGSZ40148

1480*980

85

37+37

400x70

42

3600X1700X2300

7500
