shredder the big diameter pipe. as the PE or PVC etc. for recycling or other .have one shraft, shredder the big plastic pipe. the scrap would according to the requiry. and change the size of screen. for recycling or other.

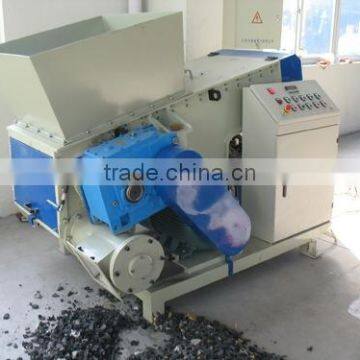

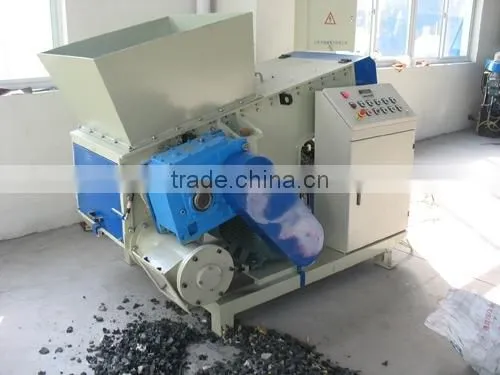

Signle shaft plastic shredder with its character:
1. this machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others
2. the blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance .
3. the rotary blade adopt the Vdesign ,It can decrease the noise and decrease energy consumption .
4. each rotary blade with 4 cutting knife edge ,when the rotary blade is weared ,it can be rotated to 90 degree , then the blade can continous use .
5. each fixed blade with 2 cutting knife edge ,when the fixed blade is weared ,it can be rotated to 180 degree , then the blade can continous use .
6. the main axis is drived by gearbox , ,its running very stably ,low noise and strong power .
7. the material push feeding system is hydraulic ways , ,its running very stably
8. the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service
Signle shaft plastic shredder with its parameter :
Model |
Main motor powerkw |
Pushing power kw |
Qty of rotary blade |
Qty of fixed blade |
Diameter of rotator |
Rotating speed (r/min) |
Capacity kg/h |
Dimension L*W*Hmm |
Weight kg |
SNC1-600 |
22or30 |
1.5 |
28 |
2 |
φ252 |
90 |
400-600 |
1800*1215*1850 |
2000 |
SNC1-800 |
30or37 |
2.2 |
38 |
2 |
φ400 |
85 |
500-750 |
2700*1700*2350 |
3200 |
SNC1-1000 |
37or45 |
2.2 |
48 |
2 |
φ400 |
80 |
600-900 |
2700*2000*2350 |
3800 |
Note that : the size of treated plastic material depand on the size of screen exchange mesh , the diameter of screen exchanged mesh from φ20 to φ100mm
