Specifications
PVC Roof Tiles Extrusion Line1.High capacity
2.Efficient extruders
3.Smooth products
4.Long life

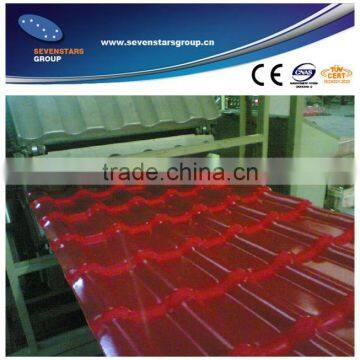

PVC Roof Tile Production Line is consist of conical twin screw extruder/ die head/Calibration unit/ Chilling unit/Hauling unit/Cutting unit/Stacker. PVC roof tile can be widely used in the old and new roofing, old and new factory, warehouse, stores, farmers markets, civil bungalow, the residential quarters to flat slope, the new rural construction, villa roofing, pile of loading bays, farms, vegetable shed, rain booming, awning and sights and raising antique buildings board, removable houses, balcony column board, frame structure wall etc building water proof insulation. Advantages with light weight, intensity big, wear pressure deformation.
Features of PVC Wave Roof Tile Production Line:
1. Adopt PLC control and simple operation .
2. Adopt Electric-magnetic heater which can save 40% -60% electric power for customer .
3. All Electric Part (breaker/motor/relay /Inverter and so on ) is Siemens/Schneider/Omron
4. Adopt Gravity Feeding System
5. Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV;
6. Unique grooved structure feed bush with force cooling system that is specially designed by Friend co. which can increase output at 15-20%.
7. Variable screw-pitch and double-separate structure screw is specially designed for PE. Comprehensive plasticizing element, ensure the plasticizing effects of materials.
8. The water cooling tank has two vacuum chambers which can improve cooling effect .
9. This line includes automatic forced feeding system/conical extruder/die head and mold/calibration unit/chilling unit/hauling unit/cutting unit/stacker .
Technical Parameters of PVC Wave Roof Tile Machine
Product |
Product thickness |
Extruder |
Max. output |
Total Length |
880mm |
2-4mm |
SJSZ-80/156 |
390kg/h |
customizing |
1040mm |
2-4mm |
SJSZ-80/156 |
420kg/h |
customizing |
