Specifications
wpc machine1 To produce wpc door panel
2 width:600-1200mm,thickness:30-50
3 Siemens motor
4 ce

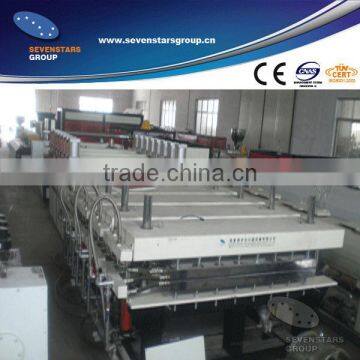

pvc / wpc profile window door wall extrusion machine line
Feature and Structure
1 This pvc wood door panel production line has compact structure ,good plastification,high output,long life and other advantages.
2 This line uses conical twins screw extruder with Dcmotor ,imported elelctornic components and plastinum resistance,which provide wide adjusting rangge and precise temperature control.
3 The down stream equipment includes vacuum calibration and cooling unit ,haul-off unit,cutting machine and stacker.
4 The haul-off unit uses two line caterpillar.
5 The lower one is fixed and upper one can be adjusted according to the plate size
6 The cutting machine is equipped with PLC control system which helps to set length and provide accurate automatic cutting.
Main Technical Parameter
Model |
YF600 |
YF800 |
YF1000 |
YF1250 |
Max.Width of product |
600 |
800 |
1000 |
1250 |
Extruder Model |
SJZ-80/156 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
Max.Extrusion Capacity(kg/h) |
280 |
280 |
450 |
500 |
Extruder Power |
55 |
55 |
110 |
132 |
Cooling Water Consumption(m3/h) |
12 |
13 |
15 |
18 |
Compressed Air Consumption(m3/h) |
0.5 |
0.6 |
0.8 |
1 |
