Specifications
it's used to produce PVC wall panel with different width and different section shap which are used for roof ceilingAdvantages of Wall Panel:
1.100% Water proof, Moisture proof
2.Wall Panel are 100% Damp proof
3.No splitting, cracking, warping or rotting.
4.No painting or varnishing
5.Wall Panel are Light in weight
6.Consistency in quality
7.Easy to install Time and labor saving
8.High durability
9.Wall Panels are Wide range color
10.High aesthetic appeal
11.Reusable
it's used to produce PVC ceiling wall panel with different size, such as 200mm, 250m,300mm, 400mm, 600mm and so on.
Production flow of PVC ceiling production line:
Material batching mixing-extruding-molding-vacuum calibrating and cooling-hauling-cutting- final PVC ceiling
Surface treating ways:
hot stam printing
two color printing with high glossy
lamination
The main machines needed for PVC ceiling wall panel:
-PVC mixer
-PVC panel extrusion line
(Including autoloader, conical twin screw extruder, mould, vacuum calibration chamber, hauling machine, auto cutter- stacker)
- hot stamp printer or two color printing line or lamation
- PVC pipe crusher& PVC miller
- Air compressor
- Water chiller (optional)

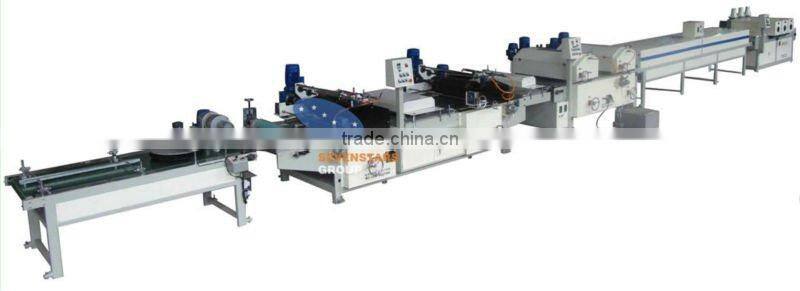

high glossy two color PVC ceiling wall panel printing line
The popular model of PVC ceiling wall panel extruder machine often chosen by our customers:
Popular Model | YF-300 | YF-600 |
Extruder | SJZ51/105 | SJZ65/132 |
suitable size of panel | 160mm,200mm,250mm,300mm | 250mm,300mm,400mm,600mm |
Max capacity(kg/h) | about 100 | about 200 |
production line speed | 3.5-5m/min | |
Main commercial terms:
Payment: 30% as advance, 70% as balance after successful commissioning at sevenstars’ factory.
Delivery time: 40-90days depend on different order and other factors
Packing: sea worthy packing, suitable for sea
Warranty time: one year from machine running in customer’s factory
