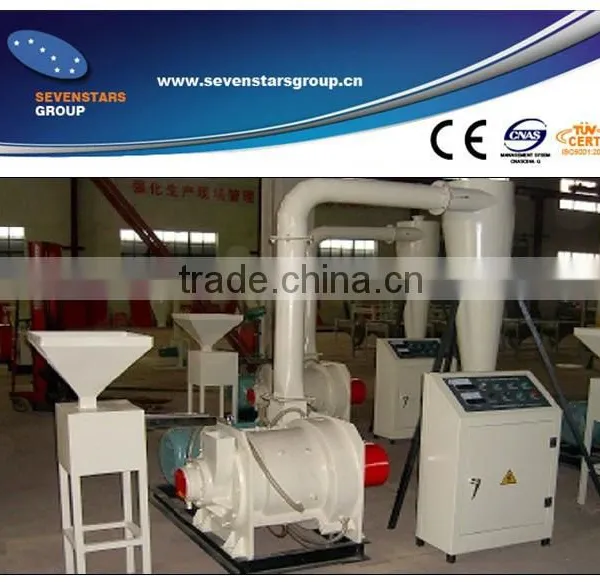

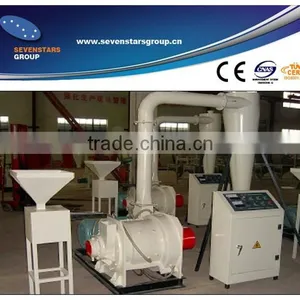

High-speed Turbo-type Plastic Mill Machine/turbo Turbine Grinder Pulverizer Crusher Machine
US$ 4,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Sevenstars
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PE Pulverizer PE Grinding MachineNegotiableMOQ: 1 Set -
High Quality LLDPE Pulverizer Machine MF600NegotiableMOQ: 1 Set
-
Best Quality PE Material Pulverizer MachineNegotiableMOQ: 1 Set
-
PE ABS SBS PP PVC LLDPE Plastic Pulverizer/milling Machine/high Speed Powder MillerNegotiableMOQ: 1 Set
-
SMF400 PVC Pulverizing Machine / PVC Miller MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Sevenstars
Model Number
SMW turbo-type
Certification
CE ISO
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
plastic mill/grind machine1.mill PVC,PE,HDPE material.
2.Capatity100-380kg/h, mesh 30 to 80
3.CE ISO SGS TUV
4.low noise
Product Description
- Adopt advanced technology home and abroad developed the SMW series grinding mill which applicable to the powder processing of PVC PP PE and so on.
- The practice and experience of plastic product factories show that the functions of the products can reaches 280-380kg/h (30-80mesh).
- compared with similar grinders its out put is greatly improved (increaced by 20%-50%)under the same power, so this machine is the best equipment for reducing cost, saving expense and solving the accumulation of waste plastic.The dust collector is added to effectively reduce dust pollution.
- The discharging of the main fan reduces labor intensity of operating workers.
- The door cover of the host can be opened for convenience of cutters.
- Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example, the part of PE and ABS can be grinded by this machine.
- The powder mesh is adjustable (20-150mesh).
specification
Model | SMW-500 | SMW-600 |
Blade disk | 1pc out dim. 483±1mm | 1pc out dim. 583±1mm |
Static knife | 1set(12 pcs) | 1 set(14 pcs) |
Rotary knife | 1set (24 pcs) | 1set (28pcs) |
Main motor revolution speed | 2950rpm | 2970rpm |
Main motor power | 37kw | 45kw |
Draft pan | 3 kw | 4 kw |
Rotary valve | 0.75 kw | 1kw |
Output | PVC 20-100mesh 180-280kg/h | PVC 20-100mesh 220-300kg/h |
Size | 5900*1450*2900mm | 5900*1450*2900mm |
Total weight | 1280 kg | 1680 kg |
