Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc

Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-1

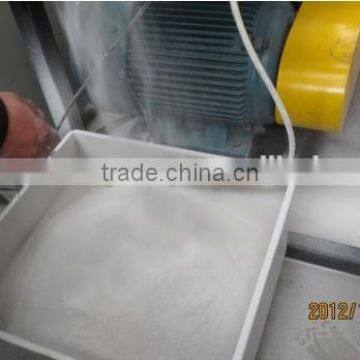

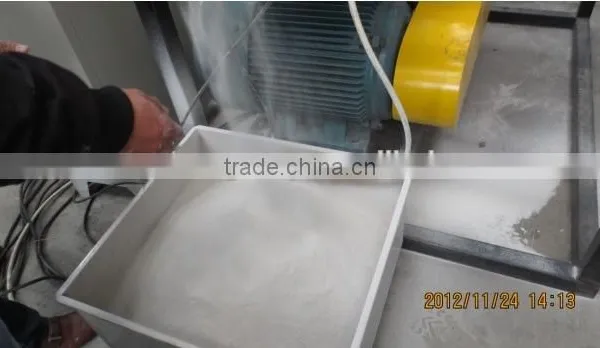

Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-2

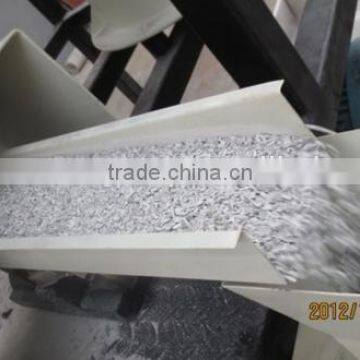

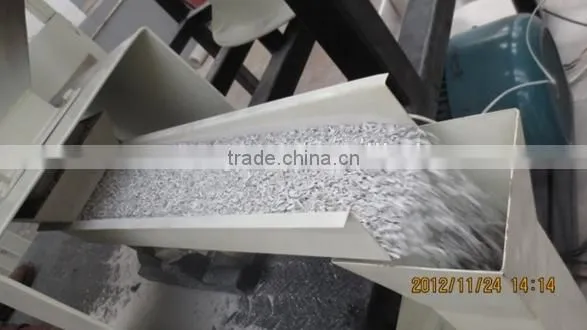

Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-3

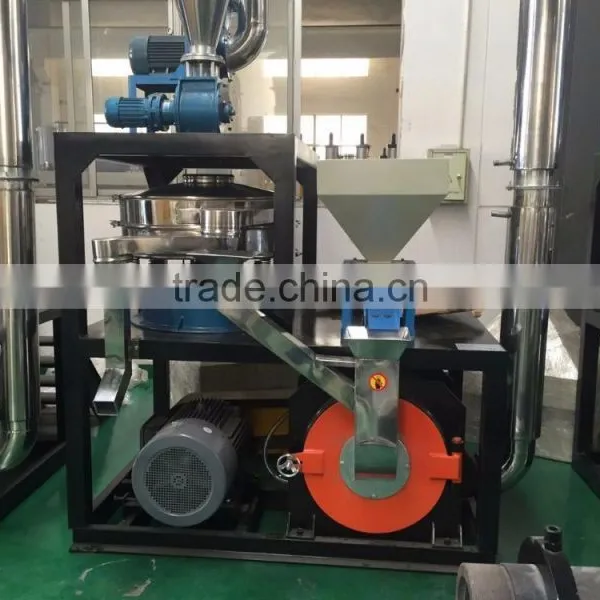

Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-4

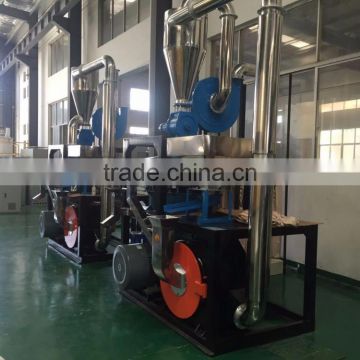

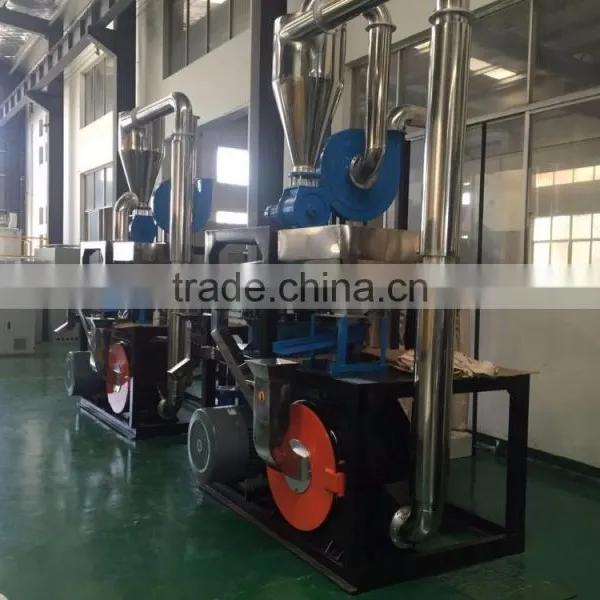

Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-5
Plastic Mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc photo-6
US$ 2,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Sevenstars
Model Number:
SWp
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Sevenstars
Model Number SWp
Production Capacity 600-800kg/h
Voltage 380V or customized
Power(W) 25-110kw
Weight depend on diffrent type
Dimension(L*W*H) depend on diffrent type
Certification CE ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

plastic mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc:



This machine is used for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber .

The Equipment characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation, the host has the wind and water cycle cooling system, automatic feeding device,
dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.
Our factory developed the  MF-S Series rotor automatic plastic milling machine on the basis of advanced Foreign technology, mainly used in plastics, mining, chemical, and metallurgical industries for micro-milling equipment. Especially, used for recycled PVC plastic grind. Improved by the plastic manufacturer in practice, add 20% -30%
of its grinding powder in the process,  the chemical and physical data keep  the same as 100% first hand raw material.

Model

SMF-200

SMF-380

SMF-450

SMF-500

SMF-600

SMF-800

Blade diameter

200mm

380mm

450mm

500mm

600mm

800mm

Lade disk quantity

2pcs

2pcs

2pcs

2pcs

2pcs

2pcs

Rotated speed

4500rpm

4500rpm

4500rpm

4500rpm

4200rpm

3700rpm

Power

main motor

11kW

30kW

30kW

37kW

37kW

45kW

blower

2.2kW

 3kW

4kW

3kW

4kW

5.5kW

Shaker size

600mm

800mm

800mm

800mm

1000mm

1200mm

Output size

10-100 mesh
140μm-1400μm

10-100 mesh
140μm-1400μm

10-100 mesh
140μm-1400μm

10-100 mesh
140μm-1400μm

10-100 mesh
140μm-1400μm

10-100 mesh
140μm-1400μm

Cooling type

air and water

air and water

air and water

air and water

air and water

air and water

Capacity
 ( For 30mesh)

PVC: 100kg

PVC: 200kg

PVC: 250kg

PVC: 250kg

PVC: 350kg

PVC: 500kg

P  E: 50kg

P  E: 150kg

P  E: 180kg

P  E: 200kg

P  E:250kg

P  E: 300kg

P P:30kg

P P:70kg

P  P: 80kg

P  P: 100kg

P  P: 160kg

P  P: 200kg

Dimensions (mm)

2000x1700x2000

2500x2000x3000

2600x2100x3000

2600x2100x3000

2800x2300x3000

3200x2800x3200

plastic mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc

1.Electric cabinet                    2.Mainframe

3.Grinding room                     4.Hopper

5.Shaking feeder                     d transmission pipe

7.Rotundity vibrating sieve      8.Cyclone butterfly valve

9.Cyclone separator                10.Blower

11.Dust catcher



If you are interesting in this machine pls enquire me immediately,

I will quote you as soon as possible!

plastic mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc

plastic mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc

plastic mill for Hdpe/ldpe/pe/pp/pet/EVA/pvc
