Most popular plastic tile sheet plate roofing making machine producer
Application & Feature of PVC Wave Tile Making Machine:
PVC roofing tile making machine can be used for continuous produce UPVC colored wave plate, if replacing the relevant components,
Machines list of PVC Wave Tile Making Machine:
1. Twin conical screws extruder SJSZ-80*156
2. Corresponding wave plate forming machine,
3. Tractor and cutting machine,
4. The die shape: coat hanger style flat plate die L=1000mm
5. Electrical control cabinet
Main technique parameter of PVC Wave Tile Making Machine:
Drawing velocity: 0.5-5mm/min
Drawing roller length: 1000mm
Drawing power: 2.2KW velocity is shifted by inverter
Cutting : shear style ( pneumatic )
Work pressure on gas route: 0.4-0.6Mpa
PVC Wave Sheet Machine /Corrugated sheet machine

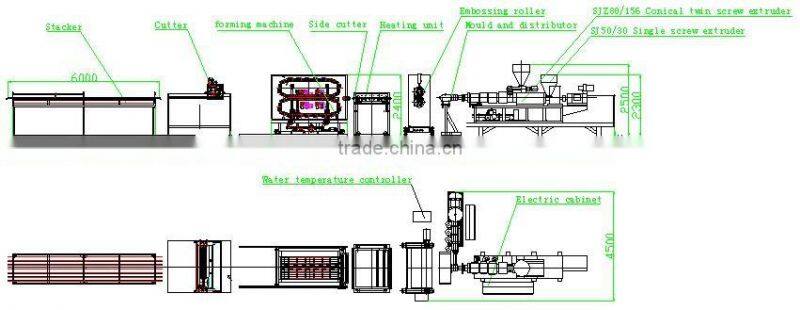

Processing flow:
ZJF700 Feeder+ SJSZ 80/156 conical twin-screw extruder+ Vacuum feeder + SJ50/30 single screw co-extruder+ Extrusion mould and flow distributor+ Embossing roller+ Heating unit+ Roofing tile forming machine+ Cutter+ Stacker
Photoes of PVC Wave Tile Making Machine:

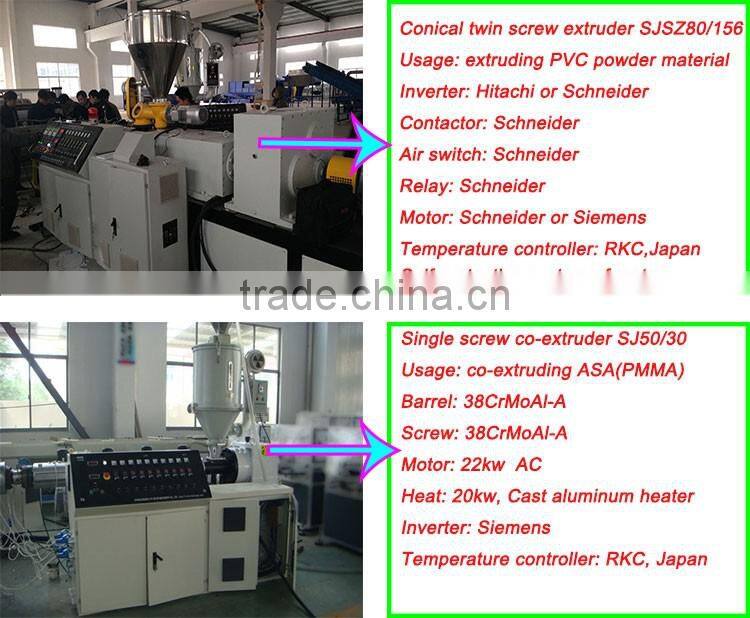

1. Conical twin-screw extruder and co-extruder

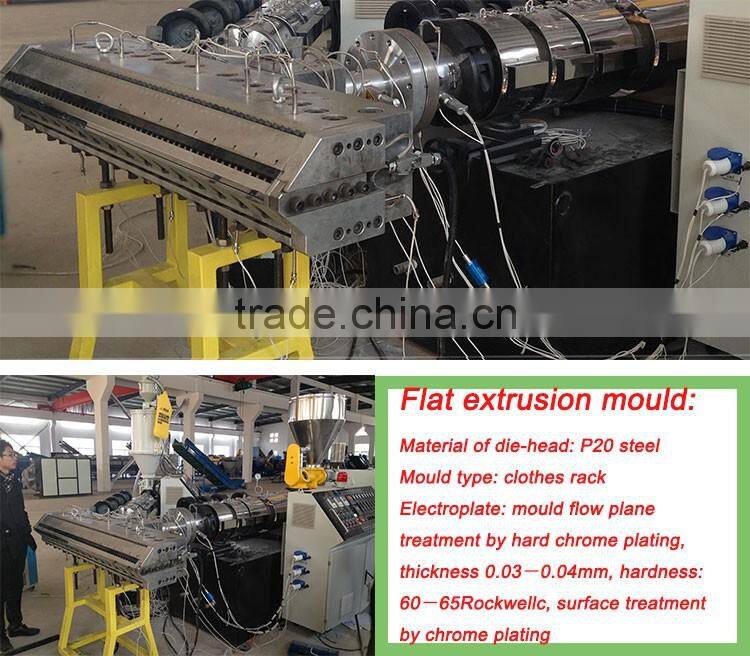

2.Flat extrusion mould

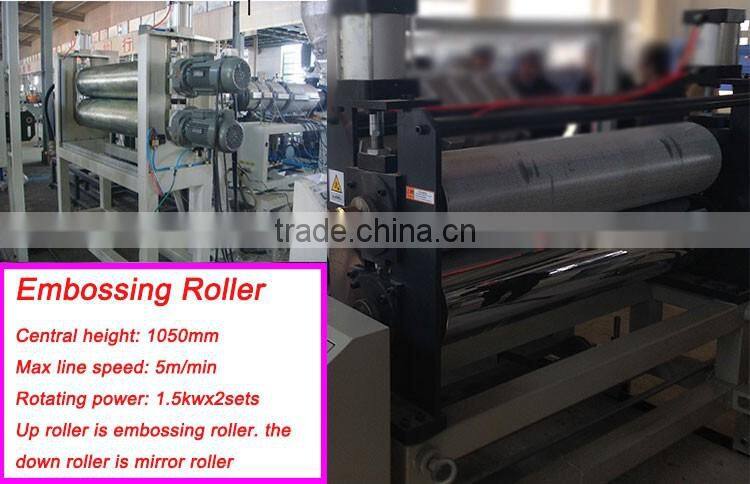

3. Embossing roller

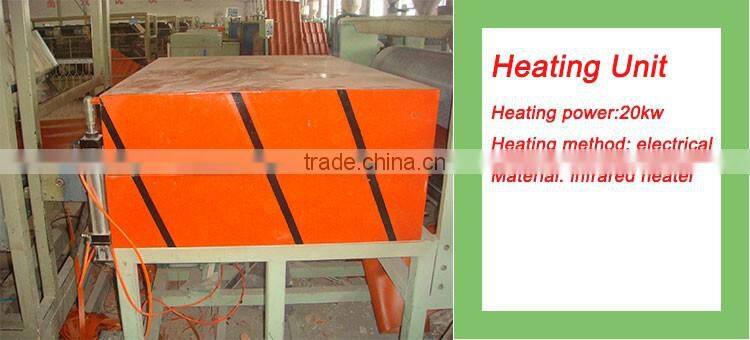

4.Heating unit

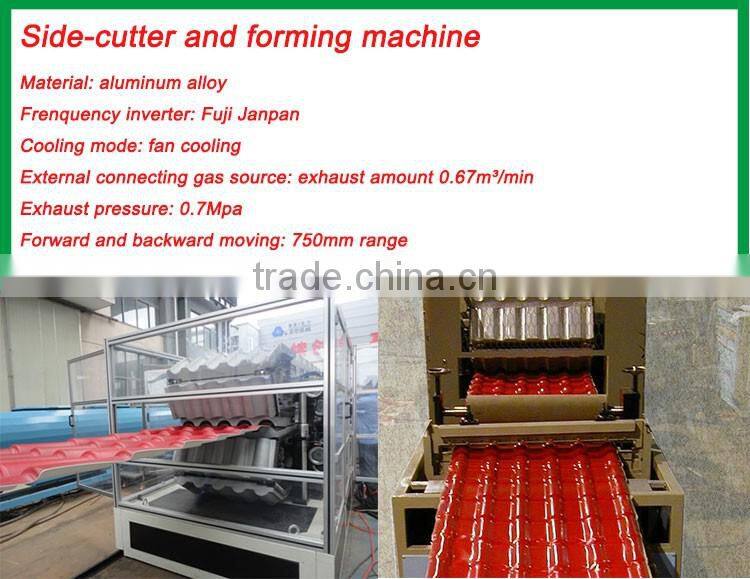

5. Forming machine:

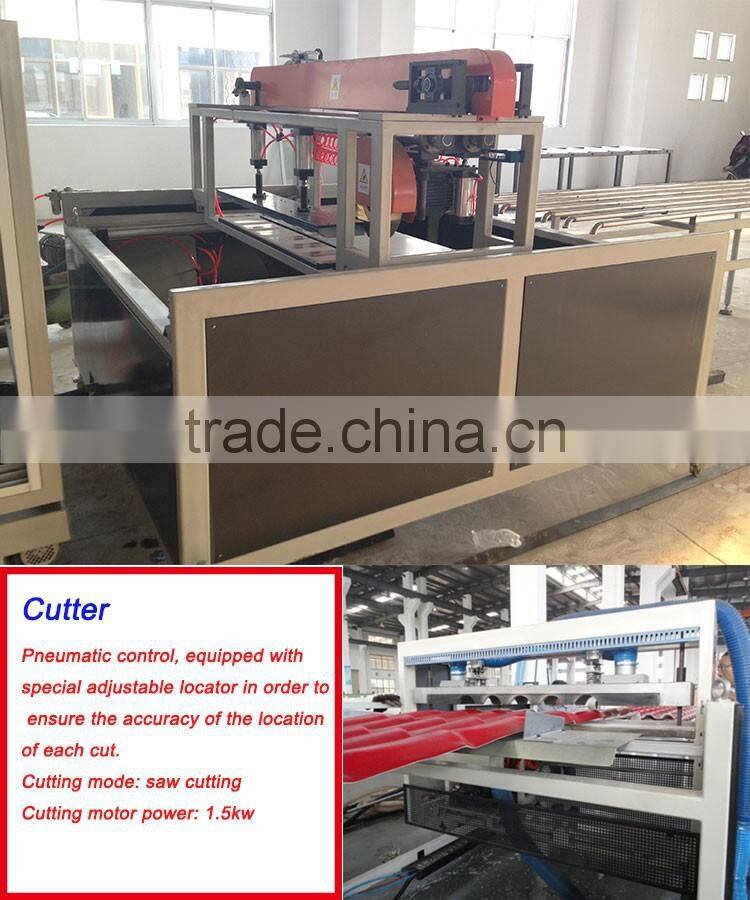

6. Cutter:

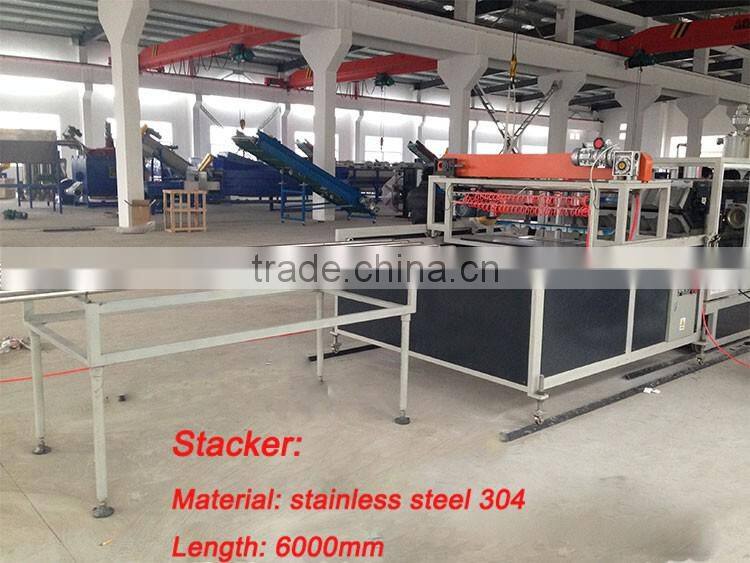

7. Stacker:

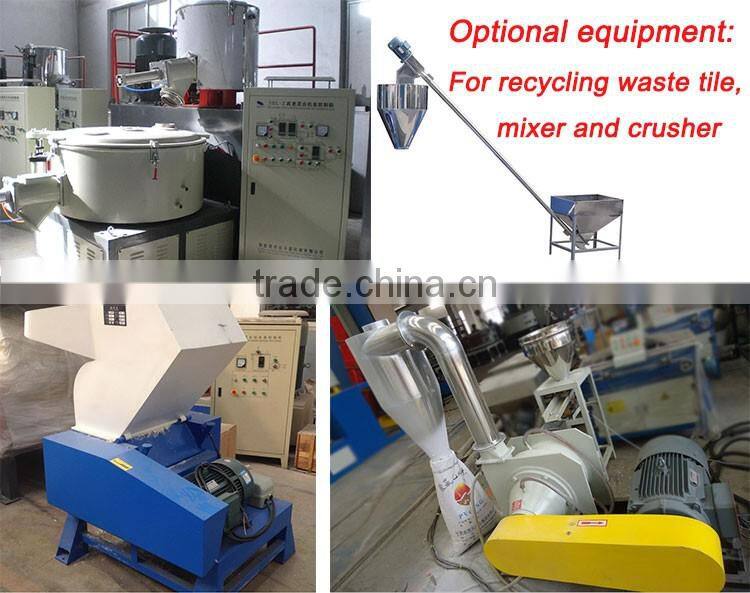

8. Optional equipment:
9. Final product:
10. Working flow and testing machine:
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Flame Cutting Machine | CG1-30 | 2 | 4.0 | Acceptable |
| Sawing Machine | GB4030 | 1 | 4.0 | Acceptable |
| Welding Machine | ZX7-400D, ZX7-500S, LGK8-63, NBC 380GF | 20 | 4.0 | Acceptable |
| Lathe | C6136A, CA6150A | 2 | 4.0 | Acceptable |
| Planing Machine | B665 | 1 | 4.0 | Acceptable |
| Radial Drilling Machine | Z9050*16/1, Z3040 | 3 | 4.0 | Acceptable |
| Bench Drilling Machine | ZS4116B | 2 | 4.0 | Acceptable |
| Shearing Machine | No Information | 1 | 4.0 | Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Slide Caliper | No Information | 20 | 4.0 | Acceptable |
| High Meter | No Information | 1 | 4.0 | Acceptable |
| Micrometer | No Information | 5 | 4.0 | Acceptable |
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| North America | USD 1,326,805 | 16.12 |
| South America | USD 1,459,321 | 17.73 |
| Eastern Europe | USD 795,918 | 9.67 |
| Southeast Asia | USD 397,547 | 4.83 |
| Africa | USD 2,652,787 | 32.23 |
| Oceania | USD 199,185 | 2.42 |
| Mid East | USD 544,055 | 6.61 |
| Western Europe | USD 132,515 | 1.61 |
| Northern Europe | USD 60,084 | 0.73 |
| Southern Europe | USD 238,693 | 2.9 |
| South Asia | USD 384,378 | 4.67 |
| Domestic Market | USD 39,507 | 0.48 |
Why choose us?
1.Low cost
All the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality
We choose our material very strict.
All the material come to our factory must pass the quality test
Substandard goods are returned to the supplier.
3.Engerneers available to serve oversea
4.Quick delivery
The company provide just in time delivery with its streamlined supply chain.
5.Cost saving
Se take strong attention to every detail in the manufacturing process.
The quality control in our factory is very strict.
All defective semi-manufactures must be treated again or reject.
All the machine must be checked out ,then delivered to our customer.
All about that pushing up the price,but get good quality machine.
What we want to do is give our customer a good quality product with stable working and long lived.
