PE plastic pipe extrusion machine / HDPE pipe production machine / PE pipe production line
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Other, Pipe, PE pipe making machine / plastic pipe extrusion line | Plastic Processed: | PE |
Screw Design: | Other, Single-screw, Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Horse Rider | Model Number: | SJ | Voltage: | 380v or according to customer request |
Power(W): | 40-80kw | Dimension(L*W*H): | 26*2*3 | Weight: | 8 ton |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
pe plastic water pipe making machine
Process flow for pe pipe production machine
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
Characteristics for pe pipe production machine
- Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h.Diameter: from 16 to 800mm
- Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate
Description for pe pipe production machine
This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Technical Parameter for pe pipe production machine
Pipe Range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
Extruder Power | AC30KW | DC75KW | DC110KW | DC110KW | DC160KW | DC160KW | DC280KW | DC335KW |
Extrusion Capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. Speed | 10m/min | 6m/min | 6m/min | 6m/min | 3m/min | 1.2m/min | 0.9m/min | 0.7m/min |

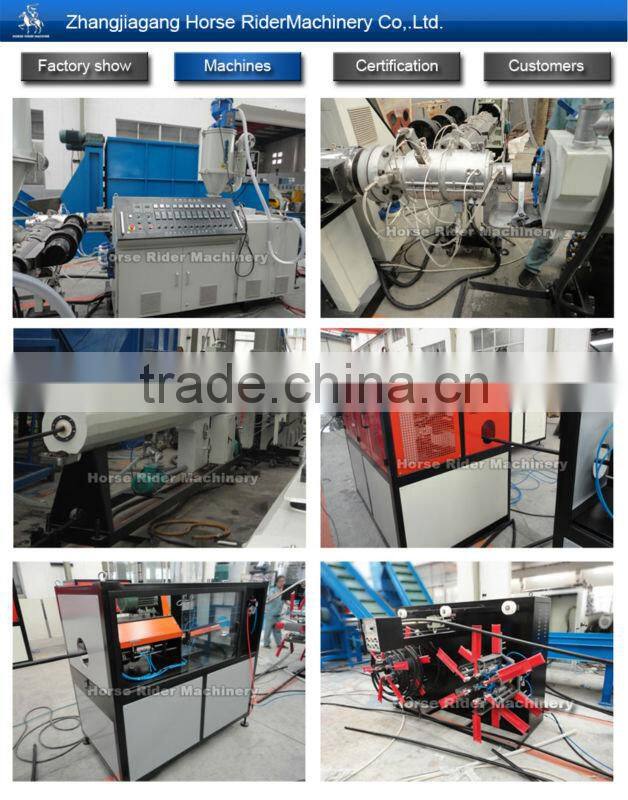

Reference photos of PE pipe making machine
