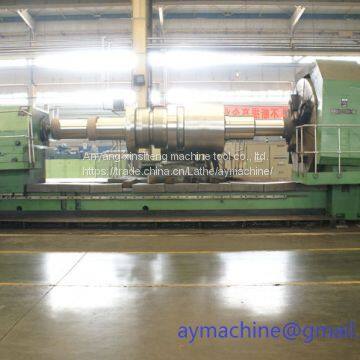

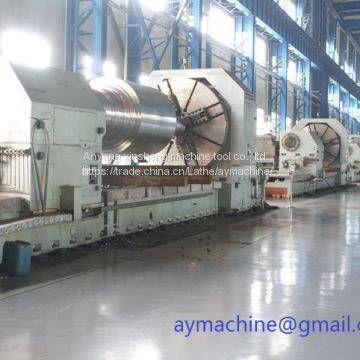

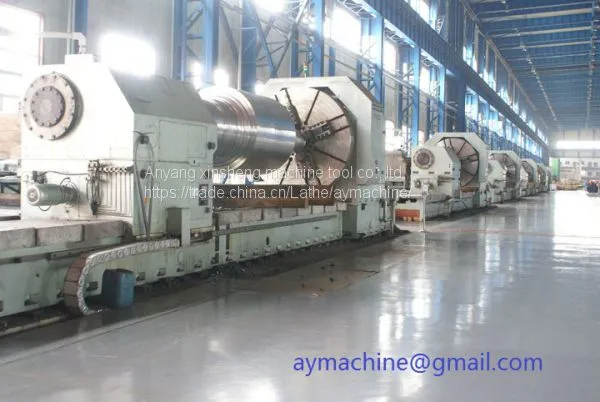

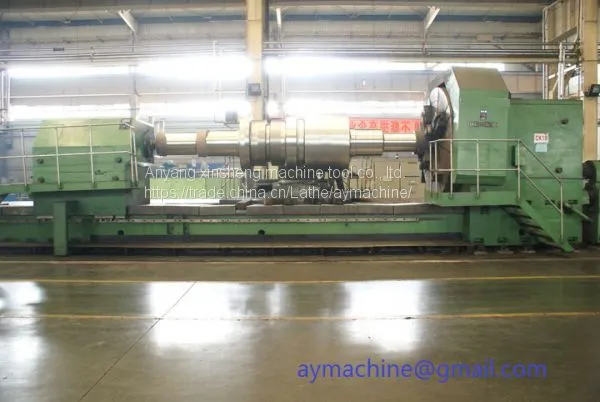

Help CenterHeavy Duty Lathe
US$ 35000 - 160000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
AY
Place of Origin:
China
Model Number:
C61160
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
90 days
Related Products
-
China Heavy Duty Heavy Cutting LatheUS$ 35000 - 160000MOQ: 1 Set -
32 Tons Heavy Duty Heavy Cutting LatheUS$ 100000 - 560000MOQ: 1 Set
-
China Large Type Heavy Duty Cnc LatheUS$ 50000 - 90000MOQ: 1 Set
-
China CNC Heavy Duty LatheUS$ 50000 - 90000MOQ: 1 Set
-
China Heavy Duty Cnc Lathe 16 TonsUS$ 70000 - 160000MOQ: 1 Set
Brand Name
AY
Place of Origin
China
Model Number
C61160
Type
Horizontal
Certification
ISO9001,CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
18000
Dimension(L*W*H)
6400*2360*2460
Voltage
380V
Condition
New
Power(W)
30kw
Automatic Grade
Semi-Automatic
CNC or Not
Normal
Max. Swing Diameter
1600mm
These machines are suitable for various turning works,such as turning of external and internal cylindrical surfaces,end faces,and turning of metric or inch threads,modular threads and diametrical pitch threads,etc.Motorized short taper turning could be done by the top slide independently,and long taper’s motorized turning could be done by top slide combined with longitudinal feed.Further more,these machines can also carry out drilling,trepanning and boring processes,etc.
Swing over bed :1250/1600/1800/2000MM
Max.turning dia :900/1250/1450/1650MM
Max.length of workpiece :3000-12000MM
Pan of guideway :1100MM(rectangular guideway)
Spindle bore :100MM
Range of spindle speeds :3.15-315r/min
Main motor power :30kw
Max weight of workpiece :16000kgs
