High output PP PET Strap Production Line
- 100 Set / Sets per Month
- Shanghai / PET Strap Production Line
- T/T Credit Card
Product Details
Condition: | New | Application: | Other, Strap | Plastic Processed: | Other, PET flake |
Screw Design: | Single-screw | Automatic Grade: | Auotomatic PET Strap Production Line | Place of Origin: | Jiangsu, China |
Brand Name: | HorseRider PET Strap Production Line | Model Number: | HRPS PET Strap Production Line | Voltage: | 380V,50HZ PET Strap Production Line |
Power(W): | base on capacity PET Strap Production Line | Dimension(L*W*H): | base on capacity PET Strap Production Line | Weight: | base on capacity PET Strap Production Line |
Certification: | CE&ISO PET Strap Production Line, CE&ISO 9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New type high output PET strap making machine with low power & low power consumption
PET Strap Production Line
Overview:
The series PP PET strap extrusion line is new equipment designed by HorseRider. By combining the characters of the same type of machines in domestic and overseas markets, the production line is of the most advanced technology in this field. It is of characters of high efficiency, high output, low power consumption and energy saving.
Features of PP PET Strap Production Line
1. Using the recycling bottle slices as raw materials by making them melt directly,
which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications
directly and doesn"t need to change the mould head
3. The products has the same transparency as made from new polyester slices, but
the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower
Characters of PET straps
PET Straps have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: high tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.
Partial technical parameters of PP PET Strap Production Line
Model number | HRPS |
Main motor | 30-90KW |
Motor drive | AC |
Power supply | 380V 50HZ or customized |
Strap width | max 19mm |
Strap thickness | 0.5-1.5mm |
Drying volume | 100kg/h |
Loading power | 3KW |
Daily output | 1000-2000 kg/day |
Worker | 2-3 |
Workshop size(L*W*H) | 25000*5000*6000mm |
More model number not list,If you are interested in our machines,please contact us at any time.
We are the manufacturer specialized in plastic processing machinery for many years,our machines widely exported to Europe,Africa,Middle East,America,Southeast Asia etc.
Sincerely welcome you come to visit our factory!

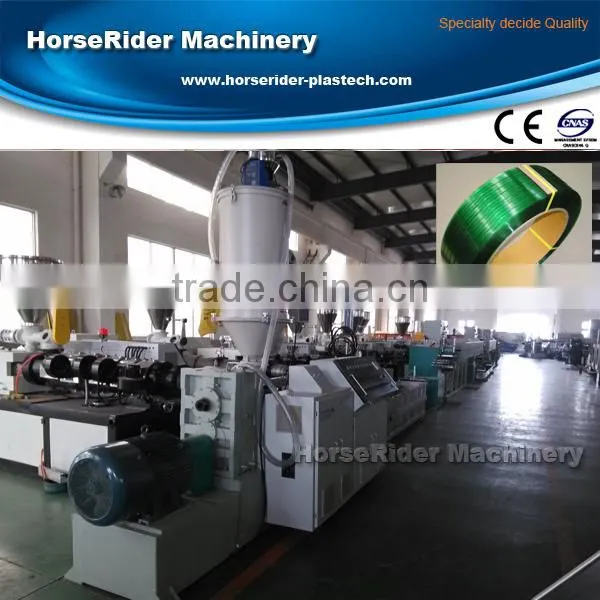

Reference pictures of PP PET Strap Production Line
Remark:all pictures of PET Strap Production Line only for reference
