Home > Products > PP/PE film recycling machine > Plastic film pelletizing recycling line/waste plastic pp pe granules recycling plant

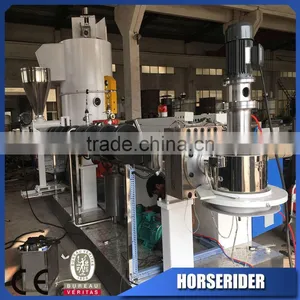

Plastic film pelletizing recycling line/waste plastic pp pe granules recycling plant
- 10 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Condition: | New | Application: | Granules | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Horserider machinery | Model Number: | SJ | Voltage: | 380V 50HZ |
Power(W): | it depends on | Dimension(L*W*H): | 8*2*2.5M | Weight: | 10 ton |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
recycled ps scrap pelletizer price pellet granulator machine mini pelletizing line/pe pp granulating machine/ldpe granules granulator plastic
New PE PP film granulation machine granulating pelletizing Plastic pelletizer machine

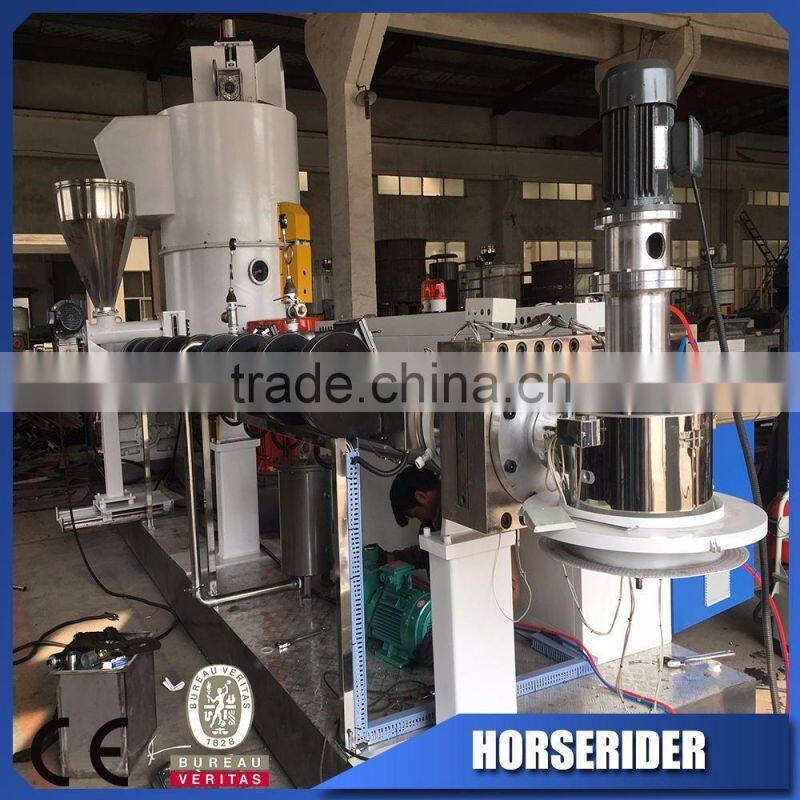

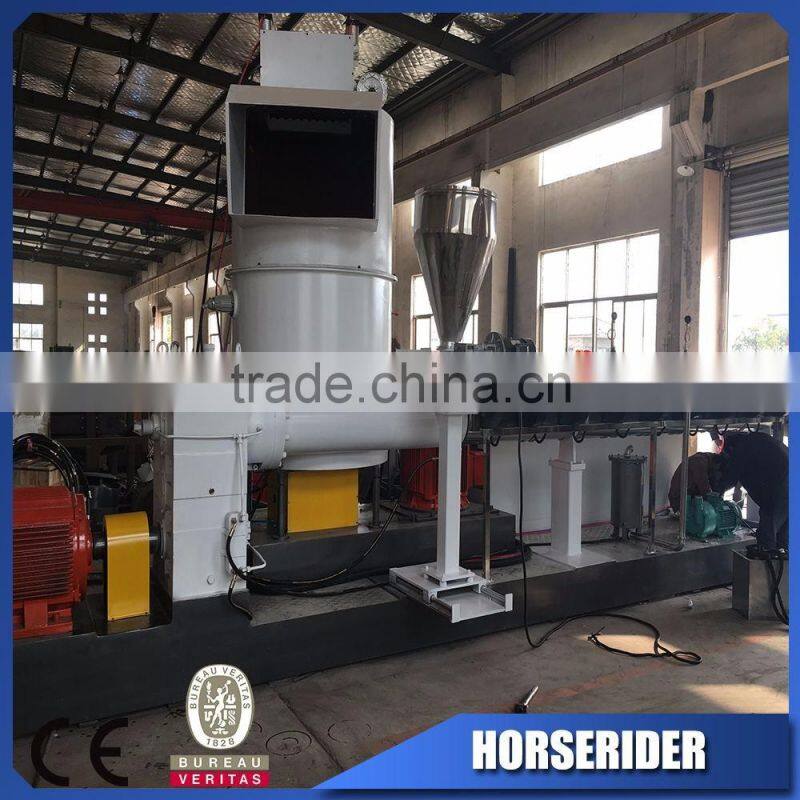

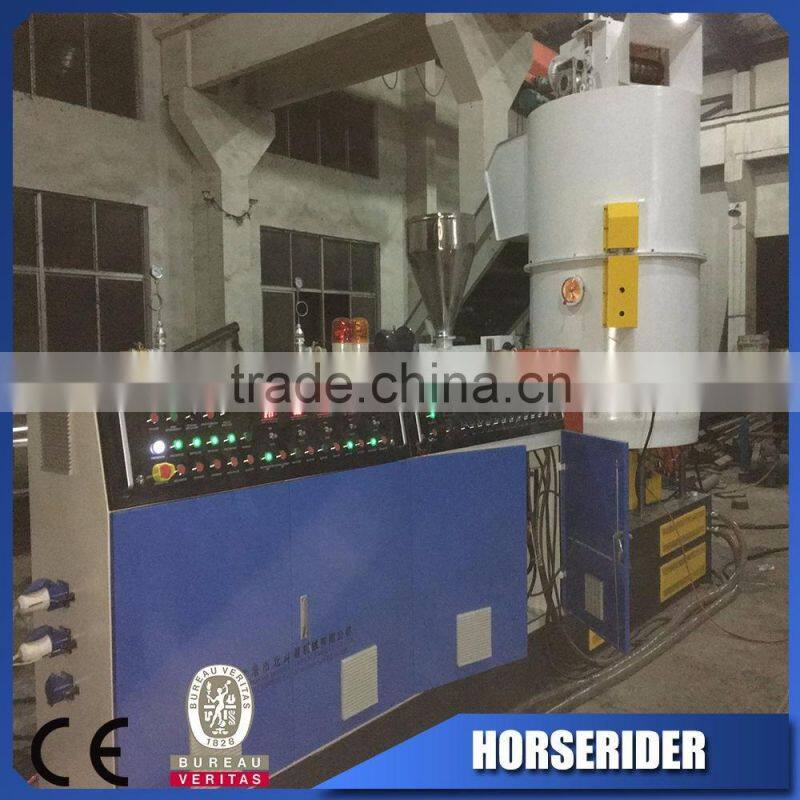

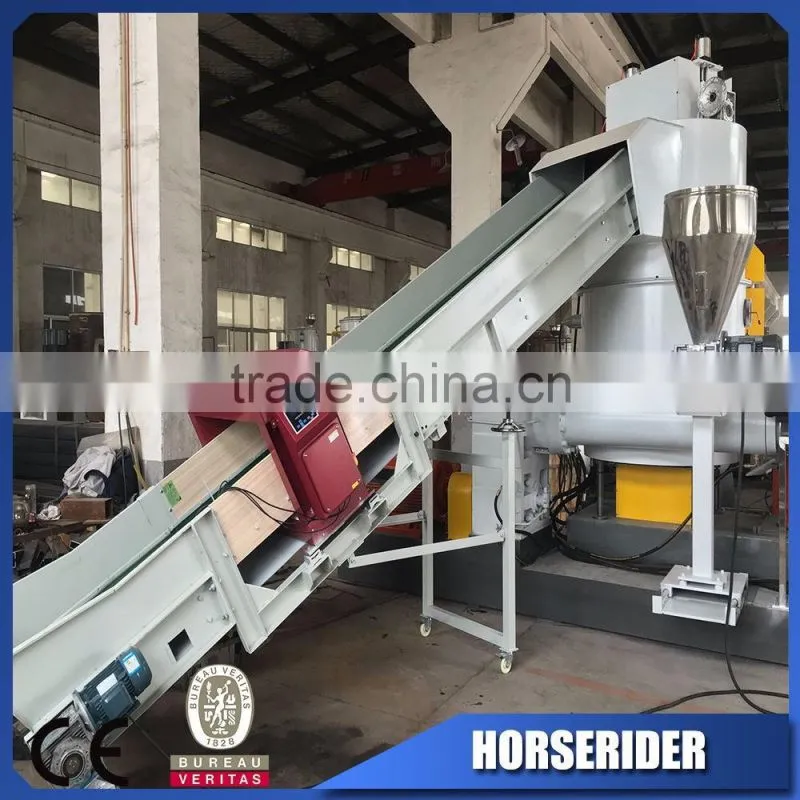

Plastic film pelletizing machine
The main technical parameter

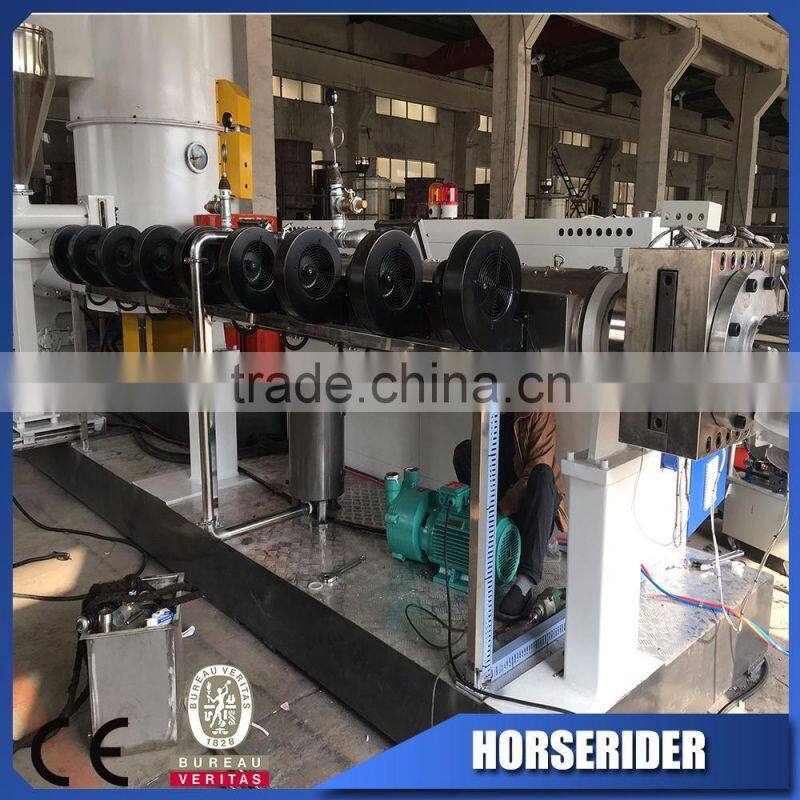

1. SJ 120/20 Single-screw extruder
Screw diameter | 100 mm |
Rotated speed of screw | 1-80 r/min |
L/D | 20:1 |
Main motor power | 75 kw |
Barrel heating power | 45 kw |
Extrusion capacity | 200-300kg/h |
Center height | 1000 mm |
Weight | 3500 kg |
Dimension | 3000 x 1600 x 2250 mm |
Extruder speed adjusting mode | By electromagnetism |
Screw core temperature adjusting | Oil heating |
Barrel temperature adjusting mode | Heating: cast aluminum heater Cooling: 5 sections by air |
Material of screw and barrel
| 38CrMoAlA Azotizing on surface Chrome plated |
Kind of drive | Hard tooth face gearbox |
2. Hydraulic change net system
Motor power | 3 kw |
Material | Mould steel |
3. SJ 120/10 Single-screw extruder
Screw diameter | 100 mm |
Rotated speed of screw | 1-80 r/min |
L/D | 10:1 |
Main motor power | 45 kw |
Barrel heating power | 22kw |
Extrusion capacity | 200-300kg/h |
Center height | 700 mm |
Weight | 2300 kg |
Extruder speed adjusting mode | By electromagnetism |
Screw core temperature adjusting | Oil heating |
Barrel temperature adjusting mode
| Heating: cast aluminum heater Cooling: 3 sections by air |
Material of screw and barrel
| 38CrMoAlA Azotizing on surface Chrome plated |
Kind of drive | Hard tooth face gearbox |
4. Hydraulic change net system
Motor power | 3 kw |
Material | Mould steel |
5. Mould
Material | Mould steel |
6. Cooling flume
Material | Stainless steel |
Weight | 150 kg |
Dimension | 4000 x 400 x 450 mm |
7. Blower
Motor power | 1.5kw |
Weight | 50 kg |
Dimension | 400 x 400 x 600 mm |

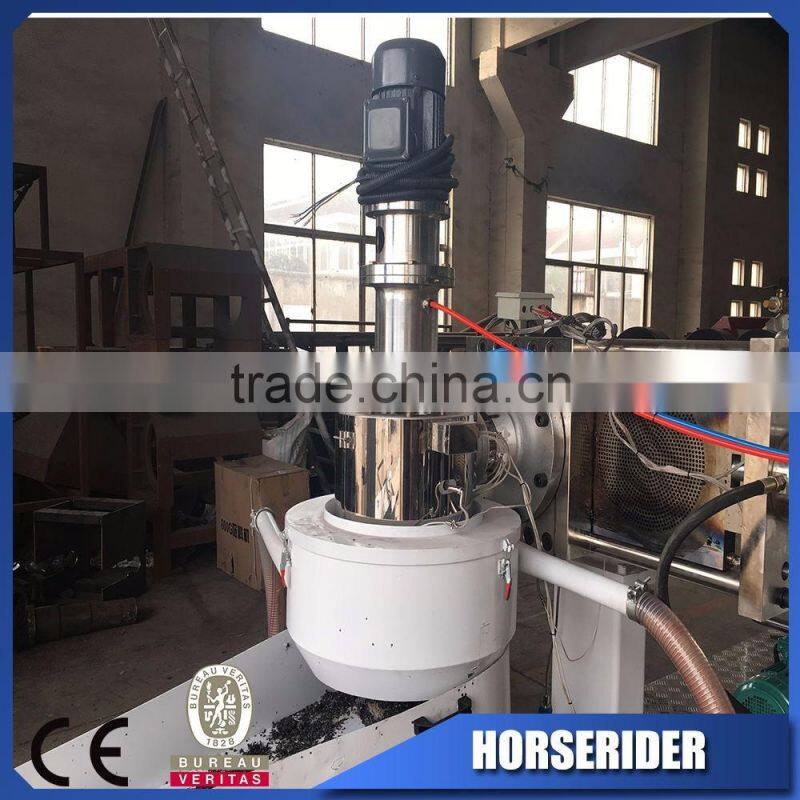

8. Pelletizer
Output | 400 -500kg/h |
Motor power | 5.5kw |
Pelletizing mode | Pelletize with water |
Quantity of pellet blade | 3 pcs. |
9. Storage bunker
Cubage | 1.5m3 |
Power of mix motor | 1.5kw |
Material | Stainless steel |
