High output 100-1500kg/h plastic mixing machine supplier

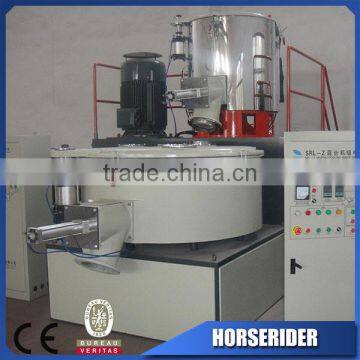

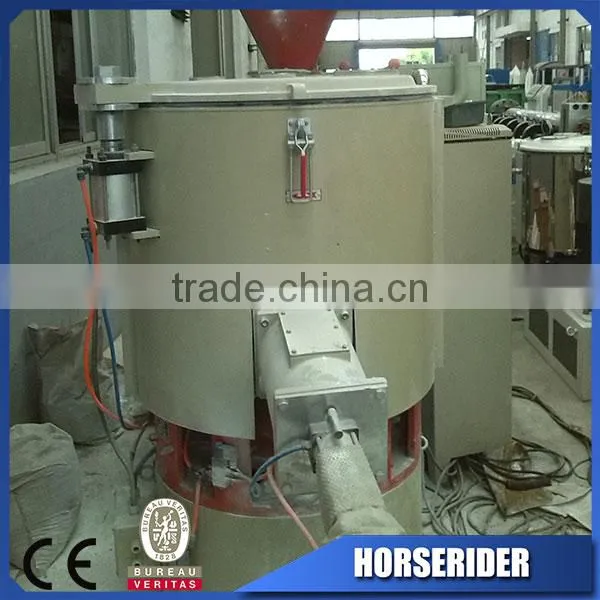

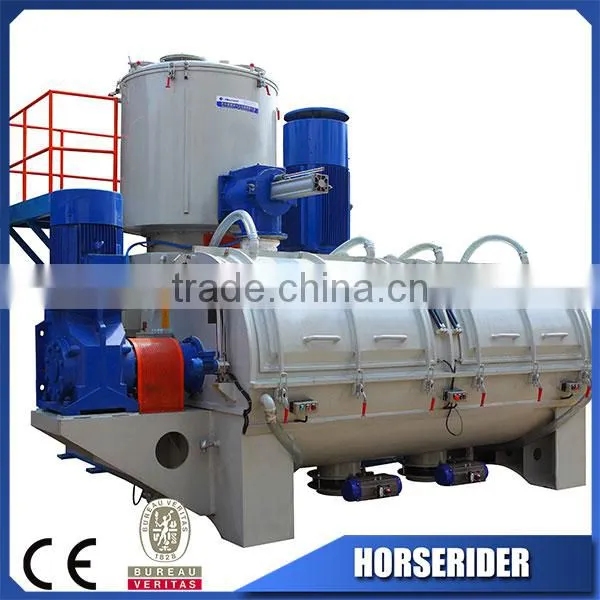

SRL-Z series plastic poweder mixer unit is applicable for mixing,coloring,and drying of various resin powder.The mixer unit combines heating mixing and cooling mixing craft together.The materials after heating mixing can be got into cooling mixer automatically for cooling,exhausts remaining gases and prevent agglomeration.
The mixer unit is designed by imported advanced technology.Adopting PLC control and automatic computer control,it features high automatic level and good quality mixing result.Heating mixing has such functions as
self-friction and electric heating.

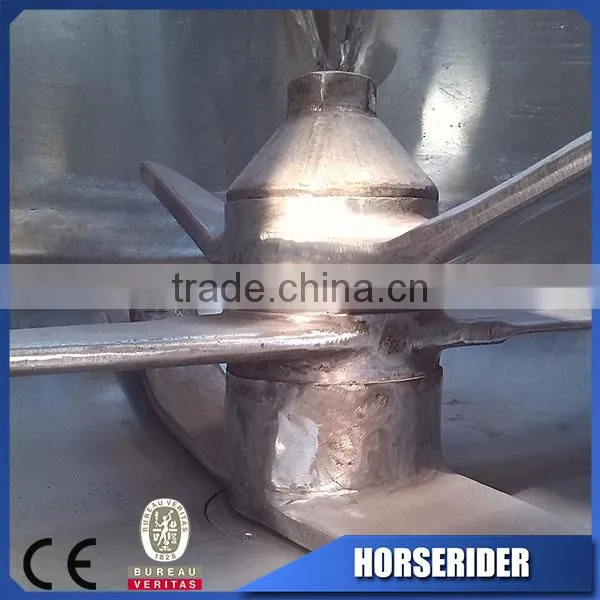

The vanes has passed the test of dynamic and static equilibrium.The cover adopts double concave-convex seal.Main axis seal adopts special technology of our company,also equipped with pulse dust catching device.Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing pvc pipe,plate and special profile etc .
Main technical parameter of PVC mixing machine
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Mixed time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-15 |
| Motor power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Dimension(L*W*H)(m) | 1.95*1.6*1.8 | 4.58*2.24*2.47 | 4.8*2.64*2.48 | 4.6*3*4 | 5.17*3.2*4.48 |
We are the manufacturer specialized in plastic machine manufacture for many years,our products are exported to many countries.If you are interested in our products,please contact us at any time.
Packing Size: according to specific production line size
Every HorseRider product is strongly packed by wooden box with film inside.
Packing step 1: cover the machine with film, so that moistureproof
Packing step 2: fix machine with a wire rope, in order to protect machine from damage
ABOUT HorseRider
Since 2000
Specializing in plastic machinery
Consecutive sales increasement of 8 years
Passed the ISO9001:2008 and international certificate as CE,GOST,GS,ETL
Export to more than 15 countries in Europe,the Middle East,Southeast Asia,Africa,South America and areas etc
Our mission is to turn waste into treasure
a. 1 year warranty
b. 1%-2%spare parts
c. Offer technical documents and formulation
d. Arrangement for inspection, installation and testing work
Q:What's my consideration when i choose PVC pipe production line?
A:The standard size of PVC pipe.
The capacity you want.
Q:Can i be a distributor of HorseRider?
A: Of course you can.
Q:What are the benefits of being a HorseRider distributor?
A: Special discount .
Marketing protection.
Priority of launching new design.
Point to point technical supports and after sales services.
Q: How can i become a distributor of HorseRider?
A: Contact us immediately for further details by sending us an inquiry.
