Plastic Mixer Machinery
US$ 1,800 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Mixing
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pvc Mixer / Powder Mixer MachineUS$ 1,800 - 15,000MOQ: 1 Set -
Mixing Machine / Plastic MixerUS$ 1,800 - 15,000MOQ: 1 Set
-
Plastic Mixing Machine / Plastic High Speed MixerUS$ 1,800 - 15,000MOQ: 1 Set
-
High Speed Mixer / Plastic Mixing MachineUS$ 1,800 - 15,000MOQ: 1 Set
-
Best Price and High Output 100-1500kg/h Plastic Resin Mixing MachineUS$ 5,500 - 12,500MOQ: 1 Set
Condition
New
Application
Mixing
Automatic Grade
Automatic
Production Capacity
200-1500kg/h
Place of Origin
Jiangsu, China
Brand Name
HORSERIDER
Model Number
SRL-Z
Voltage
380V
Power(W)
According to the specific models
Dimension(L*W*H)
According to the specific models
Weight
1TON
Certification
CE&ISO9001
Warranty
one year after installation
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
- SRL-Z series mixer units is applicable for mixing,coloring and drying of various resin such as polypropylene,polyvinyl chloride etc and in the craft of engineering plastics such as ABS,polycarbonate etc before forming and processing as well as in the mixing as phenolic resin.
- The unit combines heating mixing and cooling mixing craft together.The materials after heating mixing can be got into cool mixer for cooling automatically ,exhaust remaining gases and prevent agglomeration.
- This unit is developed by importing and absorbing advanced foreign technology.By adopting PLC control,it features high automatic level,good mixing result.Heating mixing has such functions as self-friction,and electric heating,The vane has passed the test of dynamic and static equilibrium. The cover adopts double concave-convex seal.Main axis seal adopts special tech of our company,also equipped with pulse dust catching device.Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device,overcomes the deadly weakness causing by use of retarder.that makes it running smoothly even more.This machine has come up to the same kind of product level in the world.That is an ideal equipment for producing plates and special-shaped material etc.

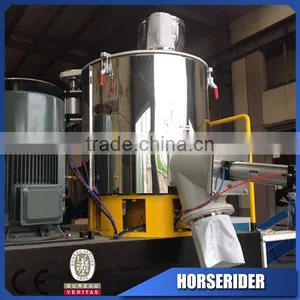

Detailed Images
Horizontal mixer
Parameters
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Mixed time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-15 |
| Motor power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Dimension(L*W*H)(m) | 1.95*1.6*1.8 | 4.58*2.24*2.47 | 4.8*2.64*2.48 | 4.6*3*4 | 5.17*3.2*4.48 |
Packaging & Shipping
Company Information
Our Services
Tel / Whatsapp / Wechat : +86-13862218472
QQ or Skype: 563589417
If you are interested in our machine,please contact me.
I'm glad to sever you!
FAQ
Why choose us?
1.Low cost
- All the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality
- We choose our material very strict.
- All the material come to our factory must pass the quality test
- Substandard goods are returned to the supplier.
3. Engerneers available to serve oversea
4.Quick delivery
- The company provide just in time delivery with its streamlined supply chain.
5.Cost saving
- Se take strong attention to every detail in the manufacturing process.
- The quality control in our factory is very strict.
- All defective semi-manufactures must be treated again or reject.
- All the machine must be checked out ,then delivered to our customer.
- All about that pushing up the price,but get good quality machine.
- What we want to do is give our customer a good quality product with stable working and long lived.
