Specifications
abs pipe machine1.pipe diameter from 12-400mm
2.All motors adopt siemens motor
3.ABB inverter
4.ce certificate

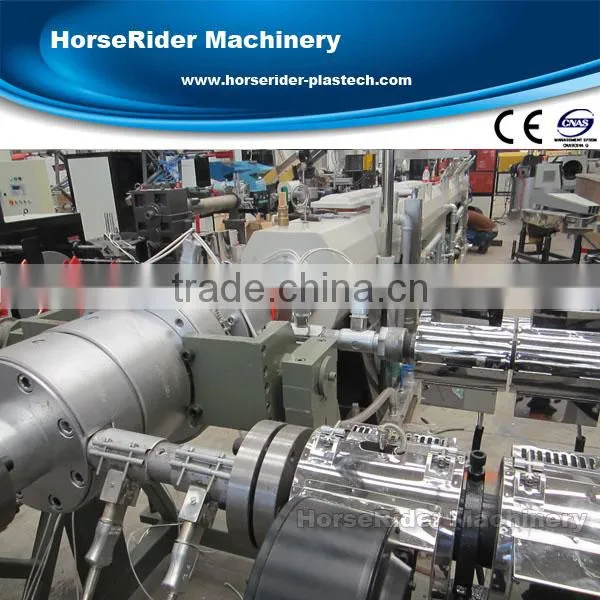

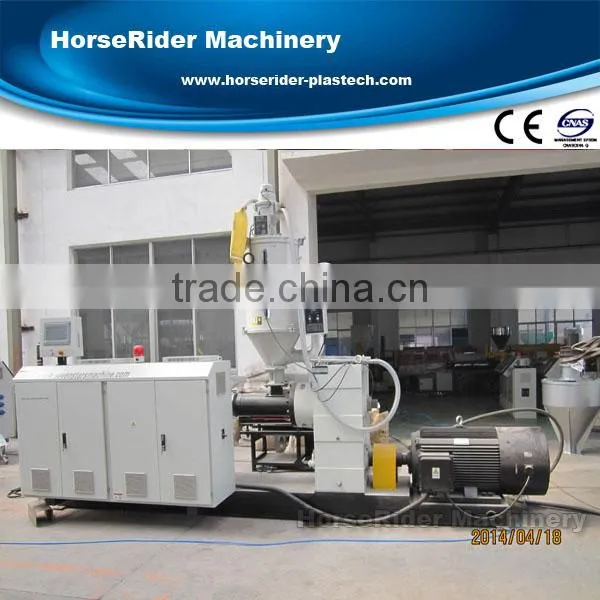

ABS pipe extruder making machinery

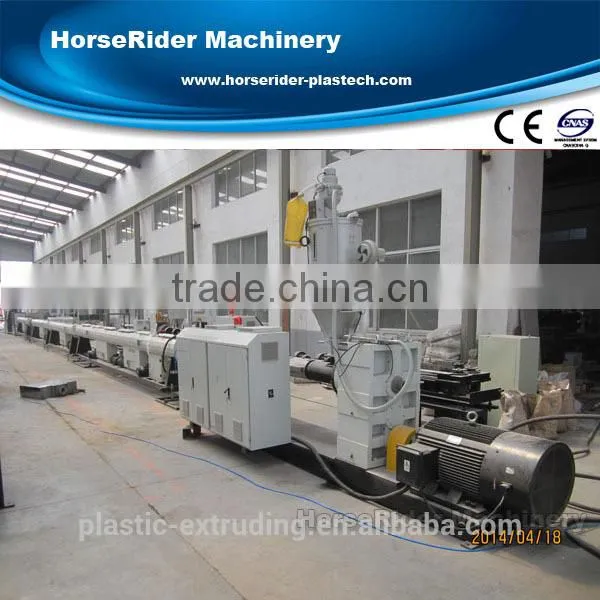

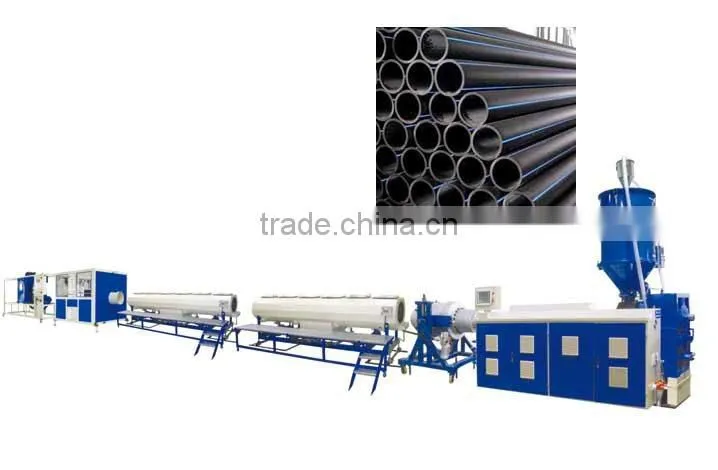

Process flow for ABS pipe extruding line

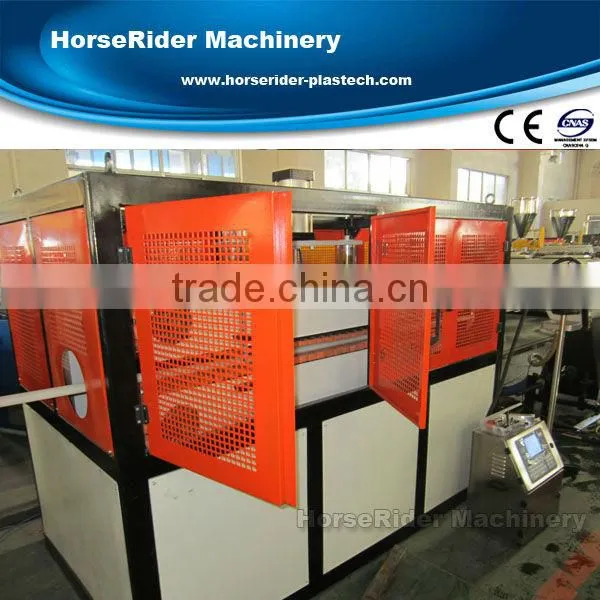

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
Technical parameter for ABS pipe extruding line
Model number |
ABS-16/63 |
ABS-20/110 |
ABS-50/160 |
ABS-75/250 |
ABS-110/315 |
ABS-200/450 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
Max output |
150kg/h |
200kg/h |
350kg/h |
350kg/h |
350kg/h |
450kg/h |
Production rate |
1-15m/min |
1.2-12m/min |
0.6-8m/min |
0.5-4m/min |
0.4-3.7m/min |
0.3-3m/min |
Extruder model |
SJ-65/30 |
SJ-65/33 |
SJ-75/33 |
SJ-75/33 |
SJ-75/33 |
SJ-90/33 |
Installed power |
85kw |
110kw |
125kw |
180kw |
260kw |
325kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
Installation area |
35x3.0x2.0m |
38*3.1*2.2m |
38*3.1*2.2m |
40*3.2*2.4m |
42*3.2*2.4m |
52*3.3*2.6 m |
Please have no hesitation to contact with me if you are interested in my product, I will show you my attractive offer very soon.
