Specifications
abs pipe machine1.pipe diameter from 12-400mm
2.All motors adopt siemens motor
3.ABB inverter
4.ce certificate

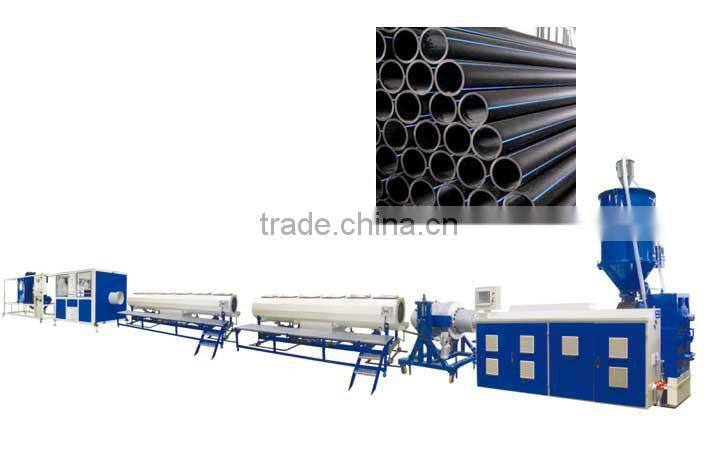

ABS pipe extruder making machinery
Process flow for ABS pipe extruding line

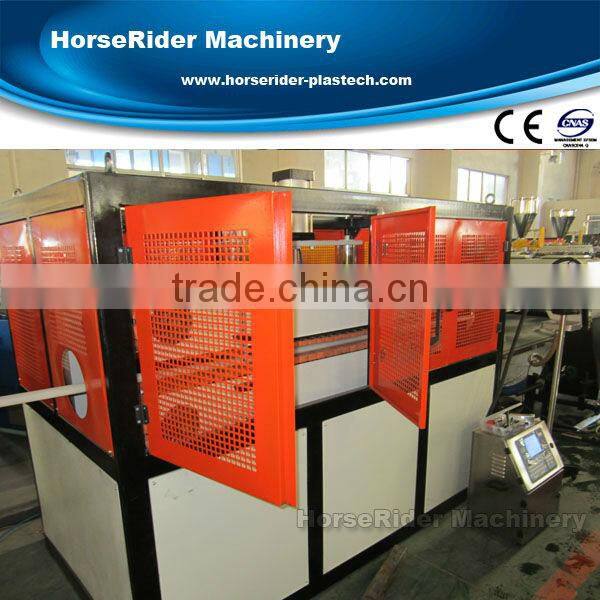

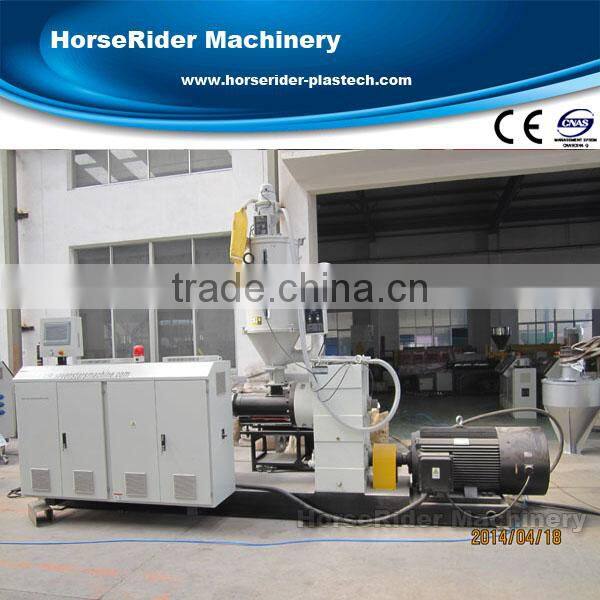

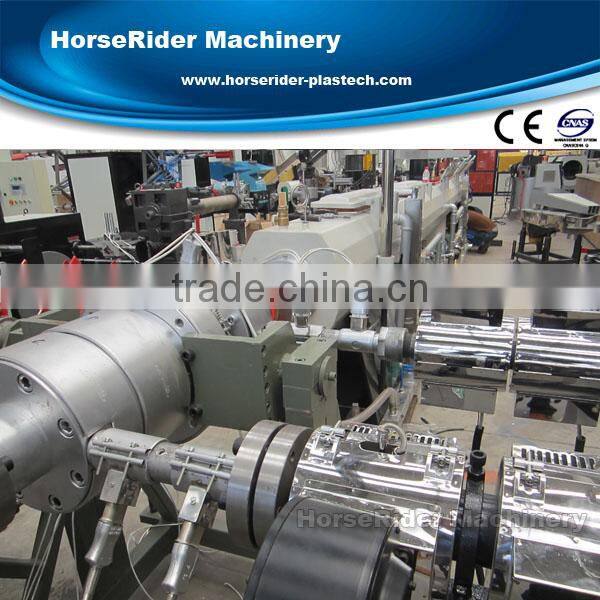

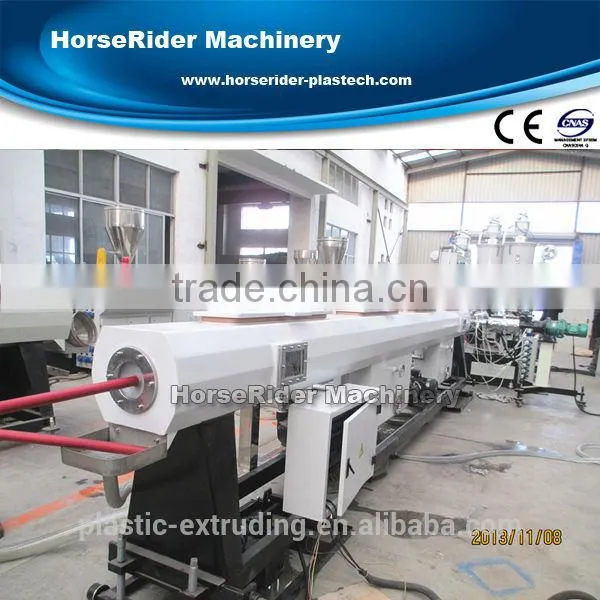

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
Technical parameter for ABS pipe extruding line
Model number | ABS-16/63 | ABS-20/110 | ABS-50/160 | ABS-75/250 | ABS-110/315 | ABS-200/450 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm |
Max output | 150kg/h | 200kg/h | 350kg/h | 350kg/h | 350kg/h | 450kg/h |
Production rate | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min |
Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 |
Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm |
Installation area | 35x3.0x2.0m | 38*3.1*2.2m | 38*3.1*2.2m | 40*3.2*2.4m | 42*3.2*2.4m | 52*3.3*2.6 m |
Please have no hesitation to contact with me if you are interested in my product, I will show you my attractive offer very soon.
