1.Well-plasticizing and mixing
2.Low shearing velocity
3.High productivity

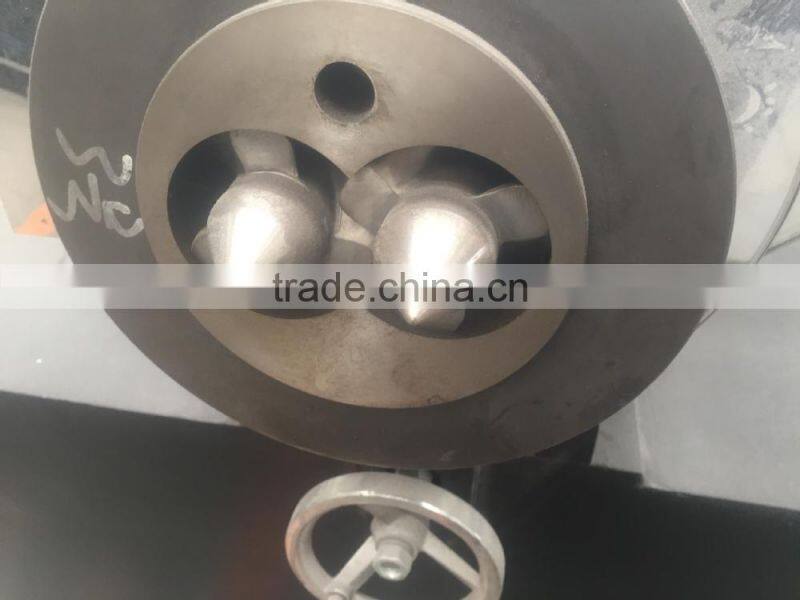

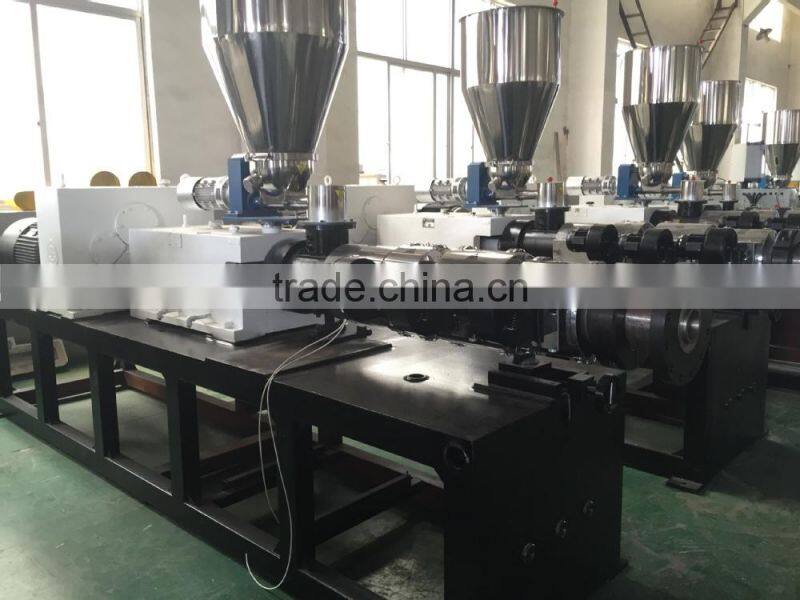

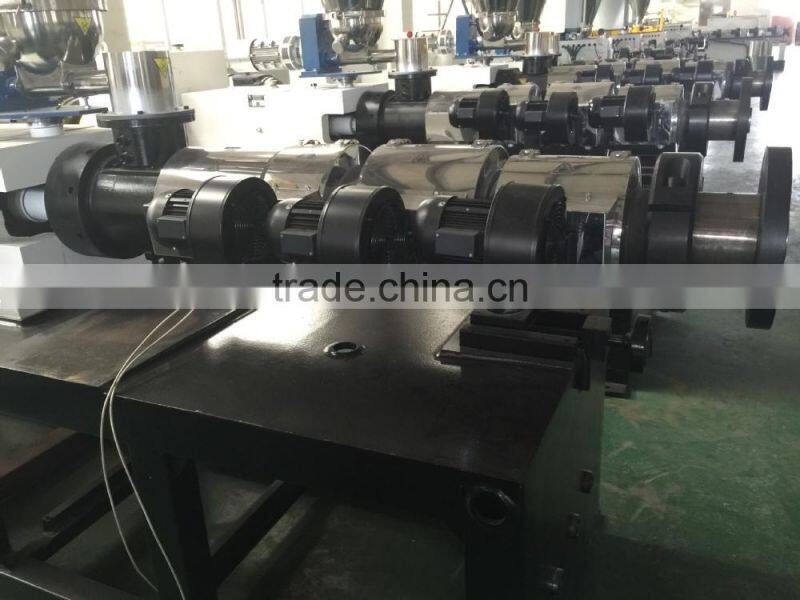

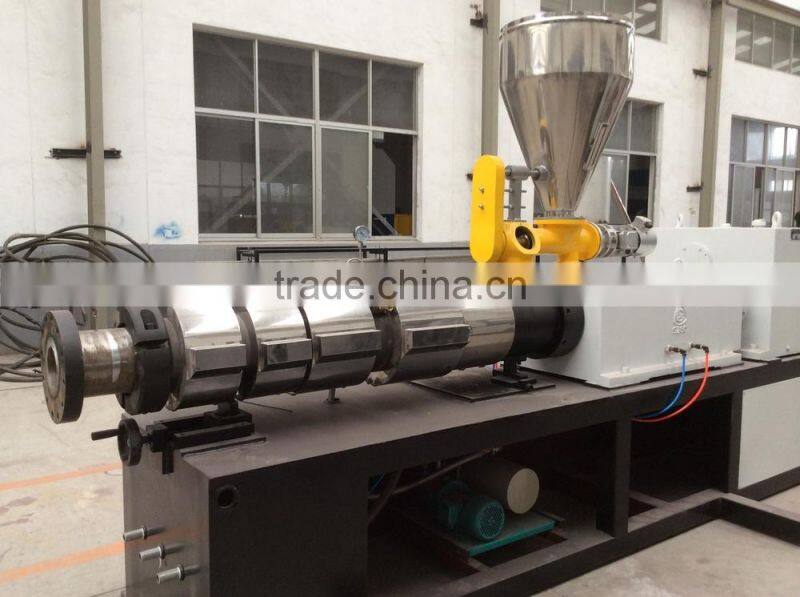

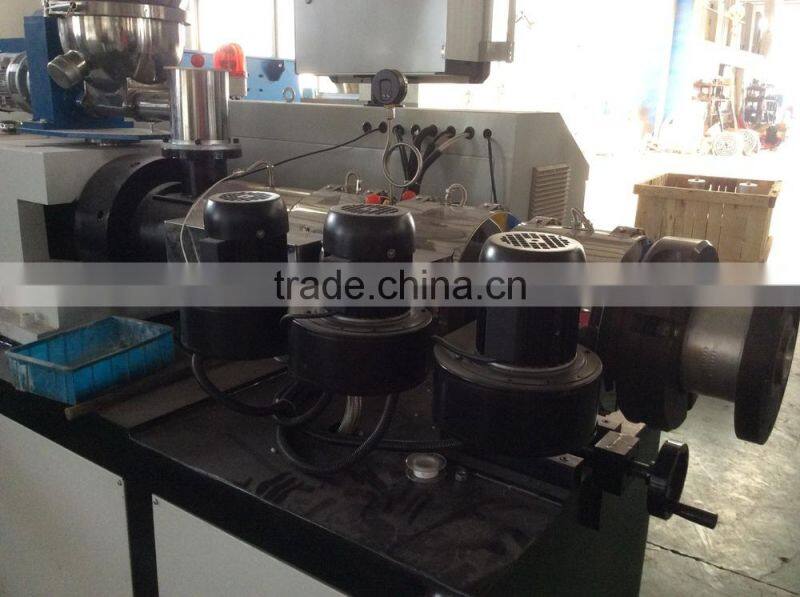

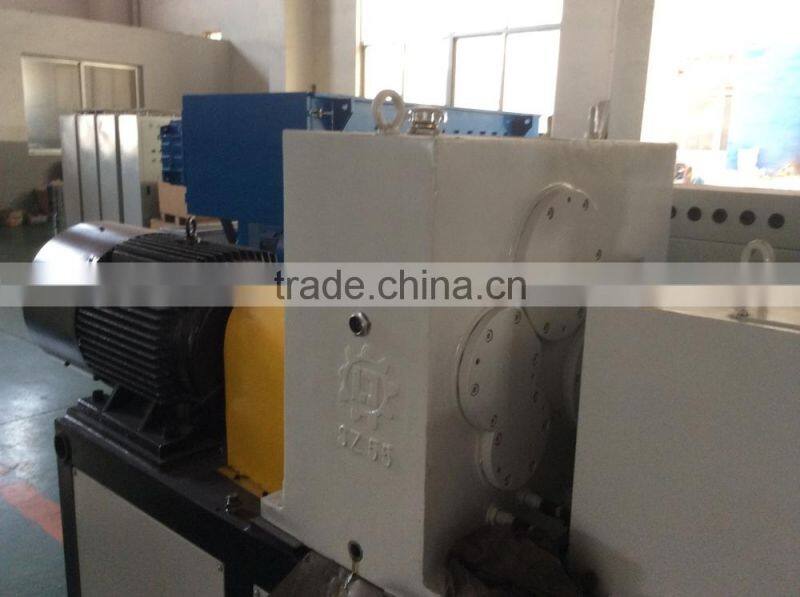

SJSZ series plastic conical twin-screw extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum deaerating, heating, cooling and electro control components. It is mainly used in plasticizing, extruding and forming PVC pipe, plate, sheet, film, profile, and granule etc.
double screw extruder
Model/Specification |
SJZ-45 |
SJZ-55 |
SJZ-65 |
SJZ-80 |
SJZ-92 |
Screw diameter(mm) |
45/90 |
55/110 |
65/132 |
80/156 |
92/188 |
Screw speed(r/min) |
4-45.5 |
1-40 |
1-35 |
1-37 |
1-33 |
Screw effective length(mm) |
1070 |
1200 |
1441 |
1800 |
2500 |
Main motor(KW) |
15 |
30 |
37 |
55 |
110 |
Barrel Heating Power(KW) |
9.6 |
17.5 |
23 |
33 |
73.1 |
Production capacity(kg/h) |
100 |
180 |
250 |
400 |
800 |
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1100 |
Net weight(kg) |
3200 |
3500 |
4000 |
5000 |
7000 |
Dimension(L*W*H) |
3360*1290*2127 |
3620*1350*2157 |
4235*1520*2450 |
4750*1550*2460 |
4810*1600*2650
|
