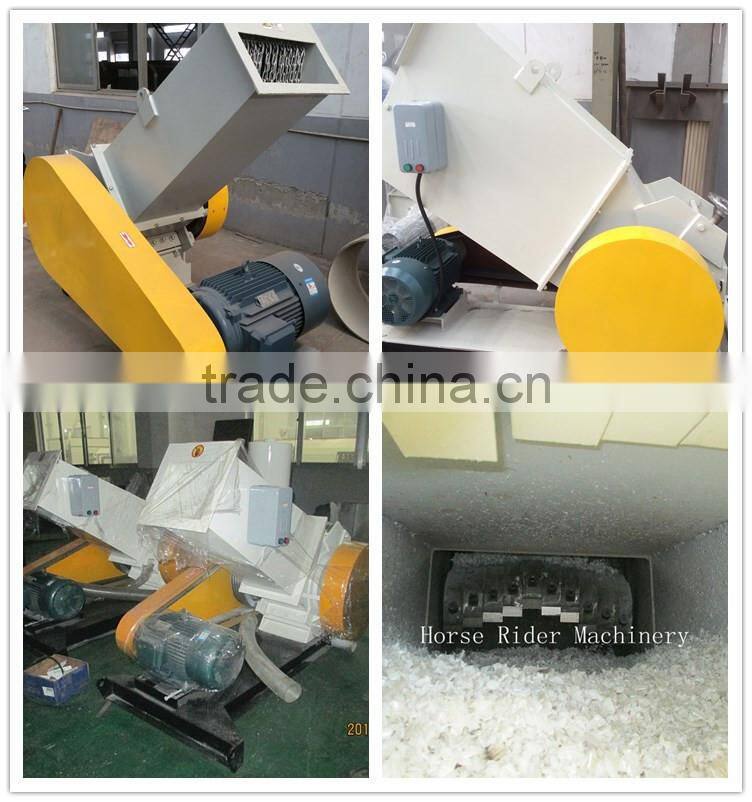

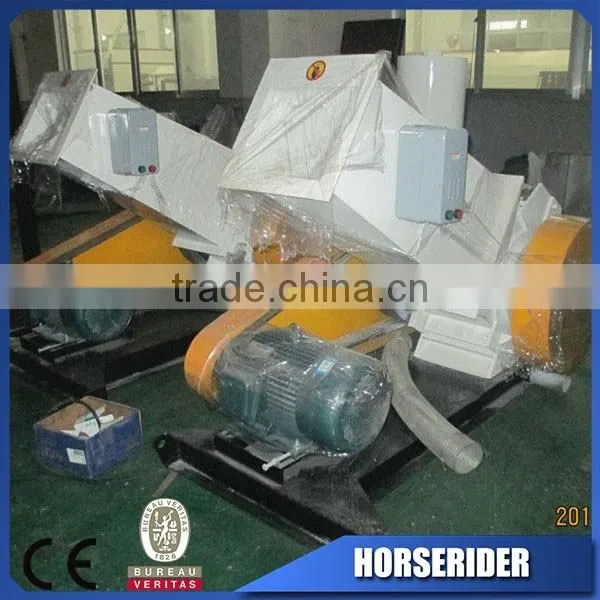

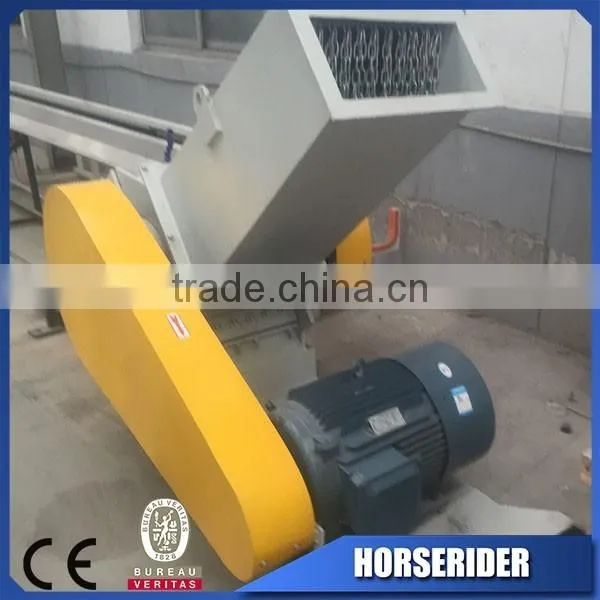

SWP Series PVC pipe crushing machine
- 200 Set / Sets per Month
- ShangHai
- T/T L/C Credit Card
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Horserider |
Model Number: | swp-500 | Dimension(L*W*H): | 1750x1050x1680mm | Certification: | CE&ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description: this type of plastic crusher mainly used to process PVC pipe and others.
NO | Item | SWP-500 |
1 | Motor power | 37kw |
2 | size of feed inlet | 500×270mm |
3 | Suitable pipe diameter | <160mm |
4 | Dynamic blade diameter | 400mm |
5 | Quantity of rotary blade | 5pcs |
6 | Dynamic rotating speed | 570r/min |
7 | Quantity of static blade | 2pcs |
8 | Bearing quantity | Two bearing |
9 | Bearing brand | NSK |
10 | Hole diameter of screening sieve | 14mm |
11 | Production Capacity | 150-300kg/h |
12 | weight | 1300kg |
13 | Motor for air blower for sucking | 3kw |
14 | Dimension | 1750x1050x1680mm |
details:
