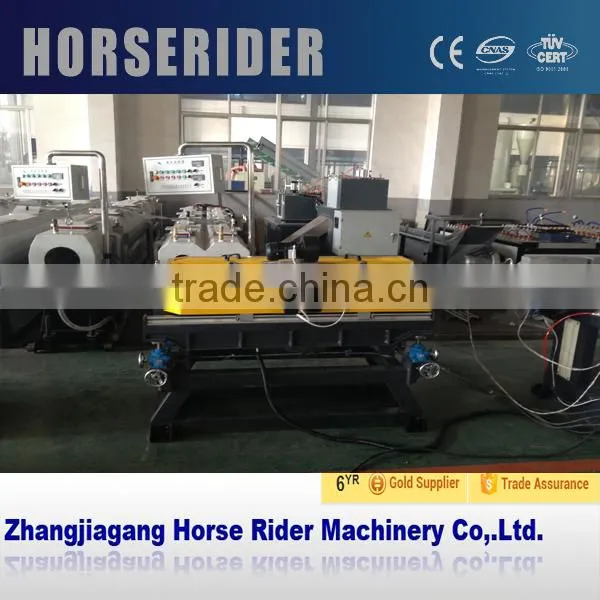

New Technology and High Output Telescopic Pipe Making Machine
- 50 Set / Sets per Month
- Shanghai China
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PP |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Horserider | Model Number: | PIPE EXTRUSION LINE | Voltage: | 380V/50Hz/3P or Customized |
Power(W): | 37kw | Dimension(L*W*H): | 10*1*3 | Weight: | Depend on the Model |
Certification: | CE / ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New Technology and High Output Single-wall corrugated pipe making Line
The Features and Application
Single-wall corrugated pipe machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.It is mainly for the production of raw materials to PVC.PP.PE small diameter single wall corrugated pipe. Die by the corresponding forming a homogeneous single-wallcorrugated bellows products. Threading pipe for wire and cable, washing machinedrains, vacuum cleaners, ventilation pipe, prestressed concrete special tubes.
Model 1
Model 2
The Production Line Application
1. The PVC/PE single wall corrugated Tube production line can be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
The Final Product Application
Final product widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
The Parameter
Host machine model name | LGSJ-30/25 | LGSJ-45/25 | LGSJ-65/25 | LGSJ-90/25 |
Module logarithm | 40 | 42 | 42 | 42 |
Production pipe diameter range | Φ4-10 | Φ4-10 | Φ20-63 | Φ50-160 |
Production speed | 5-10 | 3-15 | 2-8 | 0.3-8 |
Production capacity | 8 | 30 | 60 | 80 |
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
The Production Line
The Feeding Devie and The Extruder
The Die-Mould
The Forming-Mould ( Telescopic Tube Making Line)
The Forming-Mould ( Single-wall corrugated pipe machine)
Haul off and cutter( Telescopic Tube Making Line)
Haul off and cutter ( Single-wall corrugated pipe machine)
Winding Machine
Final Product
The Telescopic Tube
Single-wall corrugated pipe
Our Factory
Our office
Our Certification
If you have any problem about our production,please contact me, I will be waiting for you!
Contact:
Mobile:0086 1515 025 1928 | WeChat:3056490458 | QQ: 3056490458 |
Fax:0086 512 58175992 Email:sale8@horserider-plastech | LINE:adrearorschach
Skype:lucyelsewhere WhatsApp:0086 1515 025 1928 | Viber:0086 1515 025 1928
