Plastic Agglomerator Machine/ Agglomeration Machine

Name: Plastic Agglomerator Machine/ Agglomeration Machine
Brand: Horserider Machinery
SKU: 141024192
Availability: InStock

Zhangjiagang Horse Rider Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Recycling Granulator

Capacity:

high output

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Recycling Granulator

Capacity high output

Place of Origin Jiangsu, China

Brand Name Horserider Machinery

Model Number GHX

Material PP/PE

Screw Design Single

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Agglomerator machine
1.Strong design of double-bearing
2.High performance blades
3.Chemical fiber,acrylic

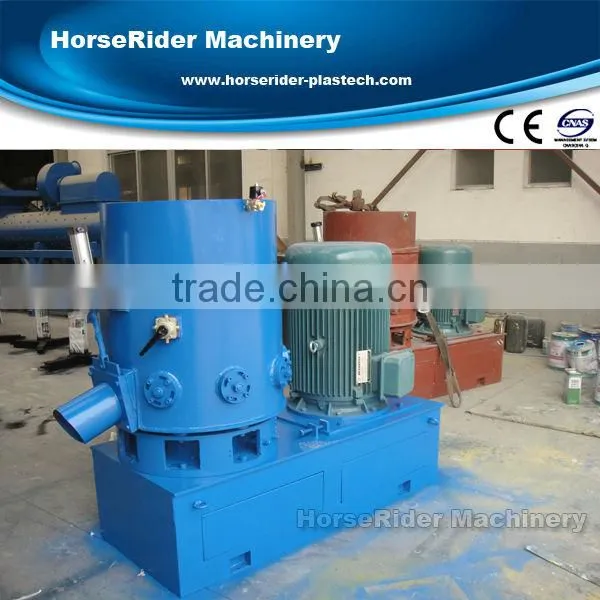

Plastic Film Agglomerator

The Agglomerator ( Densifier ) is used for densify LDPE,LLDPE,HDPE,PP, PET, BOPP film and bags.

Main parameters of Agglomerator GHX

GHX	1000	800	500	300	200	100
Tank volume (Liter)	1000	800	500	300	200	100
Working volume (Liter)	750	600	375	200	150	75
Capacity( Kg/h)	600~800	400~650	350~500	200~350	150-250	100-150
Motor power (Kw)	132	110	90	75	55	37
Rotating blades speed (r/min)	700	750	750	900	800	800
Rotating blades quantity (pcs)	4	4	4	2	2	2
Stationary blades quantity(pcs)	8	8	8	8	6	6
Discharging model	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Water inlet	1”	1”	1”	1”	1”	1”
Machine dimension L×W×H (mm)	2680×1815×2400	2170×1510×2140	2100×1510×2145	2100×1495×1945	1900×1160×1800	1900×650×1310
Machine weight ( Kg)	3500	2800	2500	2000	1800	1200
