Good Supplier for Plastic Agglomerator/plastic Granulator/densifier

Good Supplier for Plastic Agglomerator/plastic Granulator/densifier photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Capacity:
60-800kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Recycling Granulator
Capacity 60-800kg/h
Place of Origin Jiangsu, China
Brand Name Horse Rider
Model Number HRPM
Material PP/PE
Screw Design Single
Voltage 380V 50HZ or customized
Power 60-400KW
Dimension(L*W*H) 15*2*5m or depend on your choice
Weight 5-15 Ton
Certification CE ISO9001 SGS
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.single/double stage
pactor feeder or side force feeder
3.vacuum degassing
4.plastic granulator

Good supplier for plastic agglomerator/plastic granulator/densifier



                Plastic granulator





Good supplier for plastic agglomerator/plastic granulator/densifier

Good supplier for plastic agglomerator/plastic granulator/densifier

General description:

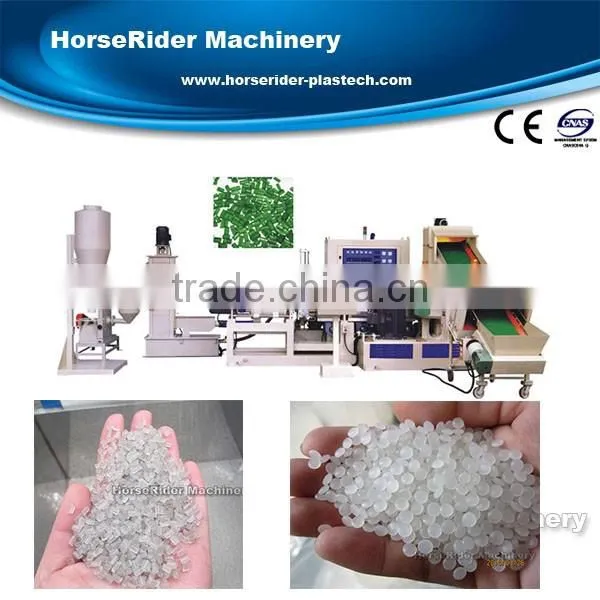

  • The recycling  PP film extruder pellet line  mainly used to recycle some large clean hdpe pe film or bag and make them into granules with good plasticizing effection. The granules will be used for extruding pe pipe or blowing film etc.
  • We design the aggromerator and the single screw extruder two in one ,the aggromerator can work and feed the aggromerated particles into the extruder continually to get higher output.
  • According to the quality and material and shape our customers require for the granules,we can make recycling pp pe granulation into one or two step plasticizing with water ring or string type pelletizing and cooling type .

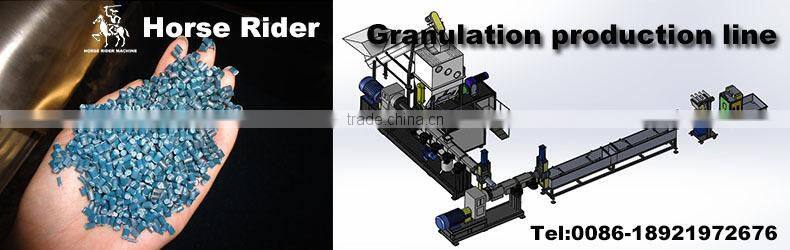

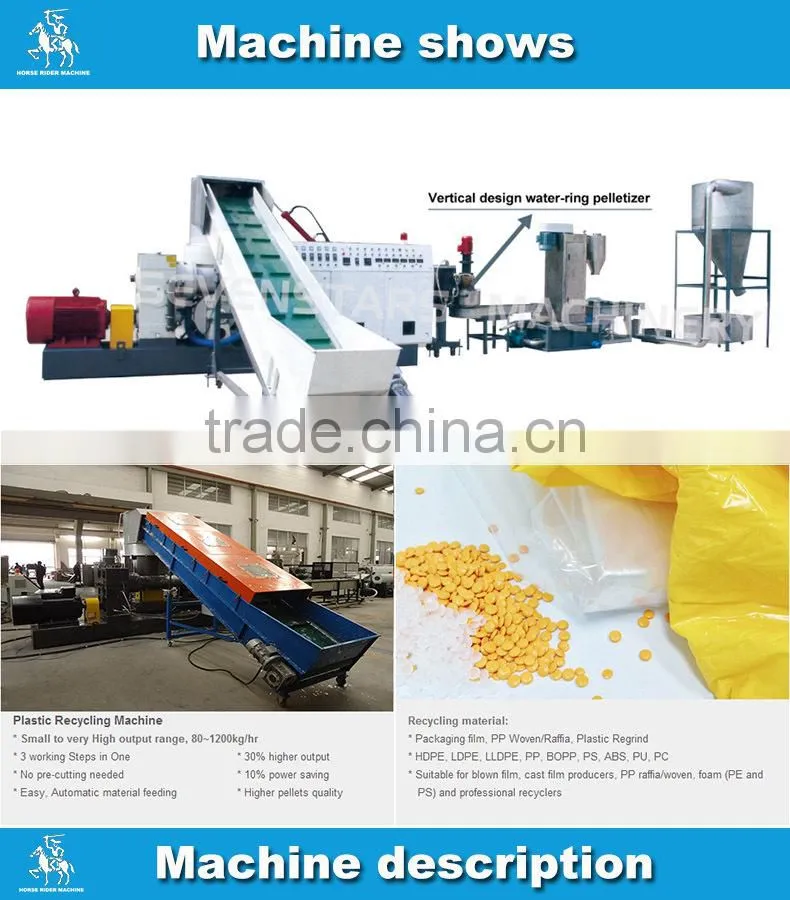

Machine composition:
  • Belt conveyor : Feeding Raw Material Into Agglomerator
  • Compactor : Cutting and densifying the film or bag ,film and bag will become plastic particles and be feeded into the extruder continually.
  • Extruder : Melting the plastic particles from the agglomerator and removing the air and moisture out of the material.
  • Screen exchanger :Removing various impurities from the plastic ,controled by hydaulic station
  • Die face cutter : cutting the plastic into round and oblate granules,controlled by inverter .
  • Water cooling system : contain water pump ,water ring cooling chamber and water tank.
  • Vertical centrifugal dryer : drying
  • Vibrator sieve or shaker : Removing some small and big granules away ,getting the suitable granules we need,the separated granules can be feeded into the agglomerator again.
  • Blower and silo :storage
Another machines' information as following:

A.  Feeding way:Conveyor belt;natural hopper;vertical force feeder;side force feeder;nip roller feeder
B.  Extruder type:Single screw;one stage;two stage.

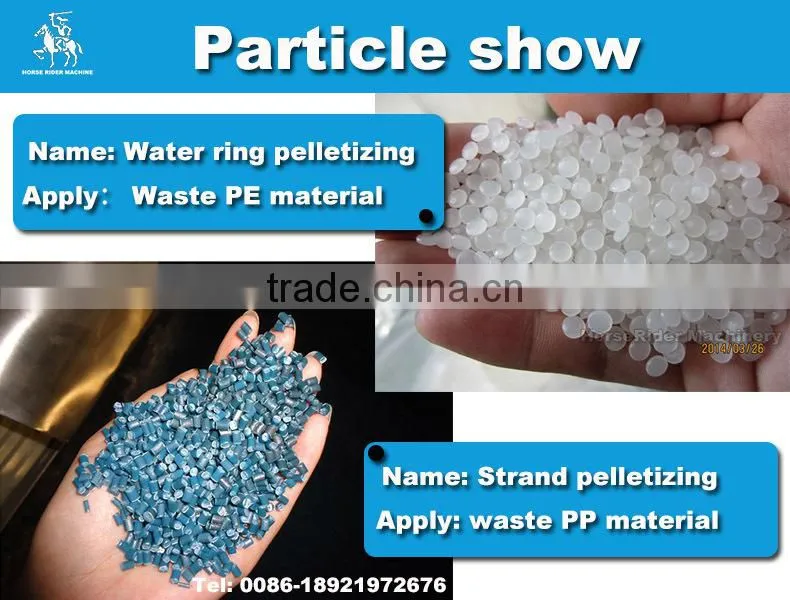

C.  Cutting type: Water ring cutting(die face); Strand noodle cutting;under water cutting
D.  Cooling type: Water cooling ; wind cooling
E.  Product : plastic pellet;granule;resin
F.  Suitable material: HDPE;LDPE;LLDPE;PP;BOPP;EPS;PU;PC;PA;PS;ABS
G. Material shape: films/bags/sheet/net/foam/tapes/regrind/flakes/granules/scraps/chipes/edge trimmed.
