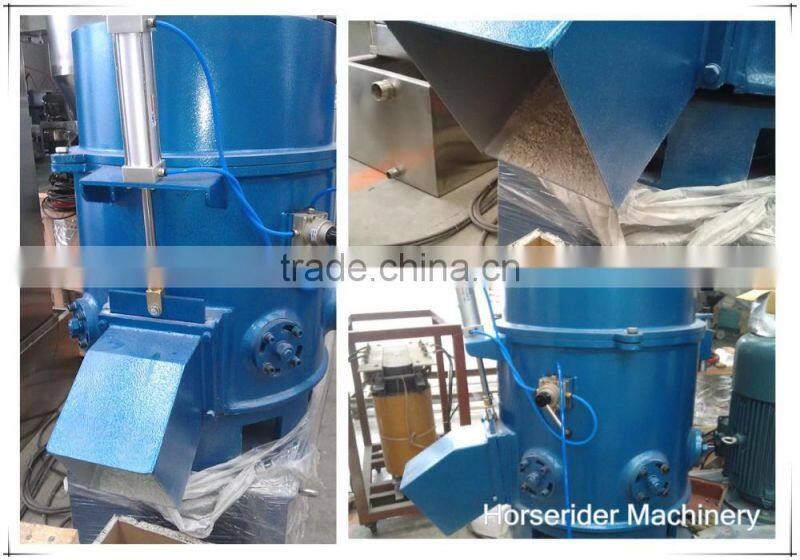

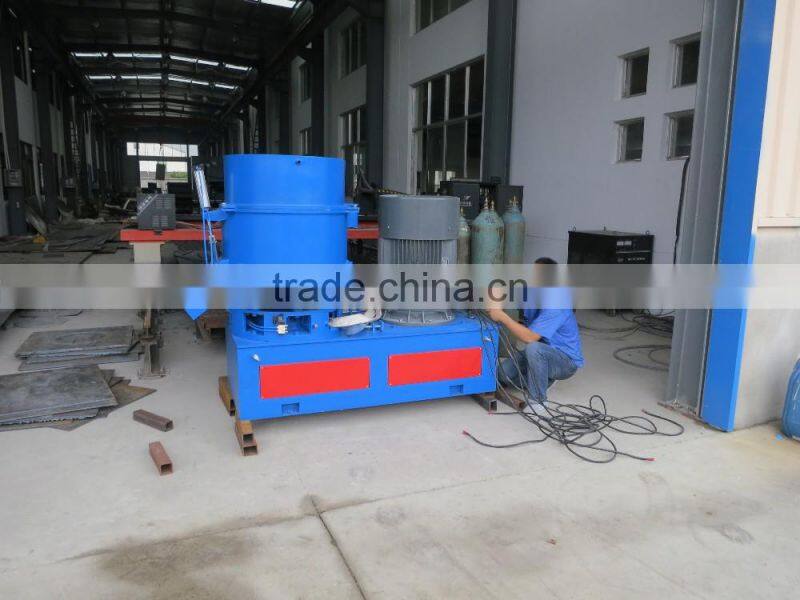

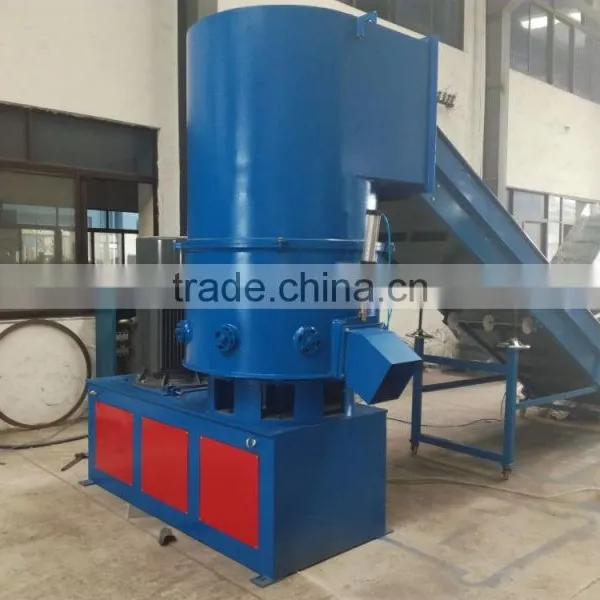

Recycling Plastic Film Agglomerator Agglomerate / LDPE HDPE Film Densifier
Product Description:

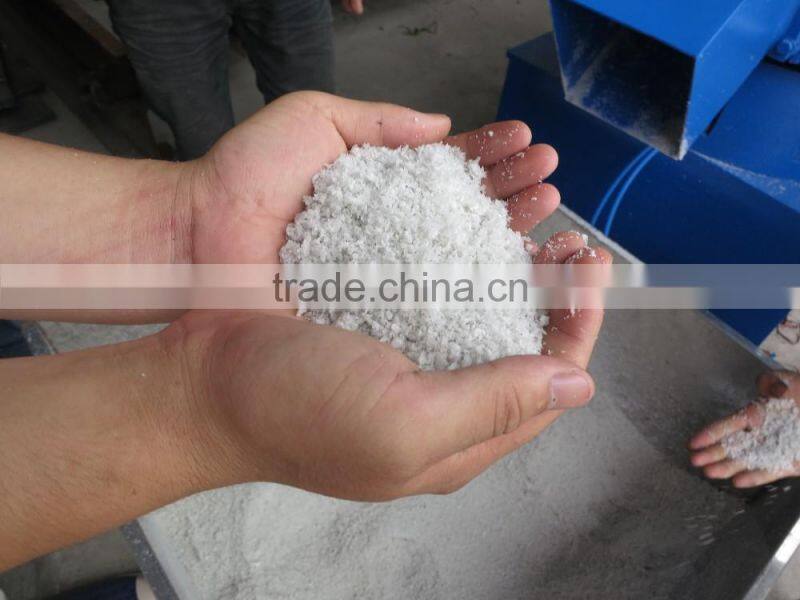

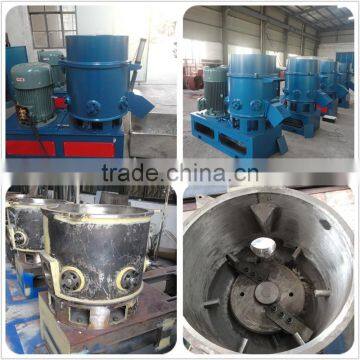

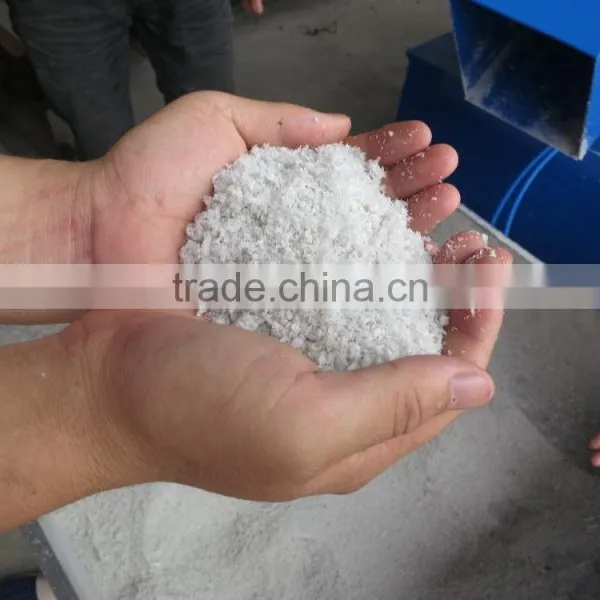

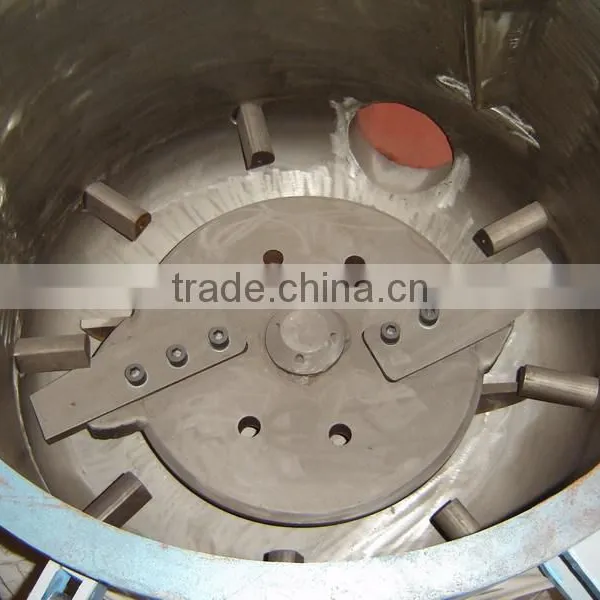

Agglomerator can directly recycle the waste plastic films and other products less than 2mm wall thickness into granules. It is suitable to agglomerate the waste products or films made of soft PVC, HDPE, LDPE, PP and other thermo plastics. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
The particles can be used for extrusion or injection mould machine directly. also can be further pelletized for some advanced requirements.
This machine is qualified with certificate ISO9001:2000.
Technical data:
Model | GHC1000 | GHC800 | GHC500 | GHC300 | GHC200 | GHC100 |
Tank volume (Liter) | 1000 | 800 | 500 | 300 | 200 | 100 |
Working volume (Liter) | 750 | 600 | 375 | 200 | 150 | 75 |
Capacity( Kg/h) | 600~800 | 500~650 | 350~500 | 200~350 | 150-250 | 100-150 |
Motor power (Kw) | 132 | 110 | 90 | 75 | 55 | 37 |
Rotating blades speed (r/min) | 700 | 750 | 750 | 900 | 800 | 800 |
Rotating blades quantity (pcs) | 4 | 4 | 4 | 2 | 2 | 2 |
Stationary blades quantity(pcs) | 8 | 8 | 8 | 8 | 6 | 6 |
Discharging model | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Water inlet | 1” | 1” | 1” | 1” | 1” | 1” |
Machine dimension L×W×H (mm) | 2680×1815×2400 | 2170×1510×2140 | 2100×1510×2145 | 2100×1495×1945 | 1900×1160×1800 | 1900×650×1310 |
Machine weight ( Kg) | 3500 | 2800 | 2500 | 2000 | 1800 | 1200 |
F A Q
Q: Are you trading company or manufacturer ?
A: We are factory ,welcome to visit us anytime.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
