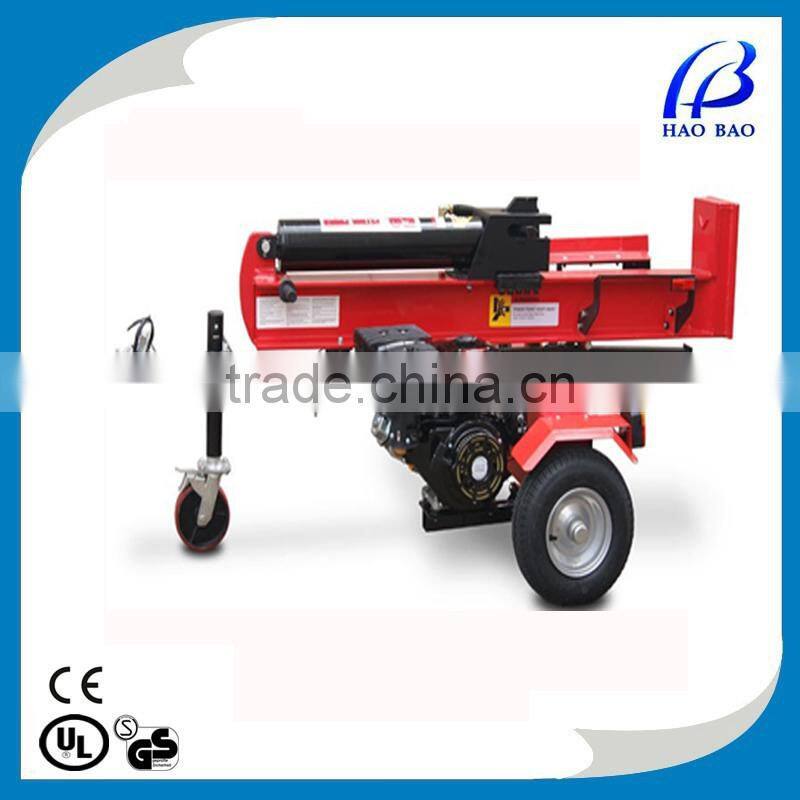

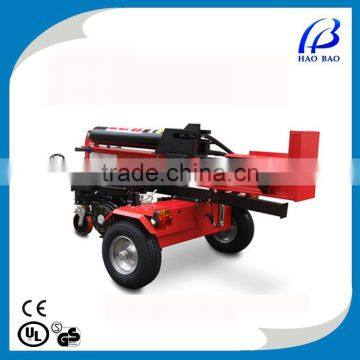

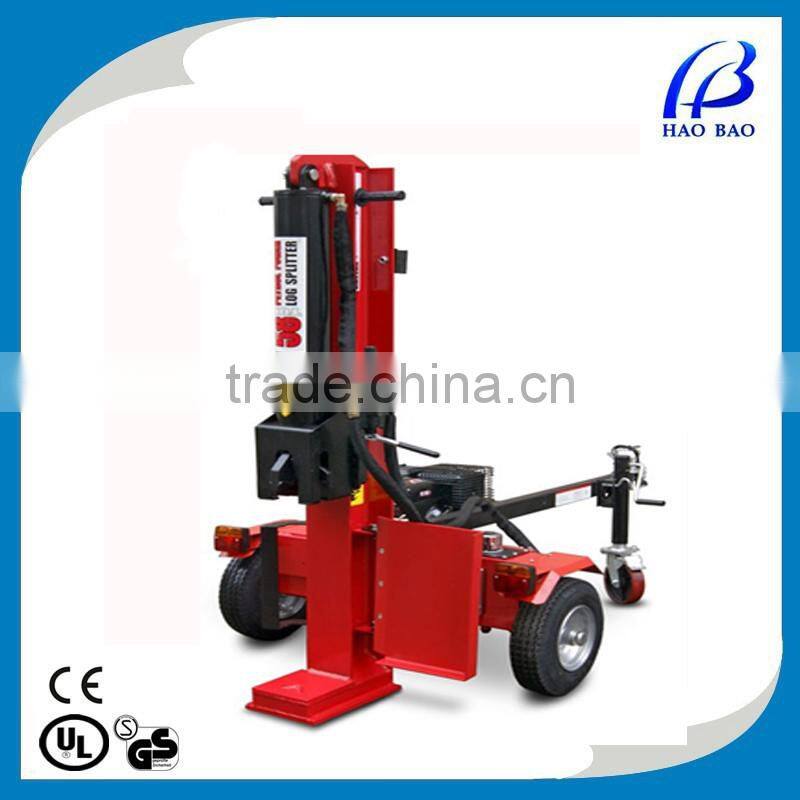

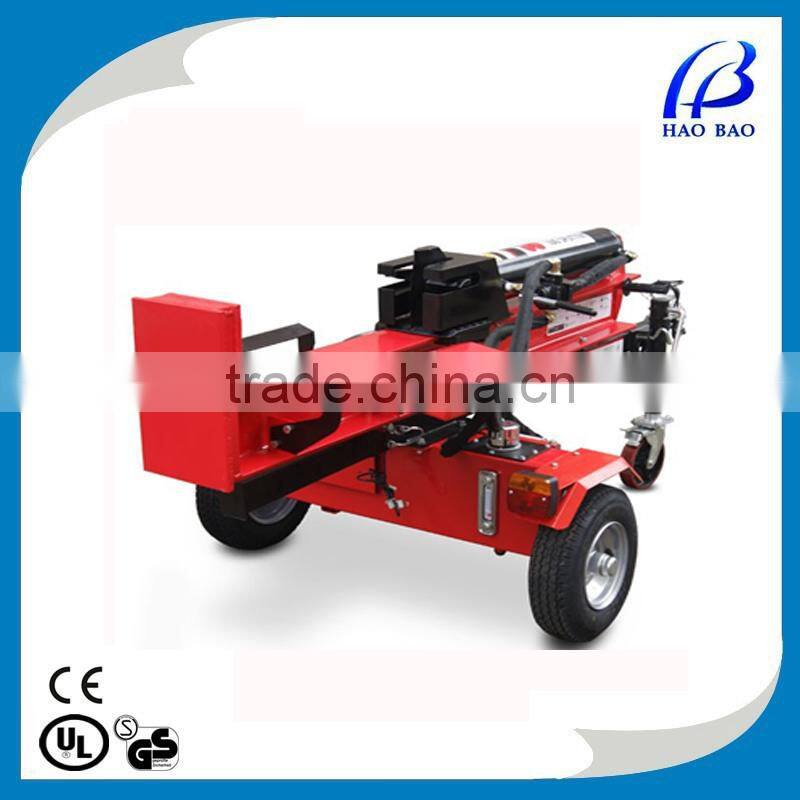

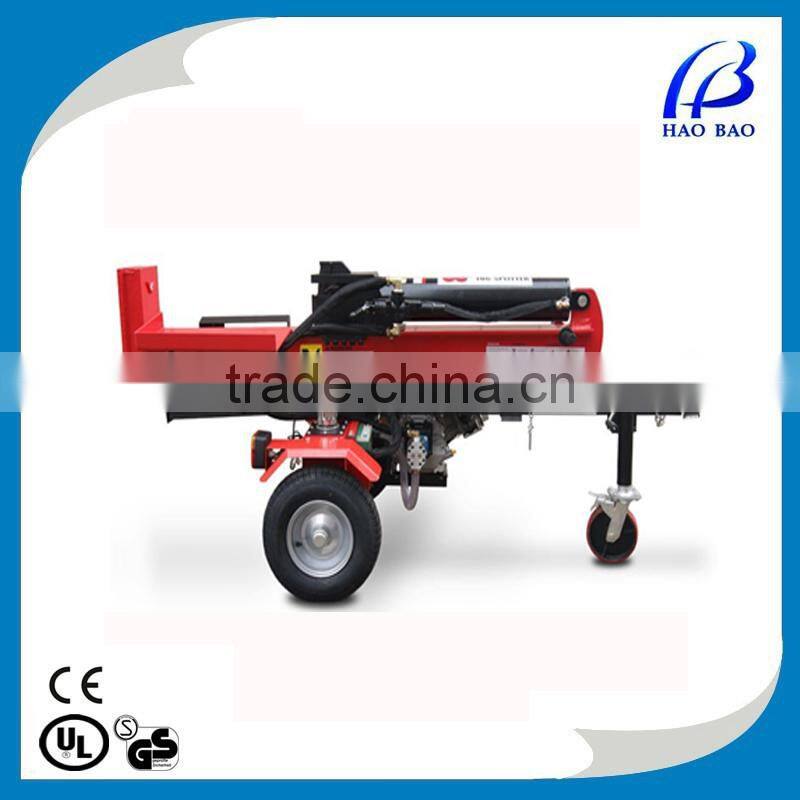

High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift

High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-1
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-2
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-3
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-4
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-5
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift thumbnail-6
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-1
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-2
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-3
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-4
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-5
High Quality HAOBAO LS100P Horizontal and Vertical Gasoline Engine 50 Ton Hydraulic Log Splitter With Ram, Front Wheel With Lift photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Log Splitter
Power Type:
Gasoline
Contact Supplier Request Quote Chat Now
Hangzhou Hexun Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Log Splitter
Power Type Gasoline
Production Capacity 50 ton
Place of Origin Zhejiang, China
Brand Name HAOBAO
Model Number LS100P
Dimension(L*W*H) 2300*1150*960mm
Weight 280kg
Certification CE
Warranty One year
After-sales Service Provided No overseas service provided

High Quality HAOBAO LS100P Horizontal Honda Gasoline Engine 50 ton Hdraulic Log Splitter with Ram, Front Wheel with Lift

Features:



  • Honda, Kohler, Briggs & Stratton optional
  • With rear light and license plate light, signal synchronized with the car
  • Special design, oil tank can be widely opened to get rid of silt
  • Backplate with pierced design, deform difficulty
  • Front wheel with lift
  • Oil and temperature gauge, can see oil ullage obviously





Model

LS100P

Engine

Honda

Engine type

Honda GX390

Horse power

13HP

Rate power

9.56kw

Displacement

389cc

Bore

3.5”

Stroke

2.5”

Torque (ft. / lbs)

18.50 2500 RPM

Engine Start

Electric / Recoil

Shaft output

Horizontal

Crank shaft

Q-type

Shaft diameter

1”

Shaft keyway

1/4”

Shaft end tapped

3/8-24

Shaft rotation

1

Cylinder bore

8.0:1

Air cleaner type

Dual element

Fuel filter

Fuel tank filler neck strainer

Oil capacity

1.16

Lubrication system

Forced splash

Carburetor

Float, external vent

Throttle control

Remote

Choke control

Manual

Max RPM

3600

Charging system amps

10

Muffler

Silent, exhaust pipe protector, deflector

Bolt circle (in.)

5, 6 1/2

Mounting base L*W(in.)

7 11/16*3 25/64 to 4 1/16

Dimension L*W*H (in.)

15 7/8*17 11/16*17 3/8







High Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with liftHigh Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with liftHigh Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with liftHigh Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with liftHigh Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with liftHigh Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with lift









High Quality HAOBAO LS100P Horizontal and vertical gasoline engine 50 ton hydraulic log splitter with ram, front wheel with lift
