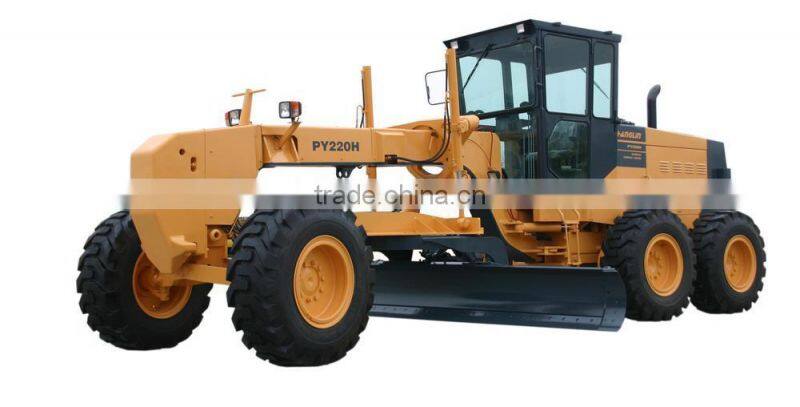

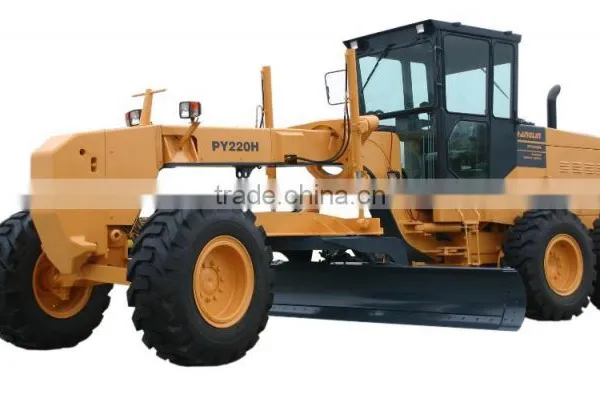

Help CenterMotor Grader
Related Products
Specification
Model |
HX14 |
||||
Basic specification |
Engine model |
Dongfeng Cummins |
6BTA5.9-C 170 |
||
Rated power/speed |
HP/rpm |
170/2300 |
|||
Max. torque/speed |
N•m /rpm |
650/1400 |
|||
Wheel tread |
2156 |
||||
Wheelbase of front and rear axles |
mm |
6574 |
|||
Balancing box centre distance |
mm |
1538 |
|||
Distance between blade and front wheel |
mm |
2705 |
|||
Dimension (L×W×H) |
mm |
9178×2600×3458 |
|||
weight (Standard) |
Kg |
15000 |
|||
|
Performance specification
|
Traveling speed ,forward |
Km/h |
5,9,12,20,25,40 |
||
Traveling speed ,reverse |
Km/h |
5,12,25 |
|||
Max. grade ability |
% |
20 |
|||
Max. Traction force |
KN |
75 |
|||
Tyre inflation pressure |
KPa |
260 |
|||
hydraulic pressure |
MPa |
18 |
|||
Transmission pressure |
MPa |
1.3~1.8 |
|||
Operating specification |
Max. steering angle of front wheels |
° |
±45 |
||
Max. lean angle of front wheels |
° |
±17 |
|||
Max. oscillation angle of front axle |
° |
±15 |
|||
Max. oscillation angle of Tandem |
° |
±15 |
|||
Max. articulation angle |
° |
±25 |
|||
Min. turning radius using articulation |
m |
7.8 |
|||
|
|||||
|
|||||
|
|||||
