Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > HMS600 Blade Capacity 600mm Cutting Brick Saw
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Model Number:
HMS600
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Hollow Brick Cutting Machine HMS900NegotiableMOQ: 1 Set -
Brick Saw Cutting Machine HMS350NegotiableMOQ: 1 Set
-
HXR450D Honda Engine 18'' Max. Blade Capacity Gasoline Floor Saw, Concrete Cutter, Concrete Cutting MachineNegotiableMOQ: 1 Set
-
Concrete Floor Cutting Machine GQR350NegotiableMOQ: 1 Set
-
GQR400-C Walk Behind Portable 13HP Engine 160mm Cutting Depth Concrete Cutter Floor Saw Road CutterNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Model Number
HMS600
Voltage
230V
Certification
CE
Warranty
1Year
After-sales Service Provided
No overseas service provided
Specifications
1.ceramic cutting machine motor:230V/50Hz2.blade capacity:600mm
3.depth of cut:240mm
4.Max.rip cut length:508mm

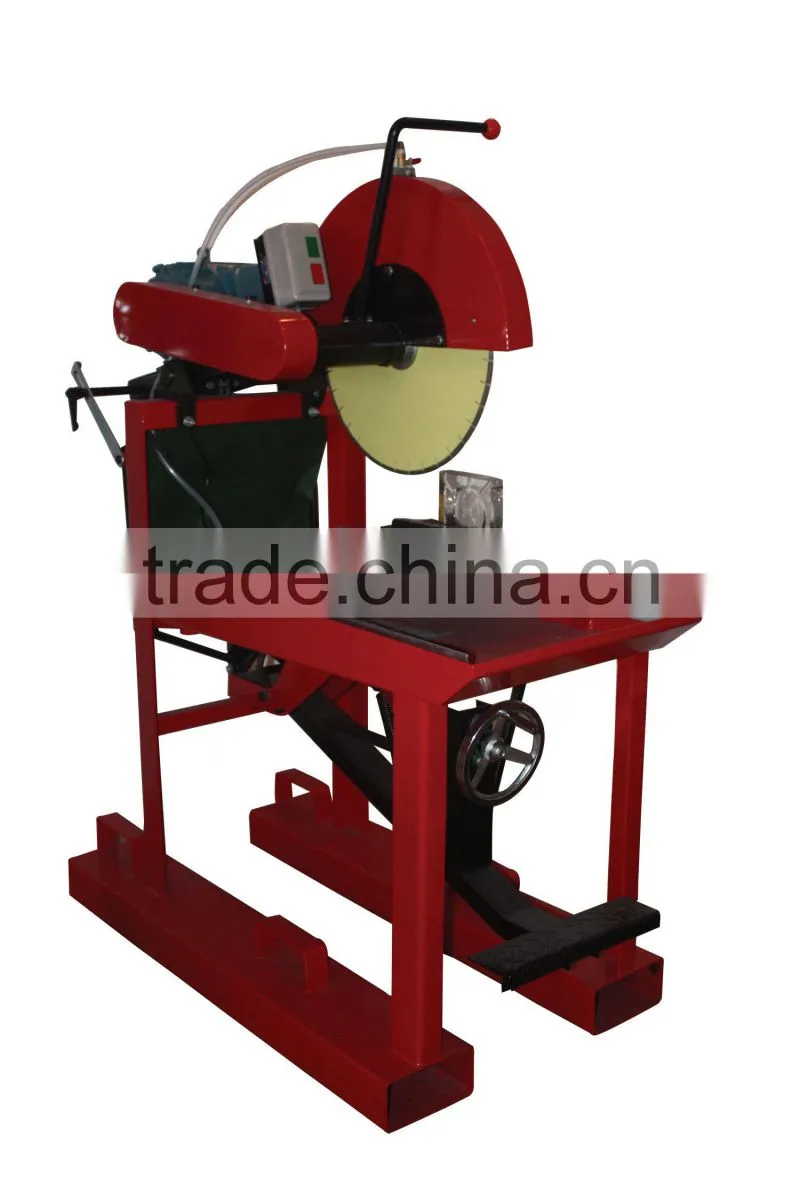

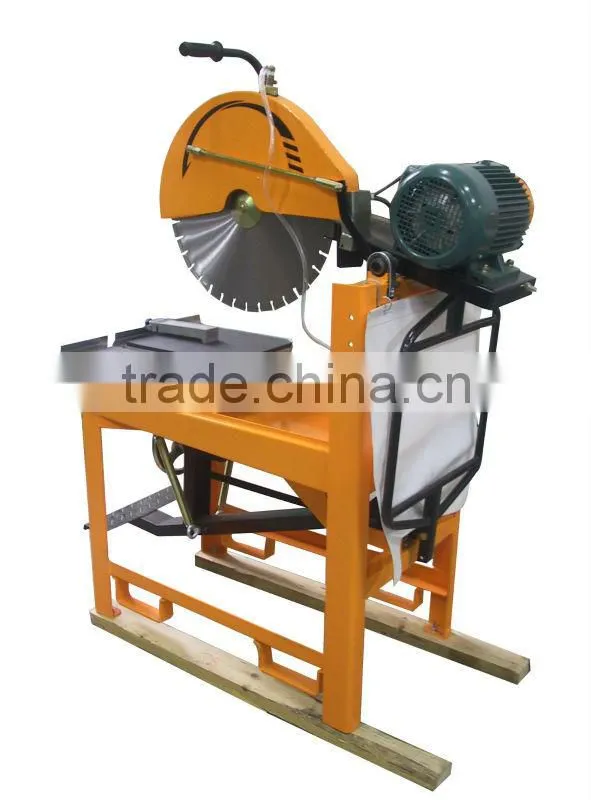

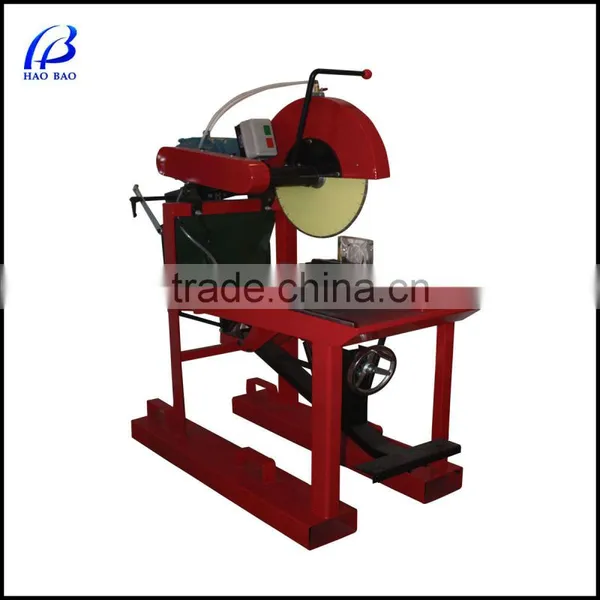

HMS600 blade capacity 600mm cutting brick saw
Features:
- Can hold 600mm(23'')blade, which allows for high cutting efficiency
- Precise spherical rod allows for much more accurate cutting depth adjustment
- Open-back design allows for material up to 510mm(20'')long to be cut
- Ergonomically designed handle for comfortable manipulation
- Can be equipped with 5HP three phase motor or 9HP gasoline engine
- The engine attachment is via four vibration isolation mounts, which allows for safety and reliableness
- Adopts belt driven, for high efficiency and low noise
- Adjustable water supply for maximal blade protection
- With centrifugal water pump if equipped with engine
| brick saw Model | HMS600 |
| brick saw Motor | 230V/50Hz |
| brick saw Power type | 380V/50Hz/3PH 5HP motor |
| Robin 9HPgasoline engine | |
| brick saw Blade speed | 2300RPM |
| brick saw Blade capacity | 600mm |
| brick saw Arbor size | 25.4mm |
| brick saw Depth of cut | 240mm |
| brick saw Max.rip cut length | 508mm |
| brick saw Table size | 524x400mm |
| brick saw Weight | 280kgs(engine type) |
| 270kgs(motor type) | |
| brick saw Packing size | 146x76x194cm(engine type) |
| 146x76x175cm(motor type) | |
| 20'Container load | 12pcs |
About us
Our company was established in 2003. Our business scope covers exporting of various industrial products, such as concrete application, road machinery,drain cleaner etc.
Most of our products have passed TUV CE/GS certification. Quality control is our first life. Service for client is our main work.
After years hard working, Now our products are welcomed in USA, EU, South America, Middle East, South Eastern Asia, and South Asia etc.
