Turnkey Solutions in Waste Tire Recycling Industry
Careddi Technology Co,ltd is specialized in developing turnkey solutions in waste tire recycling field. After long time research and more than 10 years working experience in this market, we are very confident in offering the newest technology with reliable quality and price competititve products to our customers. We have built up successfully turnkey pyrolysis plants in Turkey, Argentina, Peru, India, South Africa, Philipine, India,Greece,Hungary, Thailand etc.
Crumb Rubber/Powder Production line, Capacity range from 200Kg/Hour-5Tons/Hour
TDF Production Line, Capacity range from 500Kg/Hour to 10Ton/Hour
OTR Tires Recycling Process
Pyrolysis Oil Plant, Tire to Oil and Carbon Black (Batch and Continuous system)
Carbon Black Refinery Plant
Oil Refinery Plant, Distillation Plant (Batch and Continuous system)
1. 18000Tons /Yearly(3Ton/Hour) Rubber Powder Production Line
1.1.Main Specifications:
| Size of feed-in material | Whole Tire, diameter less than 1300mm |
| Size of Output Finish product | 30-100 mesh rubber powder/1-4mm rubber granule |
| Max input Capacity | 3Ton/Hour |
| Workers requirement | 3-4 operators per shift |
| Land Requirement | 1530 Square meter (85X18M) |
| Circuit Cooling Water | 60M3/H |
| Total Rated Power | 971.9KW |
| Loading Containers | 14x40HQ |
| Delivery Time | 90 Days |
| Installation and Commissioning | 30 Days |

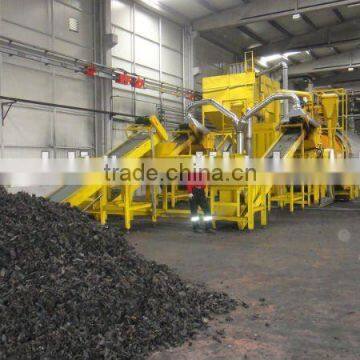

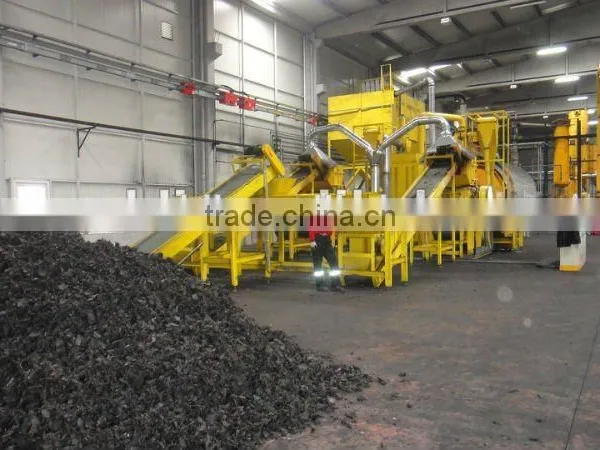

1.2 Photo of Tire recycling machine full plant in operation
2. Tire Pyrolysis Plant
Models available
| Model No | Working Process | Capacity(T/Day) | Feeding Material size | Feeding type | Discharge type |
| CP-5 | Batch | 5-6Ton | Whole tires or tire chips | Manul | Automatic |
| CP-10 | Batch | 8-10Ton | Whole tires or tire chips | Manul | Automatic |
| CSP-20 | Semi-Continuous | 20Ton | Crumb rubber granule 10mm | Full automatic | Full automatic |
| CSP-15 | Semi-Continuous | 15Ton | Tire Chips 30mm | Full automatic | Full automatic |
| CSP-10 | Semi-Continuous | 10Ton | Tire Chips 30mm | Full automatic | Full automatic |
| CFP-15 | Full Continuous | 15Ton | Tire Chips 30mm | Full automatic | Full automatic |
2.1 Batch type pant
2.1.1 Main specification of Batch pyrolysis plant
2.1.2Main Part List.
2.2 Semi-continuous Type Plant
.
2.2.1 Main Specs of Semi-continuous pyrolysis plant
2.2.2 Main Part List

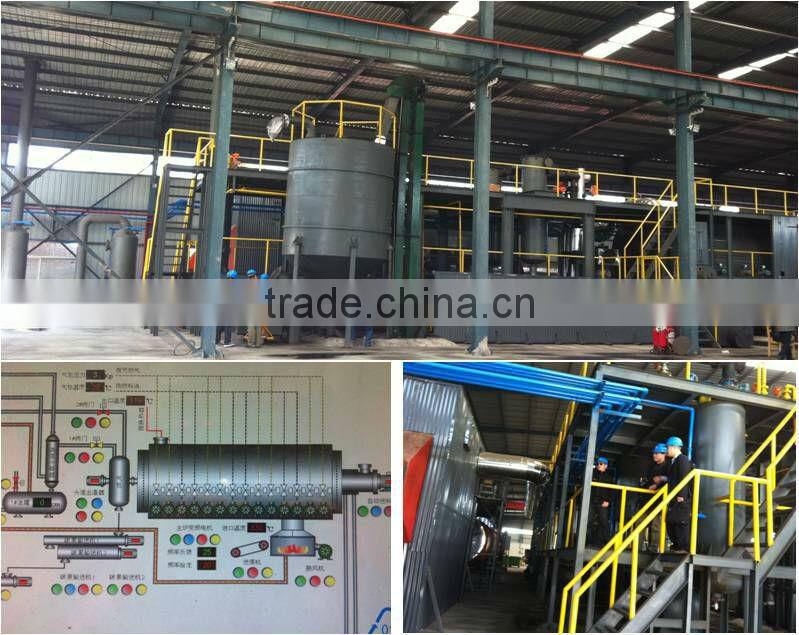

2.2.3 Photo for Ref.

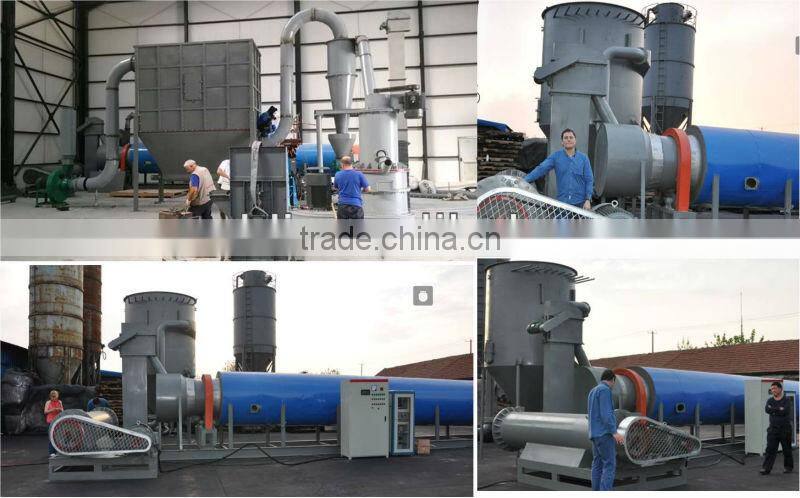

2.3 Carbon Black Refinery Plant
The pyrolysis carbon black (CBP) can be made to briquettes, used as fuel directly, the market price is about US$100 per ton.
There are more profitable solutions to enhance the carbon black quality, for example, to grind the carbon black to 350 mesh,
500 mesh, 700 mesh, 1000 mesh, up to 2500 mesh etc. Which can increase its surface area hugely, this make it can be
applied as rubber reinforcing agent and master batch carbon black for rubber and plastic products like tires, rubber belt, PVC etc.
The market price is between US$500-800 per ton. A new process is under developing which can remove the ash content from
the carbon black, to reduce the ash content less than 4%. It can compete with virgin carbon black after reduce the ash content
less than 4%. Price can go up to US$1000-2000 per ton.
Test report of the carbon black after refinery after washing

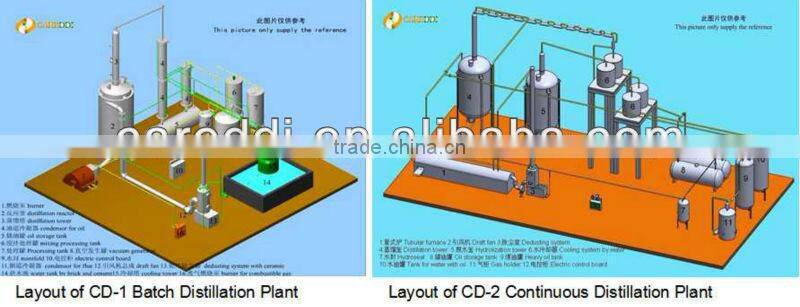

3. Oil Distillation Plant
We are the professional company which researches and makes the waste lubricating oil, crude oil refinery machine.
We have the unique technology for increasing the oil output (the oil yield is not less than 90% when the water by extraction is less than 5%),
reducing the fuel consumption (20 kg diesel for each ton of waste oil) and preventing coked. Meanwhile, we are good at reducing the sulfur,
cloud point and color of the oil, which can be provided separately with additional cost.
We are producing two kinds of machine as following: Batch processing machine and Continuous processing machine. The end product can
be nonstandard diesel and heavier fuel oil, and also can be renewable lubricating oil and heavier fuel oil when the raw material is waste
lubricating oil. The capacity of distillation machine ranges from 25 tons per day to 100 tons per day.
Models Available
| Distillation Plant | Batch Process | Continuous Process | |||
| Model | CD-1-06 | CD-1-10 | CD-2-25 | CD-2-50 | CD-2-100 |
| 24-hour capacity | 6 ton raw oil | 10 ton raw oil | 25Ton | 50Ton | 100Ton |
| 24-hour oil yield | 4.8 Ton | 8 Ton | 20Ton | 40Ton | 80Ton |
| Operating pressure | Negative pressure | Negative pressure | Negative pressure | Negative pressure | Negative pressure |
| Total rated Power | 25KW | 39KW | 85KW | 105KW | 185KW |
| Heating mode | Hot air(indirect heating ) | Hot air(indirect heating ) | Tube furnace | Tube furnace | Tube furnace |
| Size of main distiller (LxD) | 3000×2200mm | 5100×2200mm | 3000×5000mm | 3600×6000mm×2pcs | 3600×6000mm×2pcs |

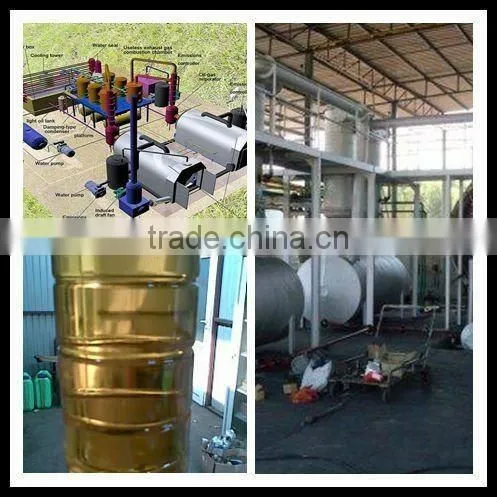

Live photo for reference
Application:
This Pyrolysis tire oil can be used as fule in industries. What's more, it can be used to generate power. It can also be sold directly after pyrolysis process, distilled or undistiled. We can offer this in larg bulks with very competitive price.
Specification:
Item |
Diesel (After Fine Distillation) |
Mixed Tire Oil |
GB# 0 diesel (China national standard) |
Oxidation stability |
2.0 |
1.5 |
2.5 |
Sulfur content % |
0.005 |
0.005 |
0.05 |
10% Steam residual carbon residue % |
0.25 |
0.25 |
0.3 |
Ash content % |
0.008 |
0.1 |
0.01 |
Copper sheet erosion /Degree |
1.1 |
1.1 |
1 |
Water content % |
Mark |
1 |
None |
Mechanical impurity |
None |
None |
None |
Density |
0.85 |
0.88 |
0.83-0.87 |
Aggregation Point/°C |
-10 |
-5 |
0 |
Flash point(Closed cup)/°C |
45 |
40 |
55 |
Kinetic viscosity |
2.5 |
5.0 |
3.0-8.0 |
Calorific value |
9500 |
10000 |
8500 |
Chromaticity |
1.2 |
4.5 |
≤3.5 |
Cetane number |
43 |
38 |
46 |
Pictures:
