Large scale essential oil steam distillation equipment
- Shanghai
- T/T
You May Like
Product Details
| Part | Other | Extraction Type | Other | |
| Place of Origin | Jiangsu, China | Grade | I CLASS | |
| Brand Name | CAREDDI | Model Number | CEE-1000 |
Product Description
This unit is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.
Part List of essential distiller
1, Extracting tank 2, Oil-water separator 3, Receiver 4, Oil cooling system 5, Plate distillation system
6, Vacuum system 7, Frame 8, Pipes 9, Valves 10, Digital temperature sensor.
Feature of the essential distiller
1. Stainless steel made
2. It has Three layers plate distillation system and Special condenser design which can extract the oil efficiently.
3. This machine equips Digital control system and Touch screen display control system.
4. Energy diversification options: electricity, gas, natural gas, steam, wood, etc.
Main Models
| Model | Capacity (L/3-4hr) | Power (KW/H) | Supply Power | Dimension(mm) | |||
| Voltage | Phase | Length | Width | Height | |||
| CEC-10 | 10 | 4.5 | 380/220 | 3 | 1300 | 550 | 1800 |
| CEC-20 | 20 | 5.5 | 380/220 | 3 | 1200 | 700 | 1700 |
| CEC-30 | 30 | 6 | 380/220 | 3 | 1300 | 800 | 1700 |
| CEC-40 | 40 | 7.3 | 380/220 | 3 | 1400 | 700 | 1800 |
| CEC-50 | 50 | 7.5 | 380/220 | 3 | 1600 | 850 | 1800 |
| CEC-60 | 60 | 8 | 380/220 | 3 | 1600 | 850 | 1850 |
| CEC-80 | 80 | 9 | 380/220 | 3 | 1700 | 850 | 1900 |
| CEC-100 | 100 | 12 | 380/220 | 3 | 1700 | 900 | 2100 |
| CEC-150 | 150 | 18 | 380/220 | 3 | 1800 | 900 | 2100 |
| CEC-200 | 200 | 25 | 380/220 | 3 | 1800 | 1000 | 2100 |
| CEC-300 | 300 | 38 | 380/220 | 3 | 1900 | 1000 | 2100 |
Note: Bigger capacity (500L,1000L,1500L,2000L) available according to requirements. | |||||||
Raw material can be use to extract essential oil as below for reference
| Flowers | Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets. |
| Leaves | Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil. |
| Roots | Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor. |
| Grasses | Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose. |
| Wood | Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras. |
| Resins | Frankincense; myrrh; benzoin; fir tree; amyris; Elemi. |
| Bark | Cinnamon. |
| Citrus | Bergamot; grapefruit; lemon; orange; lime; tangerine . |
| Seeds | Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel. |

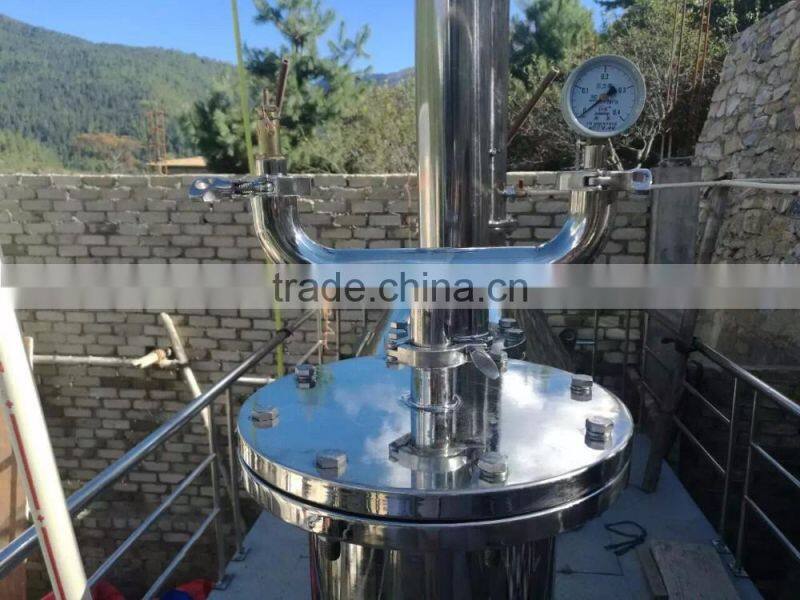

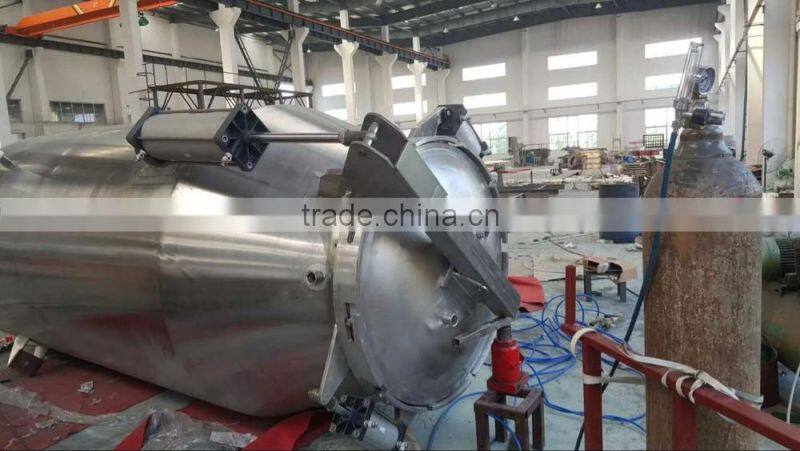

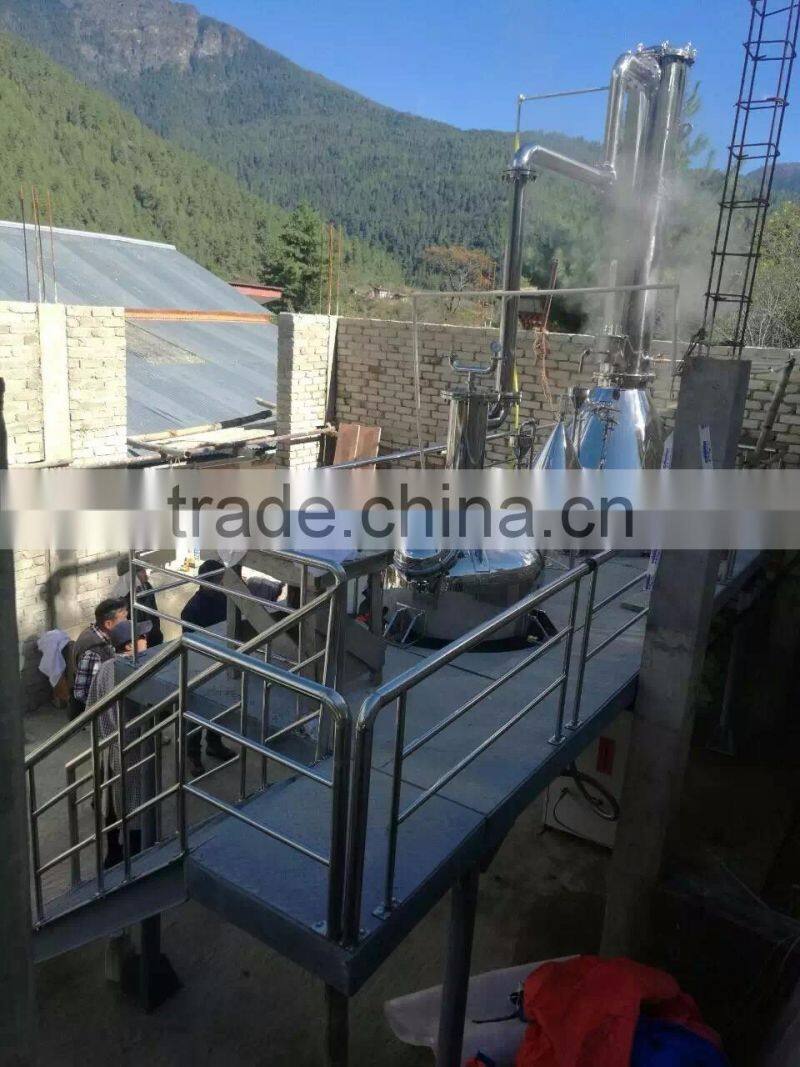

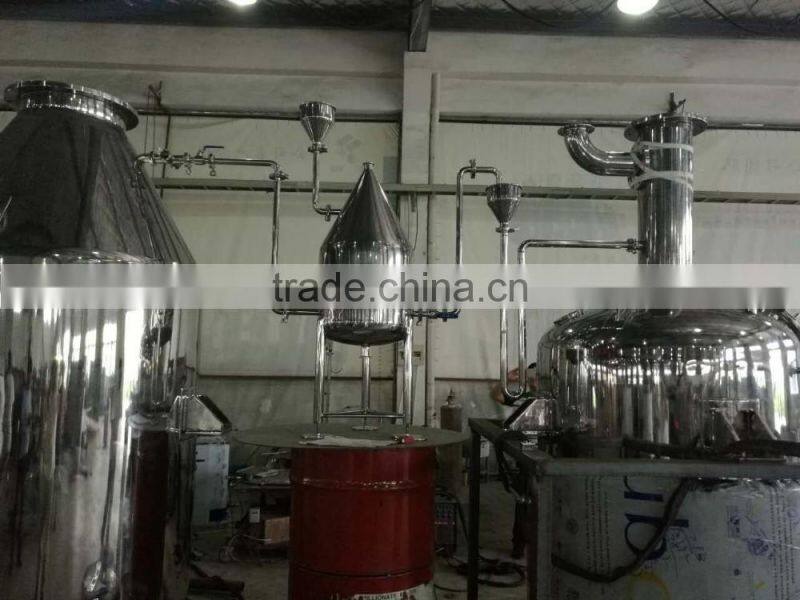

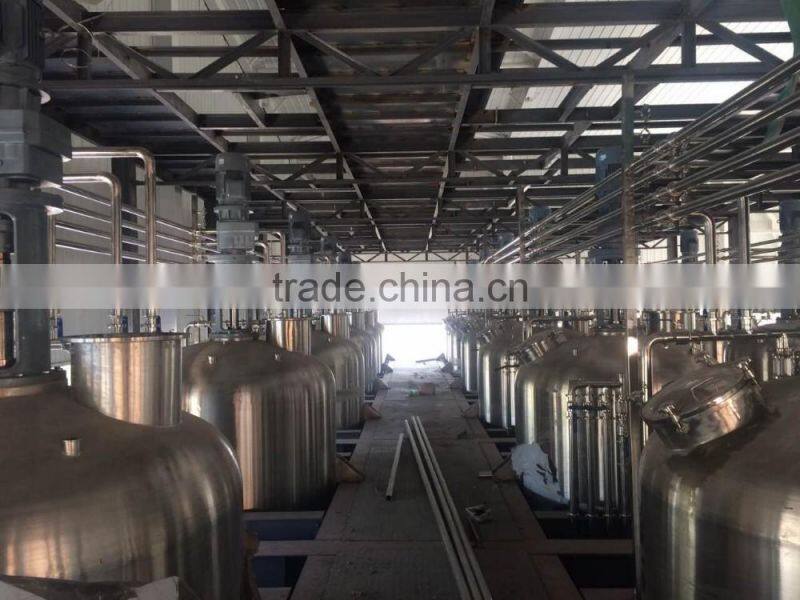

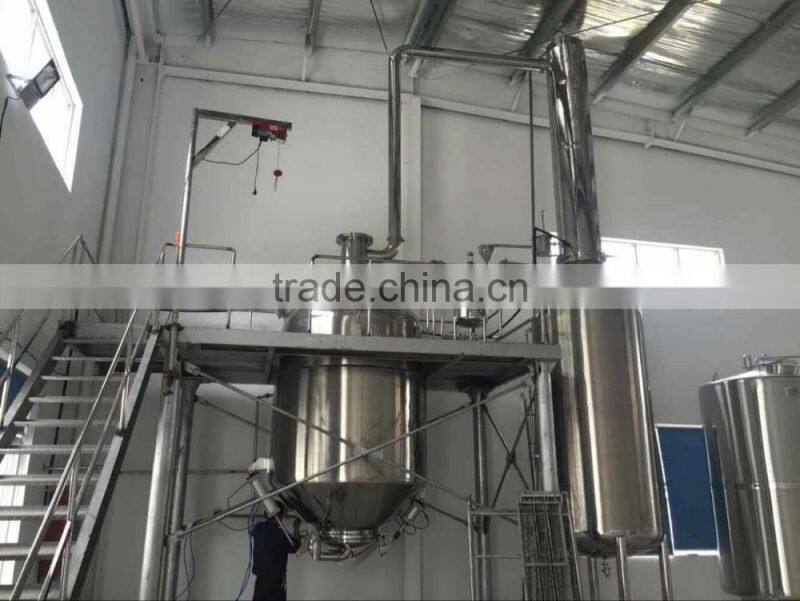

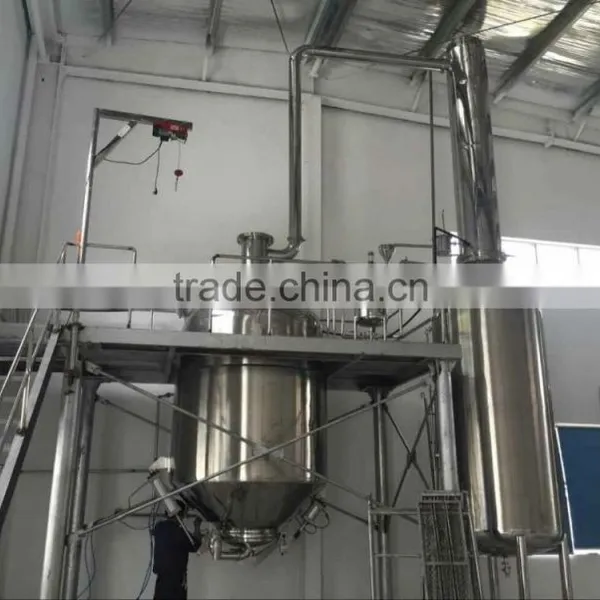

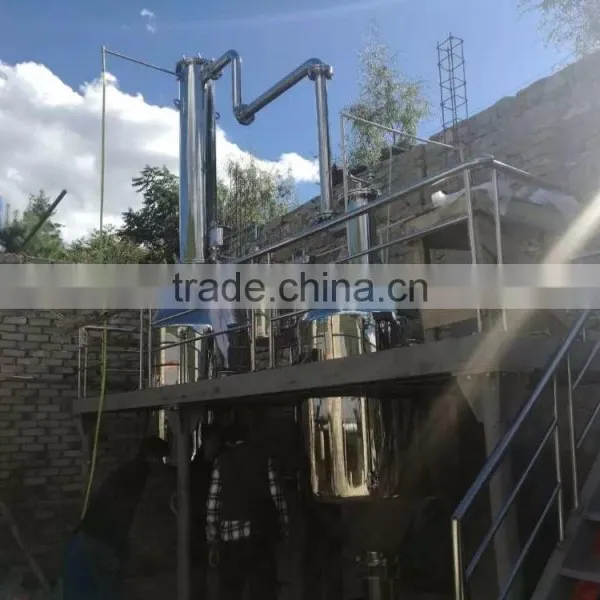

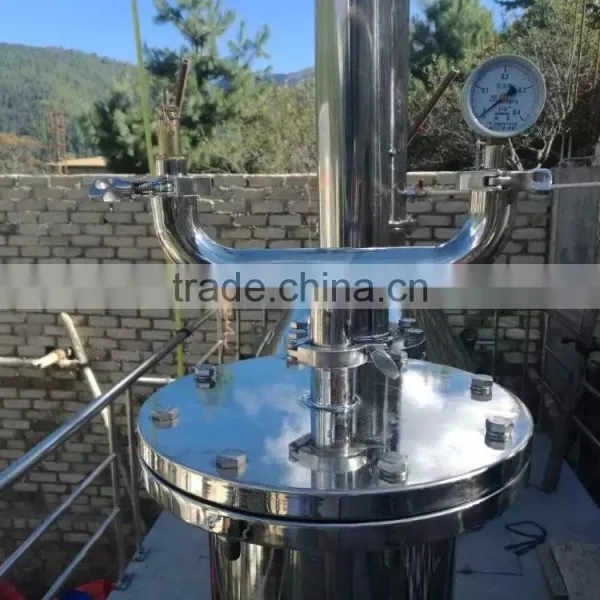

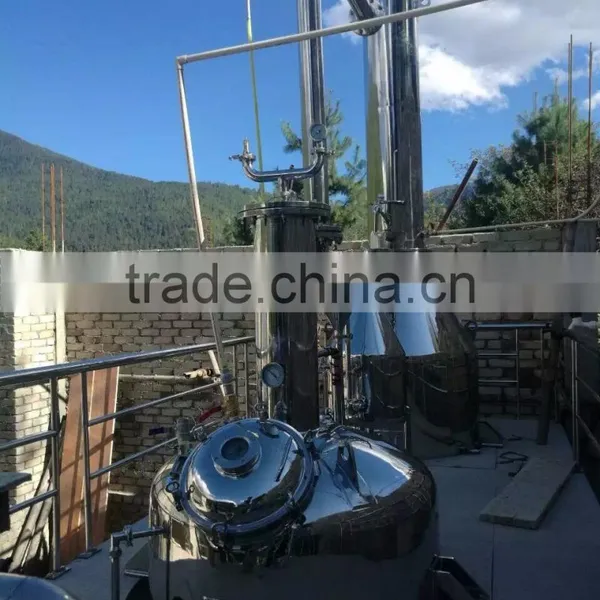

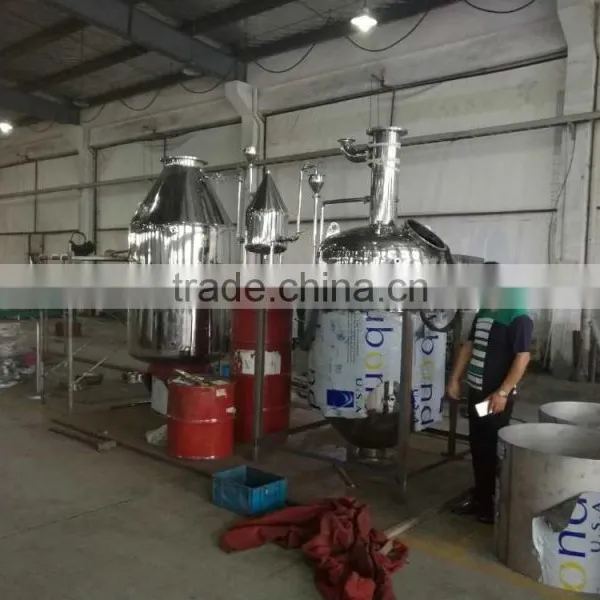

Pictures for reference
/watch?v=8vh609dx8sE
