Help Center2015 High Profit New Generation Tire Recycling System
Related Products
-
2012 High Profit New Generation Pyrolysis Tire OilUS$ 35,000 - 300,000MOQ: 1 Unit -
2012 High Profit New Generation Pyrolysis SystemUS$ 35,000 - 300,000MOQ: 1 Unit
-
2012 High Profit New Generation Pyrolysis PlantUS$ 35,000 - 300,000MOQ: 1 Unit
-
2012 High Profit New Generation Pyrolysis Oil Refining SystemUS$ 35,000 - 300,000MOQ: 1 Unit
-
2012 High Profit New Generation Pyrolysis Oil PlantUS$ 35,000 - 300,000MOQ: 1 Unit
Turnkey Solutions in Waste Tire Recycling Industry
Careddi Technology Co,ltd is specialized in developing turnkey solutions in waste tire recycling field. After long time research and more than 10 years working experience in this market, we are very confident in offering the newest technology with reliable quality and price competititve products to our customers. We have built up successfully turnkey pyrolysis plants in Turkey, Argentina, Peru, India, South Africa, Philipine, India,Greece,Hungary, Thailand etc.
Crumb Rubber/Powder Production line, Capacity range from 200Kg/Hour-5Tons/Hour
TDF Production Line, Capacity range from 500Kg/Hour to 10Ton/Hour
OTR Tires Recycling Process
Pyrolysis Oil Plant, Tire to Oil and Carbon Black (Batch and Continuous system)
Carbon Black Refinery Plant
Oil Refinery Plant, Distillation Plant (Batch and Continuous system)
1. 18000Tons /Yearly(3Ton/Hour) Rubber Powder Production Line
1.1.Main Specifications:
| Size of feed-in material | Whole Tire, diameter less than 1300mm |
| Size of Output Finish product | 30-100 mesh rubber powder/1-4mm rubber granule |
| Max input Capacity | 3Ton/Hour |
| Workers requirement | 3-4 operators per shift |
| Land Requirement | 1530 Square meter (85X18M) |
| Circuit Cooling Water | 60M3/H |
| Total Rated Power | 971.9KW |
| Loading Containers | 14x40HQ |
| Delivery Time | 90 Days |
| Installation and Commissioning | 30 Days |
1.2 Photo of Tire recycling machine full plant in operation
2. Tire Pyrolysis Plant
Models available
| Model No | Working Process | Capacity(T/Day) | Feeding Material size | Feeding type | Discharge type |
| CP-5 | Batch | 5-6Ton | Whole tires or tire chips | Manul | Automatic |
| CP-10 | Batch | 8-10Ton | Whole tires or tire chips | Manul | Automatic |
| CSP-20 | Semi-Continuous | 20Ton | Crumb rubber granule 10mm | Full automatic | Full automatic |
| CSP-15 | Semi-Continuous | 15Ton | Tire Chips 30mm | Full automatic | Full automatic |
| CSP-10 | Semi-Continuous | 10Ton | Tire Chips 30mm | Full automatic | Full automatic |
| CFP-15 | Full Continuous | 15Ton | Tire Chips 30mm | Full automatic | Full automatic |

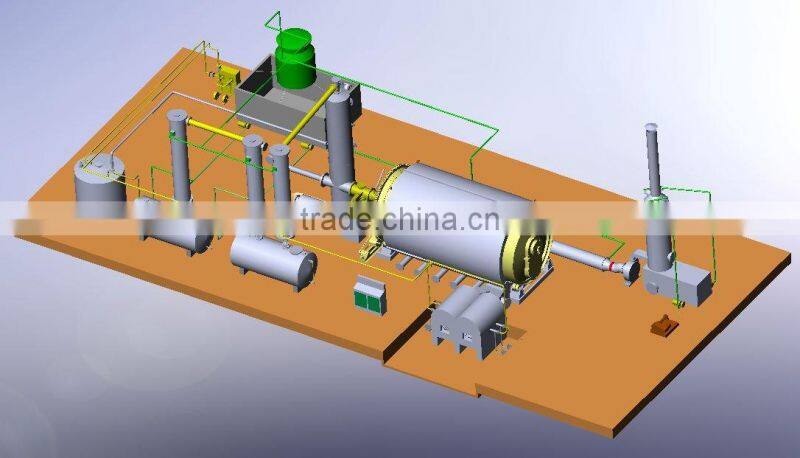

2.1 Batch type pant

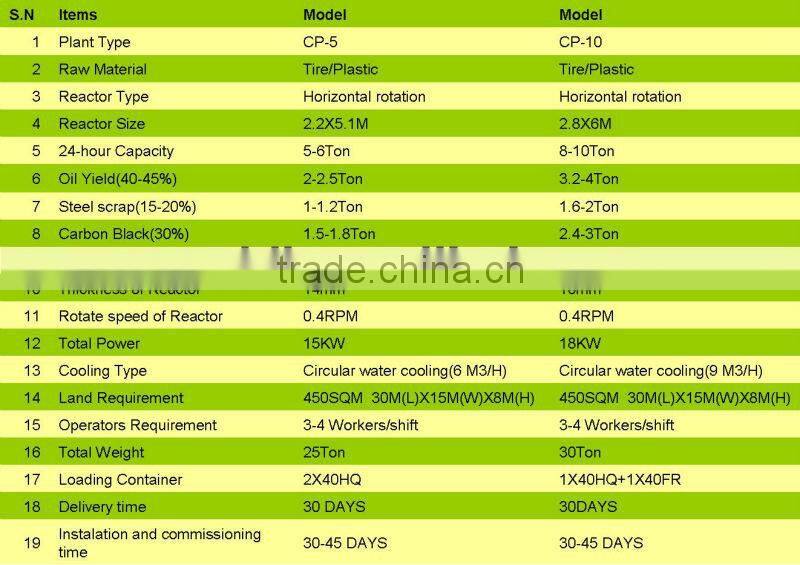

2.1.1 Main specification of Batch pyrolysis plant

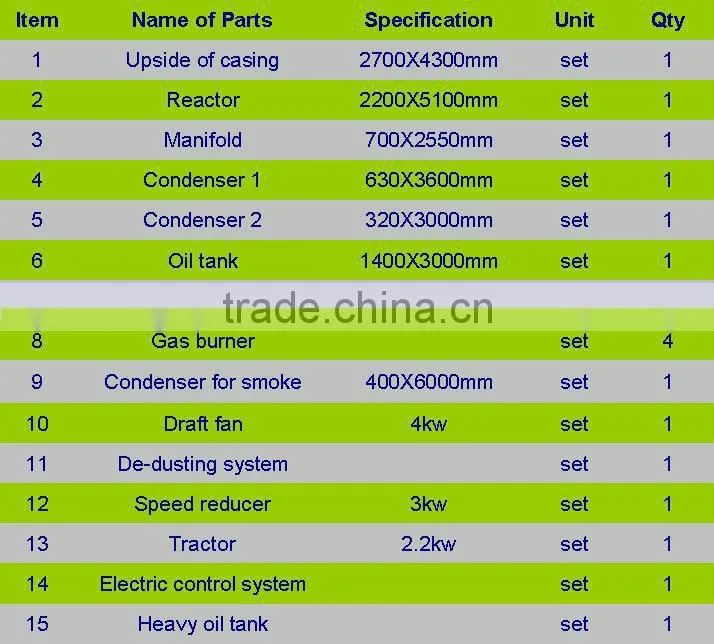

2.1.2Main Part List.

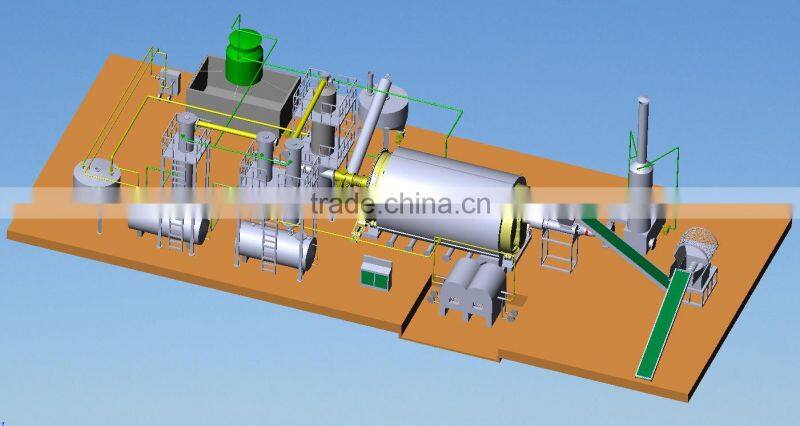

2.2 Semi-continuous Type Plant
.

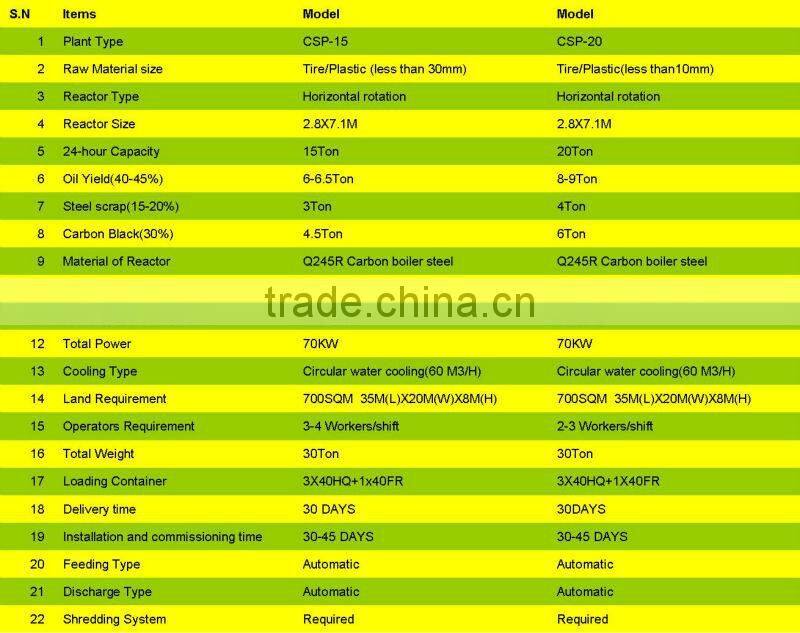

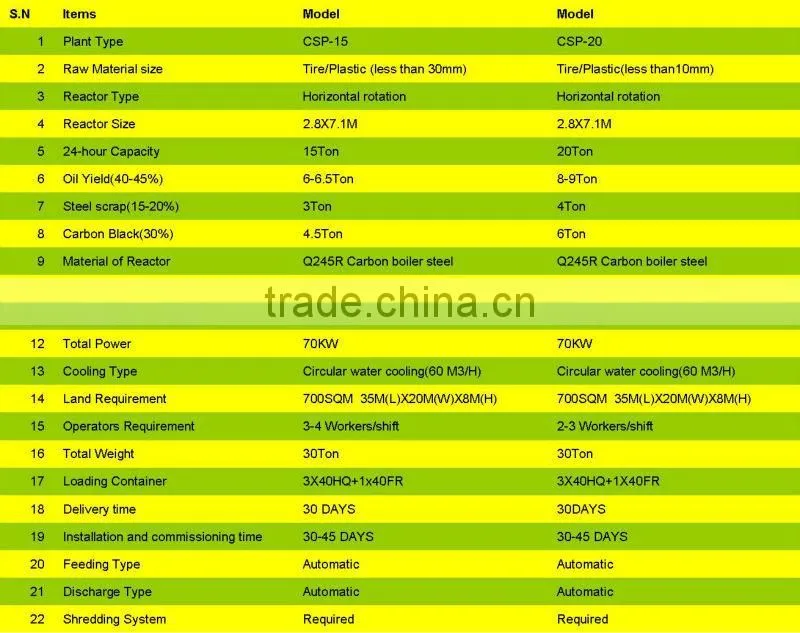

2.2.1 Main Specs of Semi-continuous pyrolysis plant

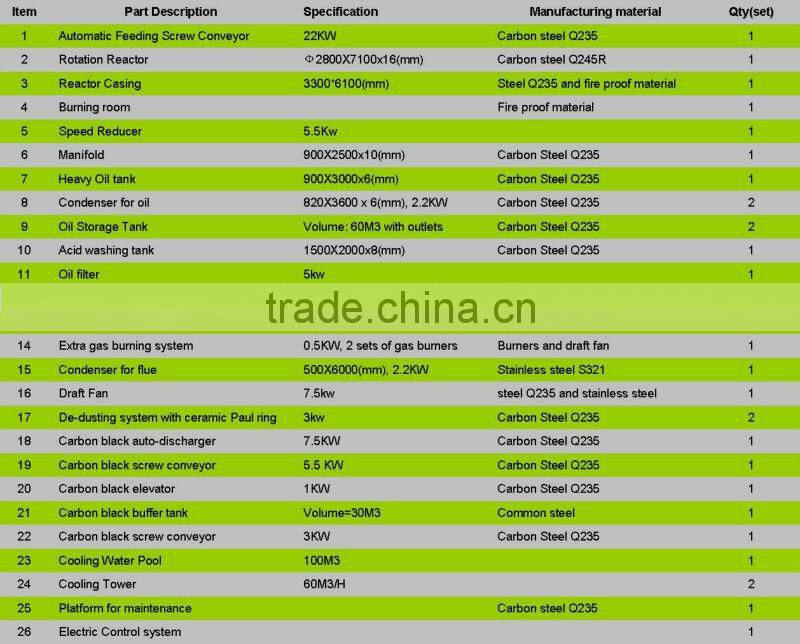

2.2.2 Main Part List
Detailed specifications:
| Model | CP-5(batch) | CP-6(batch) | CP-8(batch) | CP-24(semi-continuous) |
| Raw material | Scrap rubber/PP plastic | Scrap rubber/PP plastic | Scrap rubber/PP plastic | Scrap rubber/Plastic |
| Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| Capacity per day | 5 ton | 6 ton | 8 ton -10ton | 24 ton |
| Oil yield per day | 2.25 tons fuel oil from tyre/2tons from plastic | 2.7 tons fuel oil from tyres/2.4tons from plastic | 3.6 tons fuel oil from tyres/3.2 tons from plastic(minium) | 10.8tons fuel oil from tyres/9.6tons from plastic |
| Operating pressure | Constant pressure | Constant pressure | Constant pressure | Constant pressure |
| Total Power(kw) | 20.4 | 26.4 | 29.7 | 138.2 |
| Mode of cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Cooling water water(Ton/Hour) | 2.5 | 6 | 6 | 12 |
| Heating mode | hot air | hot air | hot air | hot air |
| Working form | Intermittent operation | Intermittent operation | Intermittent operation | Semi-Continuous operation |
| Size of the main Reactor (mm) | 5100×2200x12 | 6000×2200x12 | 6000×2800x16 | 6000×2800x16 |
| Size of whole system (m) | 25*12 | 26*13 | 30*10 | 40*20 |
| Weight of whole system (Ton) | 35 | 43 | 60 | 70 |
| Delivery Time | 25 working days | 25 working days | 30 working days | 45 working days at least |
Pictures:
Payment term: 30% downpayment, 65% balance before shiping, 5% after intallation.
Professional service
1 Reply your enquiry in 24 working hours.
2. Experience staffs answer all your questions in fluent English.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.
