2012 High Profit New Generation Pyrolysis Oil Plant

Specifications

1 Raw material: Scrap rubber/PP plastic
2 Capacity per day: 5/10 /20 ton
3 Finish Product: 40-45% Oil
4 Long life span

Detailed specifications:



Model	CP-5(batch)	CP-6(batch)	CP-8(batch)	CP-24(semi-continuous)
Raw material	Scrap rubber/PP plastic	Scrap rubber/PP plastic	Scrap rubber/PP plastic	Scrap rubber/Plastic
Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation	Horizontal rotation
Capacity per day	5 ton	6 ton	8 ton -10ton	24 ton
Oil yield per day	2.25 tons fuel oil from tyre/2tons from plastic	2.7 tons fuel oil from tyres/2.4tons from plastic	3.6 tons fuel oil from tyres/3.2 tons from plastic(minium)	10.8tons fuel oil from tyres/9.6tons from plastic
Operating pressure	Constant pressure	Constant pressure	Constant pressure	Constant pressure
Total Power(kw)	20.4	26.4	29.7	138.2
Mode of cooling	Water cooling	Water cooling	Water cooling	Water cooling
Cooling water water(Ton/Hour)	2.5	6	6	12
Heating mode	hot air	hot air	hot air	hot air
Working form	Intermittent  operation	Intermittent  operation	Intermittent  operation	Semi-Continuous  operation
Size of the main Reactor (mm)	5100×2200x12	6000×2200x12	6000×2800x16	6000×2800x16
Size of whole system (m)	25*12	26*13	30*10	40*20
Weight of whole system (Ton)	35	43	60	70
Delivery Time	25 working days	25 working days	30 working days	45 working days at least



Pictures:



Waste tire



Pyrolysis Process

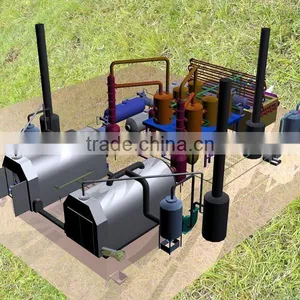

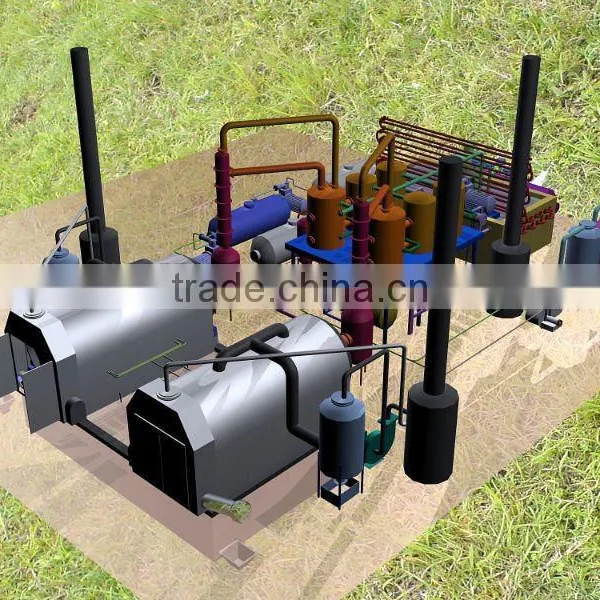

plant layout







Notice:

Payment term: 30% downpayment, 65% balance before shiping, 5% after intallation.
