Home > Products > Waste Tire Pyrolysis Oil System > continuous used tire pyrolysis equipment

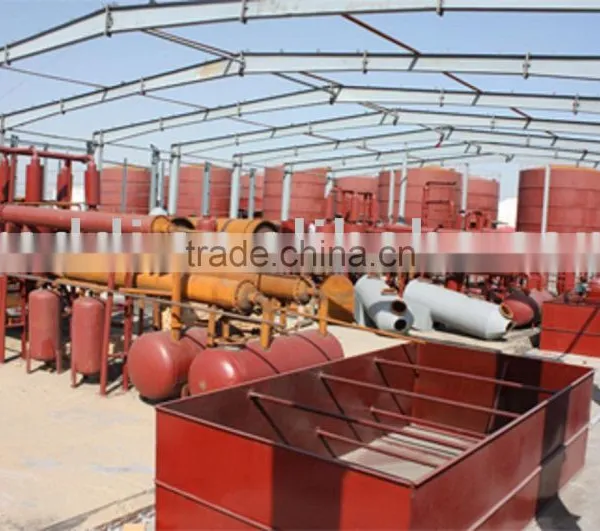

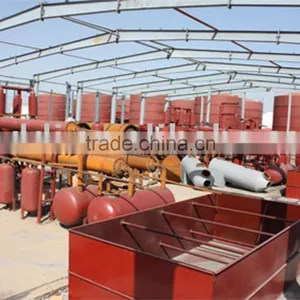

continuous used tire pyrolysis equipment
USD $35,000 - $300,000
/ Set
1 Set(Min.Order)
- 500 Yard / Yards per Month
- Lianyungang
- T/T
You May Like
Product Details
Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine | Place of Origin: | Jiangsu, China |
Brand Name: | CAREDDI | Model Number: | CP-10 |
Product Description
Specifications
1: No explosion;2: continuous production;
3: 2-3years liftspan
4: Up to 45% tire oil output
Specification:
1 | Model | CP-5(batch) | CP-6(batch) | CP-8(batch) | CP-24(semi-continuous) |
2 | Raw material | Scrap rubber/PP plastic | Scrap rubber/PP plastic | Scrap rubber/PP plastic | Scrap rubber/Plastic |
3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation | Horizontal rotation |
4 | Capacity per day | 5 ton | 6 ton | 8 ton -10tons | 24 ton |
5 | Oil yield per day | 2.25 tons fuel oil from tyre/2tons from plastic | 2.7 tons fuel oil from tyres/2.4tons from plastic | 3.6 tons fuel oil from tyres/3.2 tons from plastic(minium) | 10.8tons fuel oil from tyres/9.6tons from plastic |
6 | Operating pressure | Constant pressure | Constant pressure | Constant pressure | Constant pressure |
7 | Total Power(kw/h) | 20.4 | 26.4 | 29.7 | 138.2 |
8 | Mode of cooling | Water cooling | Water cooling | Water cooling | Water cooling |
9 | Cooling water water(Ton/Hour) | 2.5 | 6 | 6 | 12 |
10 | Heating mode | hot air | hot air | hot air | hot air |
11 | Working form | Intermittent operation | Intermittent operation | Intermittent operation | Semi-Continuous operation |
12 | Size of the main Reactor (mm) | 5100×2200x12 | 6000×2200x12 | 6000×2800x16 | 6000×2800x16 |
13 | Size of whole system (m) | 25*12 | 26*13 | 30*10 | 40*20 |
14 | Weight of whole system (Ton) | 35 | 43 | 60 | 70 |
15 | Delivery Time | 25 working days | 25 working days | 30 working days | 45 working days at least |
