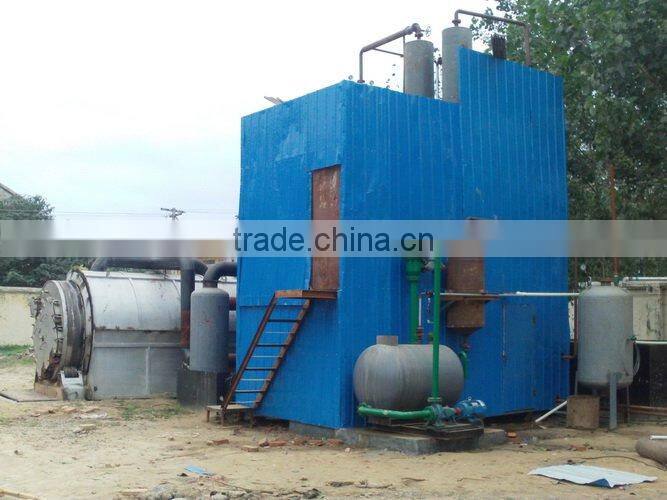

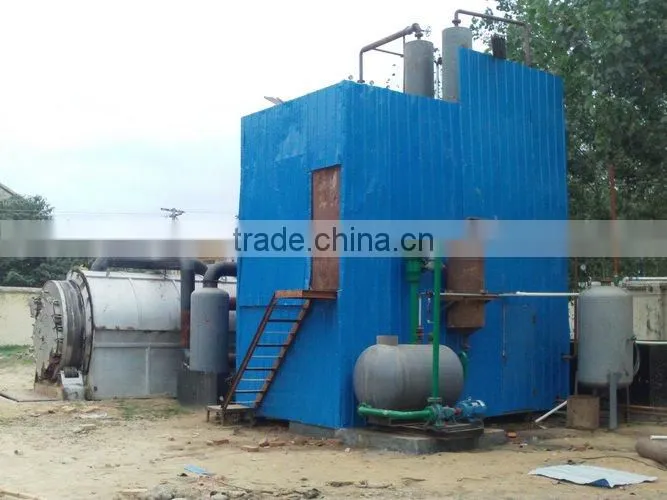

Distillation System

The CD2000 distillation system is specially designed for refining the black tire oil from the tire pyrolysis system, which can remove the black color from the tire oil, and make pure oil from the crude tire oil. This distillation system can also work with waste oil.

System Part List

1. Re-boiler

2. Fractionating tower

3. Pressure release device

4. Central electric control system

5. Condensation system

6. Fuel gas heating system (exhaust treatment system)

7. Air heater

8. Flue dust collecting system

9. Oil tanks.

Features:

1. The complete set of unit produces no smoke and smell with favourable effects of environmental protection.

2. The pressure release device operates through water circulation, which greatly improves the security of the system.

3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.

4. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.

5. High efficiency fuel gas heating system. When the heated gas reaches 150°C during refining, a large amount of gas will be generated: including methane to butane, which cannot be liquified under normal temperature. A large quantity of energy will be generated after these gases fully burn within a specially designed gas burner. Then energy will be saved greatly.

6. Flue dust collecting system; Equipped with water hammer cyclone dust collecting room, which makes sure the discharged flue gas reach national emission standard.

Environmental Protection

Treatment of the three wastes in the course of production

•     1. Exhaust gas
•     By means of full combustion in water seal and gas burner of safety devices, the pollution of exhaust gas shall be eliminated and a large amount of fuel shall be saved.
•     2. Waste liquid
•     Faintly acid waste water shall produce in the course of treatment of oil products (about 50 kg waste water each ton oil, small volume and tractable); after neutralization by adding faintly alkaline liquor, the neutral waste water shall be harmless with three-grade filtration and be discharged into special evaporation processor to vapor (heat source is the flue residual heat of main processor).
•     3. Waste solid
• The waste plastic will have some solid residues, which probably accounts for 5% to 10% of the weight of waste plastic, after being catalyzed and thermally cracked. The main component of these residues is asphalt and it can be sold as the raw material of producing asphalt in the market.
