Home > Products > Tire Recycling Machine > Double roller crusher/waste tire recycling machine
Double roller crusher/waste tire recycling machine
- 1000 Set / Sets per Month
- Lianyungang
- T/T
Product Details
Type: | Tire Machine | Tire Machine Type: | Tire Building Machine | Place of Origin: | Jiangsu, China |
Brand Name: | careddi | Model Number: | XKP450 |
Product Description
Tire Recycing Production Line
High efficiency/Low power consumption
Completely Tire Recycling Production Line (full set of accessories)
Your professional supplier for completely tire (tyre) recycling plant, machine list:
Whole tire crusher (shredder), secondary crusher, fine grinder, magnetic separator, vibration separator, fiber saparator, double way puller (debeader), tire cutter, double roller crusher, PVC anti-skip conveyor, automatic-package system etc.
Turnkey Solutions in Waste Tire Recycling Industry
Tire Recycling plant/waste tire recycling plant/tire recycling machine /Crumb rubber granule line/tire shredder/debeader/wire puller/rubber powder grinder/tire pyrolysis plant/continuous pyrolysis plant,car tire recycling machine
Careddi Technology Co,ltd is specialized in developing turnkey solutions in waste tire recycling field. After long time research and more than 10 years working experience in this market, we are very confident in offering the newest technology with reliable quality and price competititve products to our customers. We have built up successfully turnkey tire recycling plants in China, Turkey, Argentina, Peru, India, South Africa, Philipine, India,Greece,Hungary, Thailand, Saudi Arabia, Chile, etc.
Crumb Rubber/Powder Production line, Capacity range from 200Kg/Hour-5Tons/Hour
TDF Production Line, Capacity range from 500Kg/Hour to 10Ton/Hour
OTR Tires Recycling Process

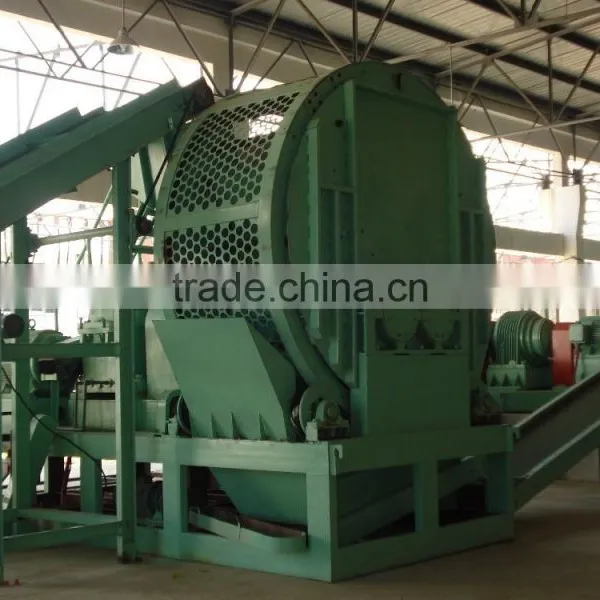

1. Tire Shredder
This series tire shredder is designed to shred the the whole tires, can produce 50x50mm rubber chips from whole tire, with high capacity.
Features:
1)Low power consumption
2)Low maintenance cost
3)Long life time of blades
4)Easy operation and easy maintenance
5)Good quality and competitive price
Shredder Main Specification:
Model | LPP-1200 | LP-1200 | LP-800 |
Max capacity of dealing tires(kg/h) | 5000 | 3000 | 2000 |
Size of feed-in materials | Whole tire below1200mm | Whole tire below1200mm | Whole tire below 800mm |
Size of output materials(mm) | 150x200 | 50X50 | 50X50 |
Power of main motor(KW) | 75 | 90-110 | 55 |
Rotational speed of screen(r/min) | 4-9 | 4-9 | 4-9 |
Dimension(mm) | 4600 x 2280 x 4060 | 6000 X 2800 X 3700 | 4200 x 2100 x 2300 |
Weight(kg) | Approx 16000 | Approx 16000 | Approx 75000 |
2. Secondary Crusher (Granulator)
This series granulator is designed for producing nice shape rubber granule for sports field, running track, rubber tile etc. Combined with magnetic separator and fiber seperator, can get pure rubber granule, 99.9% wire free, and 99.9% fiber free.
Features:
1)Good shape of the rubber granule for sports field, running track, and rubbre tile
2)Low power consumption
3)Low maintenance cost
4)Long life time of blades
5)Easy operation and easy maintenance
6)Good quality and competitive price
Secondary Crusher Specifications:
Model | GP-1000 | GP-400 | XPZ-800 | XPZ-400 |
Max capacity of dealing tires(kg/h) | 1000 | 400 | 800 | 400 |
Size of feed-in materials(mm) | 50X50 tire chips | 50x50 tire chips | 5-10 | 5-10 |
Size of output materials(mm) | 5-10 | 5-10 | 0.8-3 | 0.8-3 |
Power of main motor(KW) | 75-90 | 37-55 | 75-90 | 30-45 |
Dimension(mm) | 2650x1950x2100 | 1790x1400x1900 | 4200 x 2100 x 2300 | 2000x1900x2100 |
Weight(kg) | 5600 | 2500 | 4500 | 2500 |
3.XKP Series Double Roller Secondary Crusher (For making rubber Powder 30 mesh)
XKP Series double roller secondary crusher is designed for making 30 mesh rubber powder from 50x50mm tire chips. It is widely used in many countries for producing reclaimed rubber.
1)Can produce 30 mesh rubber powder (wire and fiber free) directly.
2)Low power consumption
3)Low maintenance cost
4)Long life time of blades
5)Easy operation and easy maintenance
6)Good quality and competitive price
XKP Series Double Roller Crusher Specification:
Model | XKP-450 | XKP-560 | XKP-620 |
Max capacity of dealing tires(kg/h) | 400 | 500 | 600 |
Size of feed-in materials(mm) | 50X50 tire chips | 50x50 tire chips | 50x50 tire chips |
Size of output materials(mesh) | 20-30 | 20-30 | 20-30 |
Power of main motor(KW) | 55 | 75 | 90 |
Dimension(mm) | 4770x1846x1835 | 5064x2284x1978 | 5864x2684x2056 |
Weight(kg) | 10000 | 19000 | 23000 |
4. XMF-330 Series Fine Rubber Grinder (Pulverizer/Miller)
XMF-330 Series Fine grinder is designed for making fine powder from rubber granule. It can produce maximum 100 mesh rubber powder with high capacity.
1)Can produce 40-100 mesh rubber powder (wire and fiber free) with high capacity.
2)Low power consumption
3)Low maintenance cost
4)Long life time
5)Easy operation and easy maintenance
6)Good quality and competitive price
XMF-330 Fine Grinder Specification:
Size of feed-in materials(Mesh) | 5-20 | ||
Size of discharged materials(Mesh) | 30-40 | 40-60
| 60-100
|
Capacity(kg/h) | 150-180 | 130-150 | 130-110 |
Power(KW) | 32.6 | ||
Dimension(mm) | 1850*1850*1750 | ||
Weight(kg) | 2600 |
5. OTR Tire Cutter and Debeader
OTR Tire Cutter and Debeader are designed for recycling the OTR tire (mine tire), it can process with maximum 5 meter OTR tire. Cut directly OTR with bead into 5-6 big rubber pierces, rubber pieces size no more than 1 meter.
Specification:
(1) Capacity: 3-5Ton/Hour
(2) Power: 22Kw
(3) Feeding Tires: OTR tires diameter less than 4000mm
(4) Lifting method: Mechanical lifting
(5) Hydraulic force: 380T
(6) Material Blades: Cr12
(7) Gross Weight: 50T
(8) Dimension(LXWXH):5500X1700X4500mm
Photo of Tire recycling machine full plant in operation
