Specifications
1. rubber devulcanizer2. fully automatic
3. power saving
4. long life time
5. environment friendly
Used tyre recycling production line/Reclaiming rubber machine
It is to make high quality reclaimed rubber with used tyres in a power saving, continuous as well as enviroment-friendly way. The reclaimed rubber from the prodcution line can be used for makin of tyres, rubber shoes, layer for cables. rubber tiles, etc.
Here are the main euipments for making reclaimed rubber.

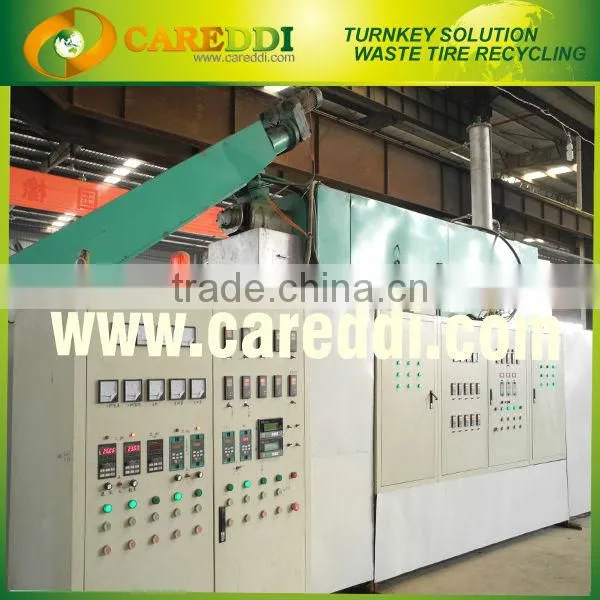

I. Electromagnetic Induction Heating Devulcanized System
Model: | CRR-15 | Model: CRR-30 |
Capacity | 14-17Ton/Day | 28-34 Ton/Day |
Total Rated Power | 100KW (Consume 60-70KW) | 200KW (Consume 120-140KW) |
Dimension(m) | 15.6X2.5X4.5 | 15.6X5X4.5 |
Weight (Ton) | 17 | 34 |
Main Part Lists:
1. Agitation System
2. Auto Feeding System
3. Main Reactor with electromagnetic induction heating System
4. Water Cooling System
5. Auto Discharging System with twin screw , gear chain transmission device, reducer device, run in two opposite direction
6. Temperature Control System: Temperature control instrument, induction heating board, induction heating coil.
7. Control Board/Temperature controlled/ Inverte
Features and Advantages
1. Environment Friendly, Non-pollution, no waste liquid, no smell at site.
2. Full Automatic and Continuous Production in 24 hours.
3. Easy operation, only need 1 operator per shift
4. Devulcanized rubber powder has good quality
5. Low production cost.

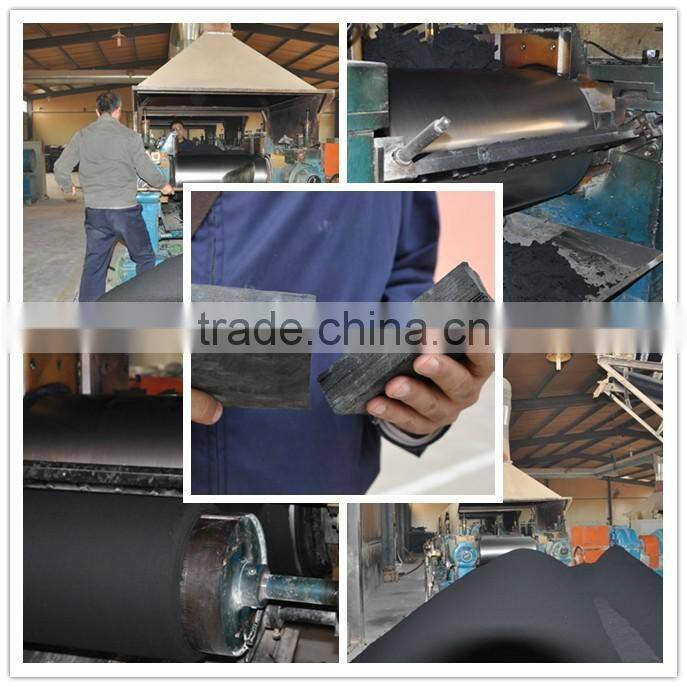

II. Rubber refiner(3 Sets)
Working diameter of rolls | Ø400 mm |
Working length of rolls | 1010 mm |
Working linear speed of front roll | 19.34 m/min |
Friction ratio of front and rear roll | 1:1.2727 m/min |
Max. gap | 10 mm |
Regulate roll way | Manual control |
Capacity per.batch | 15-20kg |
Driving motor power | 40 kw/970m/min |
Bush way | Nylon bush |
Working temperature | ≤70°C |
Striker plate | Axial restraint |
Looking forward to your pleasant cooperation!
