New Design Borehole Drilling Machine, Cheap Water Well Drilling Rig With Good Quality
- Qingdao Shanghai Tinjin
- Credit Card
You May Like
-
Small Trailer Borehole Water Well Drilling Rig for Sale
-
Tractors Drill Machine, Tractor Mounted Water Well Drilling Rig,200m Depth
-
200m Small Water Well Drilling Machine/HW-230 Portable Water Well Drilling Rig/50-200m Mobile Water Well Drilling
-
High Efficiency Rock Drilling Machine Small Water Well Drilling Rig
-
HW-160 Model Small Portable Water Well Drilling Rig For Sale
-
Small Borehole Drilling Water Well Drilling Rigs/machine for Sale
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | HengWang | Model Number | HW-160L | |
| Usage | Water Well | Voltage | 220V/380V,can be customized | |
| Power(W) | 20HP | Dimension(L*W*H) | 2500*1000*1300 mm | |
| Weight | 960 KGS | Certification | ISO CE | |
| Warranty | 1 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
truck mounted diesel engine water well drill rigs for sale
Production Features
1.HW-130 Crawler-mounted water well drilling rig
a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b. hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder,improve the efficiency
diesel engine adopt the electric starter,to reduce the labor itensity
2.Applications of HW-130 crawler-mounted Water Well Drilling Rig
XYD-130 crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
Technology Parameters
Model | HW-160L |
Drilling depth | 130m |
Maximum open hole caliber | 260mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75° |
Drilling rig weight (Exclude diesel engine) | 560kg |
Overall dimension | 2500×1000×1300mm |
Spindle | |
Spindle speed | 142, 285, 570 r/min |
Spindle stroke | 450mm |
Winch | |
Max. Lifting capacity with single rope | 960kg |
Lifting speed with single rope | 0.41, 0.82, 1.64 m/s |
Steel wire rope diameter | 13mm |
Steel wire rope cubic measure | 27m |
Mud pump | |
Type | Horizontal single-cylinder double-acting |
Displacement (with diesel engine/electric motor) | 95/77 L/min |
Diesel engine | s1105 18HP |
Electric motor | Y160M-4 11kw 1440r/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 30mm |
Water outlet caliber | 25mm |
Triangle belt | B1575mm |

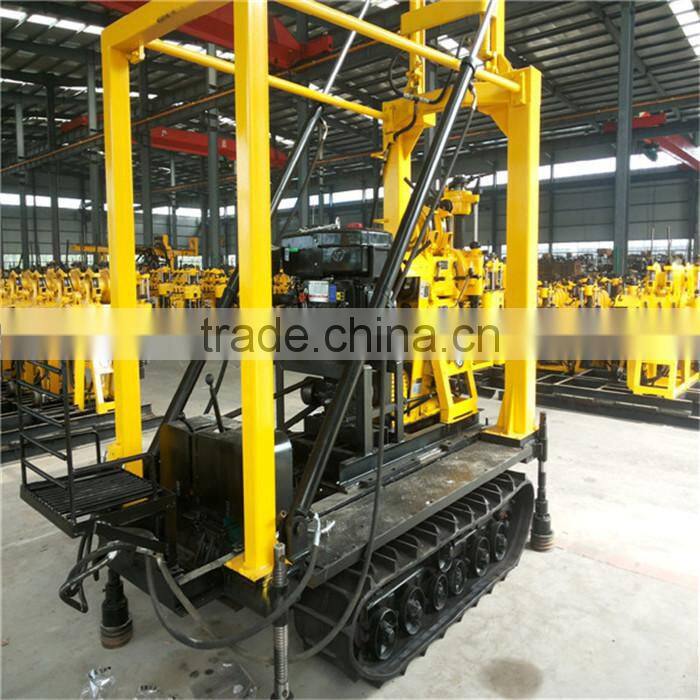

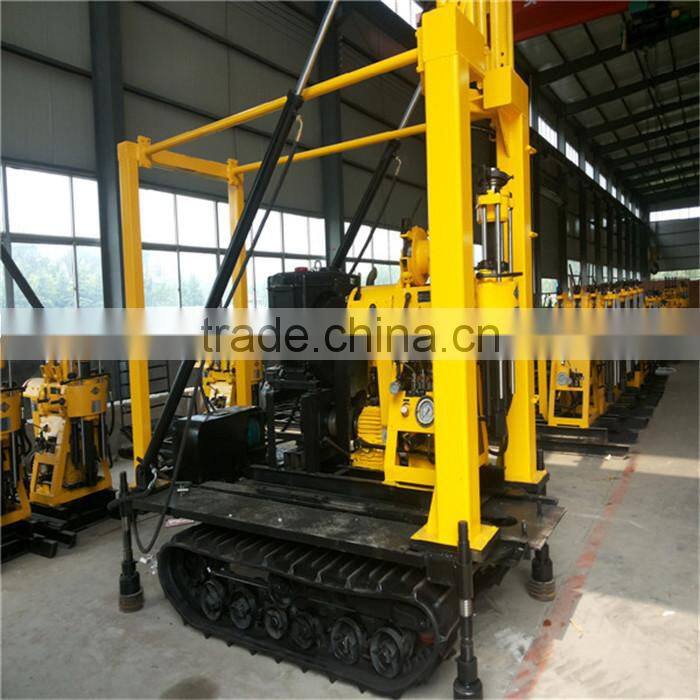

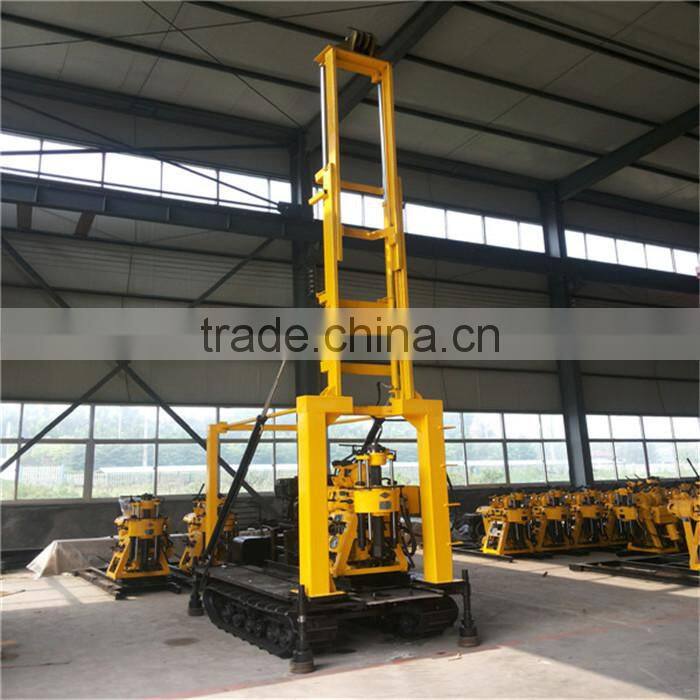

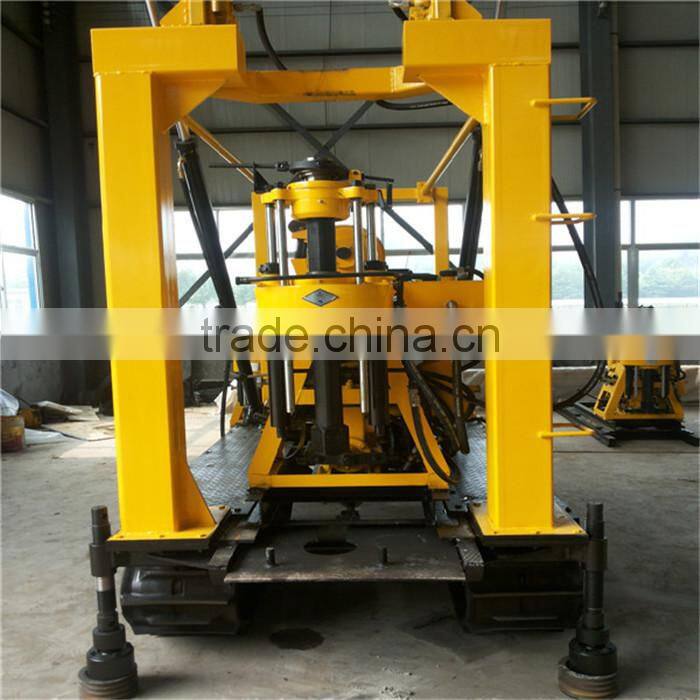

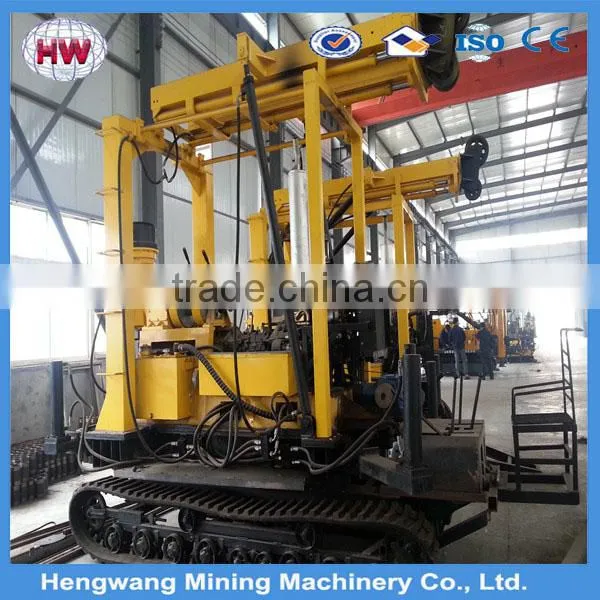

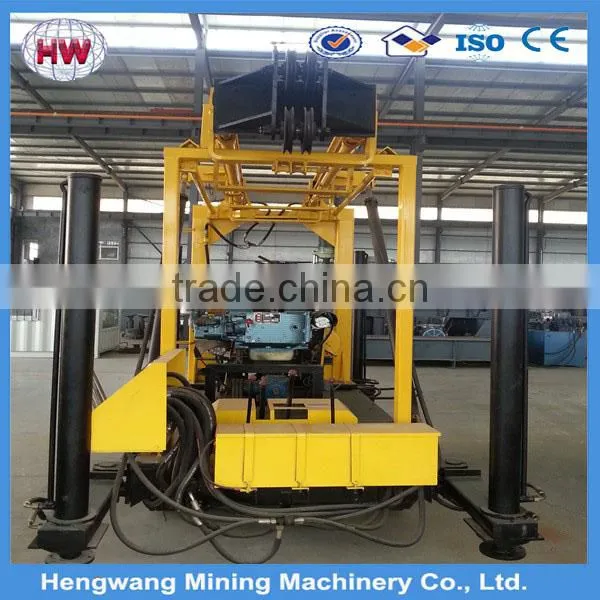

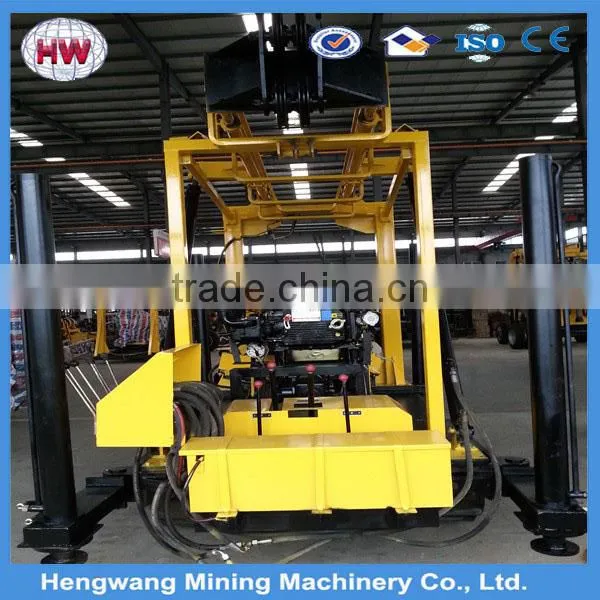

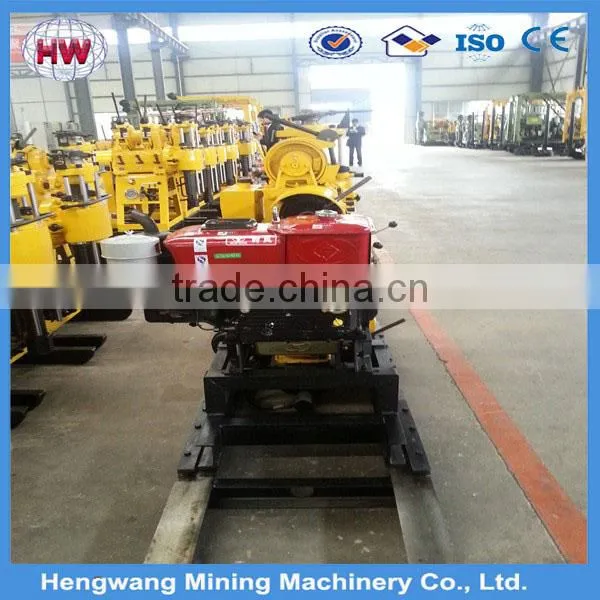

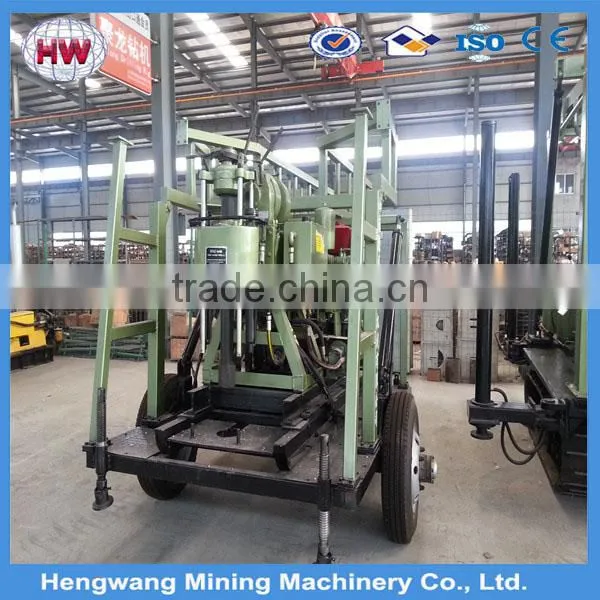

The real details photo
