depth water well drill rig truck mounted crawler water well rotary drilling rigs and drill machine
Production Features

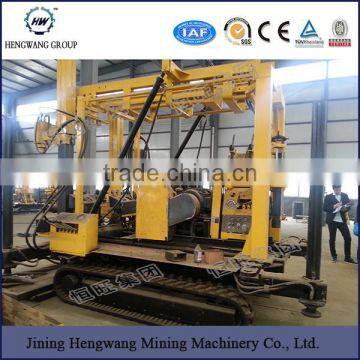

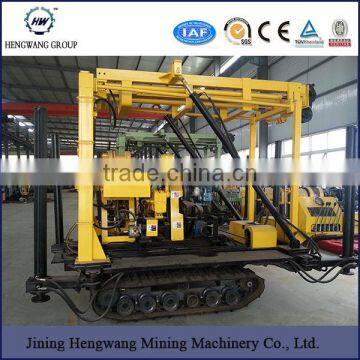

1.HW-130 Crawler-mounted water well drilling rig
a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b. hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder,improve the efficiency
diesel engine adopt the electric starter,to reduce the labor itensity
2.Applications of HW-130 crawler-mounted Water Well Drilling Rig
XYD-130 crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
Specifications | |
Unity machine parameter | |
Drilling depth | 10-130m |
Maximum open hole caliber | 260mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75 |
Drill weight (No include power) | 510 560kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed | 142,285,570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 960kg |
Single line lifting speed | 0.41,0.82,1.64m/s |
Tightrope caliber | 27m |
Mud pump of HZ-130YY model drilling rig | |
Type | Horizontal single urn twin-action |
Displacement | 95/77L/min |
Diesle engine | s1115 or 22HP |
Electric motor | Y160M—4 11kw 1440r/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 30mm |
Water to exit caliber | 25mm |
Triangle conveyer belt | B1575mm |

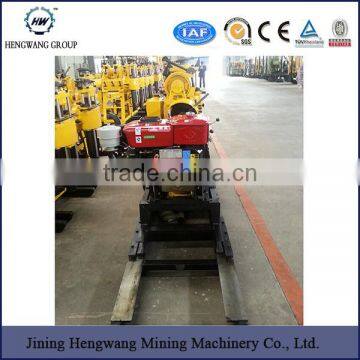

The real details photo
water well drilling rig
