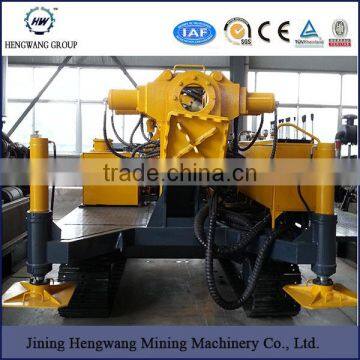

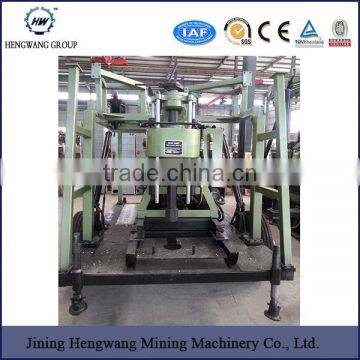

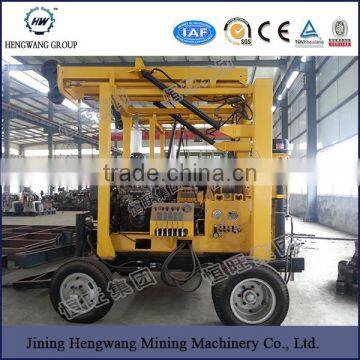

Chinese Popular Portable Small Deep Water Well Drilling Rig

FOB Price

US$ 5,000 - 5,720 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Shandong, China
Brand Name	HengWang water well drilling rig	Model Number	HW-130
Usage	Water Well	Voltage	220V/380V,can be customized
Power(W)	diesel prower	Dimension(LWH)	250010001300 mm
Weight	975KG	Certification	ISO CE
Warranty	1 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Horizontal directional drill rig water bore well drilling rig for sale

Product Features

1.Two rotary hydraulic motor drive ,controlled by one hand-operated direction valve, can realizes the rotary box to output two gears speed and two kinds of torque, in order to adapt the drill to different working conditions.

2.Originally imported walking motor possess the high ability ; Engineering crawler is sturdy and durable

3.Hydraulic winch can crane 1500kgs, and the lifting height is 6meters, which can be used in craning drills and well pipes.

4.Hydraulic supporting leg can rapidly adjust the drill level and gurantee the verticality of the wel

Product Description

Specifications
Unity machine parameter
Drilling depth	10-130m
Maximum open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75
Drill weight (No include power)	510 560kg
Unity machine dimensions	2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed	142,285,570r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	960kg
Single line lifting speed	0.41,0.82,1.64m/s
Tightrope caliber	27m
Mud pump of HZ-130YY model drilling rig
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	s1115 or 22HP
Electric motor	Y160M—4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyer belt	B1575mm

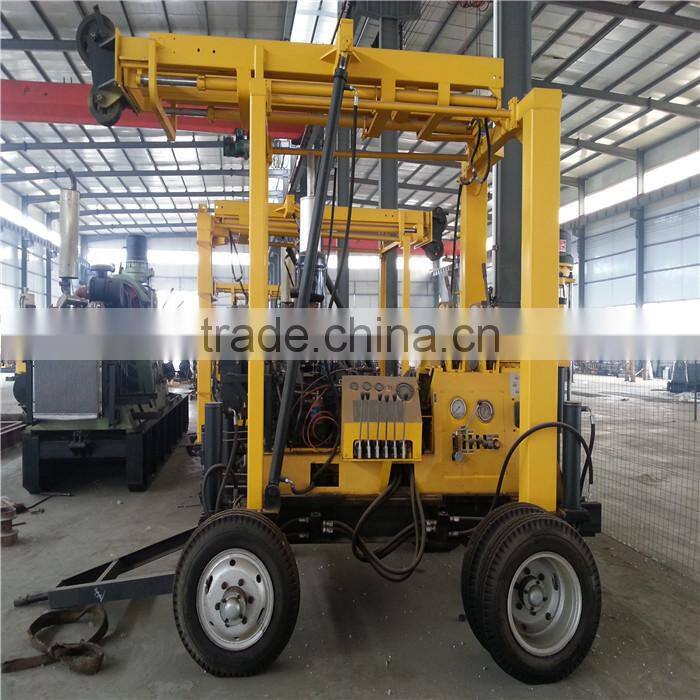

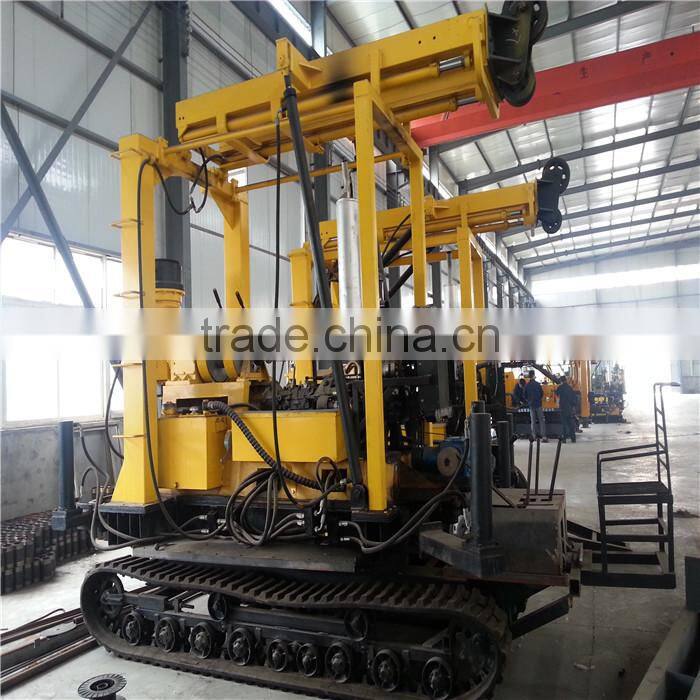

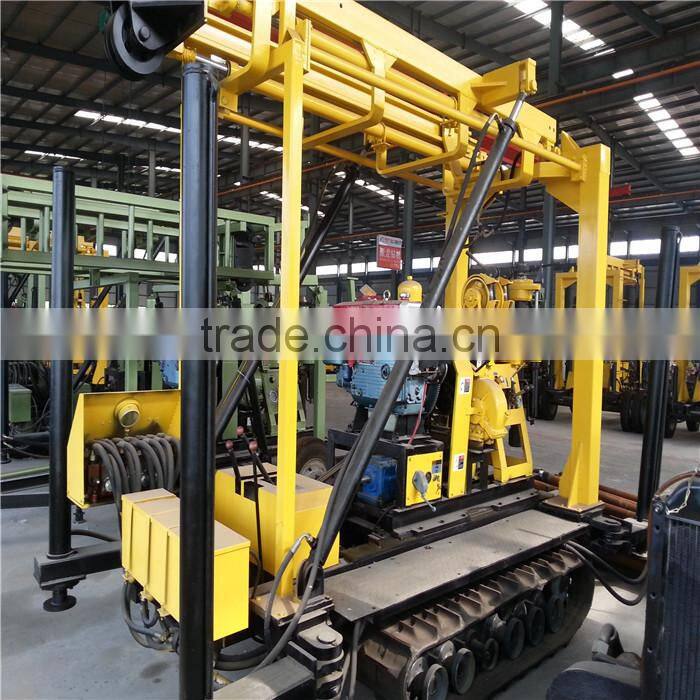

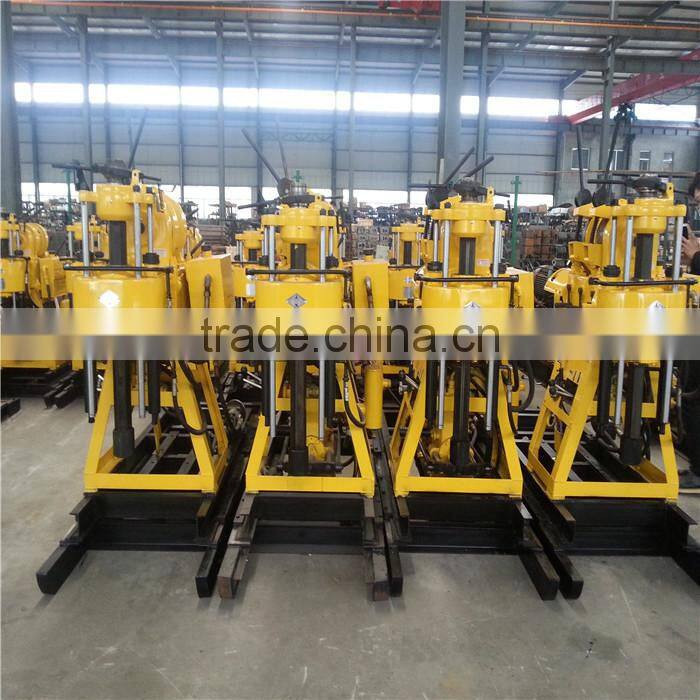

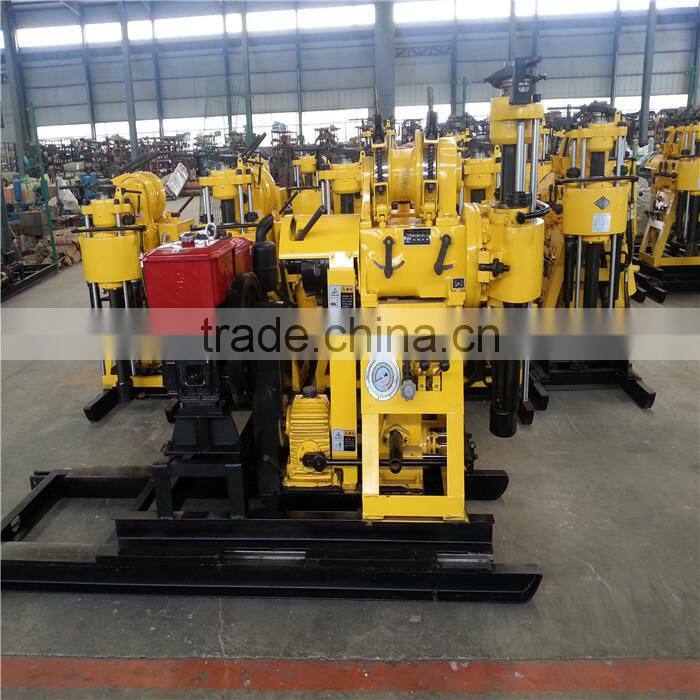

The real details photo
