popular used truck mounted water well drilling rig for sale
- 1000 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | HengWang water well drilling rig | Model Number: | HW-130 |
| Usage: | Water Well | Voltage: | 220V/380V,can be customized | Power(W): | diesel prower |
| Dimension(L*W*H): | 2500*1000*1300 mm | Weight: | 975KG | Certification: | ISO CE |
| Warranty: | 1 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Horizontal directional drill rig water bore well drilling rig for sale
1.Two rotary hydraulic motor drive ,controlled by one hand-operated direction valve, can realizes the rotary box to output two gears speed and two kinds of torque, in order to adapt the drill to different working conditions.
2.Originally imported walking motor possess the high ability ; Engineering crawler is sturdy and durable
3.Hydraulic winch can crane 1500kgs, and the lifting height is 6meters, which can be used in craning drills and well pipes.
4.Hydraulic supporting leg can rapidly adjust the drill level and gurantee the verticality of the wel
Specifications | |
Unity machine parameter | |
Drilling depth | 10-130m |
Maximum open hole caliber | 260mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75 |
Drill weight (No include power) | 510 560kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed | 142,285,570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 960kg |
Single line lifting speed | 0.41,0.82,1.64m/s |
Tightrope caliber | 27m |
Mud pump of HZ-130YY model drilling rig | |
Type | Horizontal single urn twin-action |
Displacement | 95/77L/min |
Diesle engine | s1115 or 22HP |
Electric motor | Y160M—4 11kw 1440r/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 30mm |
Water to exit caliber | 25mm |
Triangle conveyer belt | B1575mm |

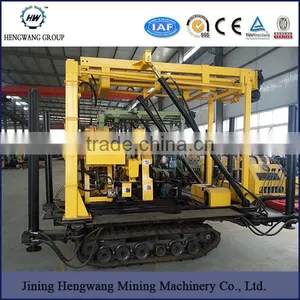

The real details photo
water well drilling rig
Good Cooperation
Quality Certificate
Transaction history
Transport and Shipping
