Promotional Crawler Hydraulic Core Anchoring Drilling Rig With Drilling Capacity 60m
Production Features
The anchor crawler drilling rig is of full hydraulic gyrator type. Its drilling depth is 130-200m, and drilling diameter 150-250mm. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering. In addition, this anchor crawler drilling rig is stable, efficient, versatile, and able to drill complex strata and deal with accidents.
Technology Parameters
| the technical parameter | ||
| Drilling diameter | (mm) | 150-250 |
| Rotary spray pile diameter | (mm) | |
| Drilling depth | (m) | 130-200 |
| Drill rod caliber/Tube diameter | (mm) | 73, 89, 102, 114 |
| Drill pipe inclination angle | (°) | 0-90 |
| Gyrator parameter | ||
| Rated output speed | (r/min) | 10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170 |
| Rated output torque | (N.m) | 7500 |
| Route | (mm) | 3400 |
| The route of shaft shackle slipping | (mm) | 900 |
| Lifting power | (kN) | 70 |
| Lifting speed | (m/min) | 0-5(adjustable), 7, 23, 30 |
| Pressure | (kN) | 36 |
| Pressure speed | (m/min) | 0-10(adjustable), 14, 46, 59 |
| Parameter of whole machine | ||
| Input power(electric motor) | (kW) | 55+18.5 |
| Overall dimension of main engine | ||
| Transport state(length*width*height) | (mm) | 5400*2100*2000 |
| Construction state(length*width*height) | (mm) | |
| Weight of main engine | (kg) | 6000 |
| Walking parameter | ||
| Walking pattern | Crawler walking | |
| Climbing angle | (°) | 25 |
| Crawler ground bearing | (kPa) | 37.8 |
| Traveling speed | (km/h) | 0.4 |
| Turning parameter | ||
| Turning way | Whole manual rotation | |
| Turing structure | Pivotal bearing | |
| Location mode | Locating pin | |
| Auxiliary parts situation | ||
| Holder shackle device | Standard configuration | |
| Crawler chassis | Standard configuration | |

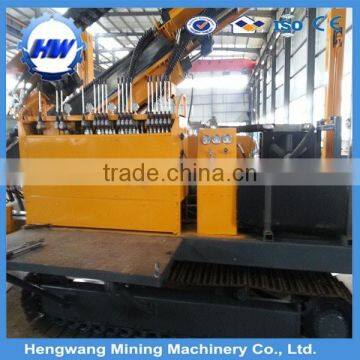

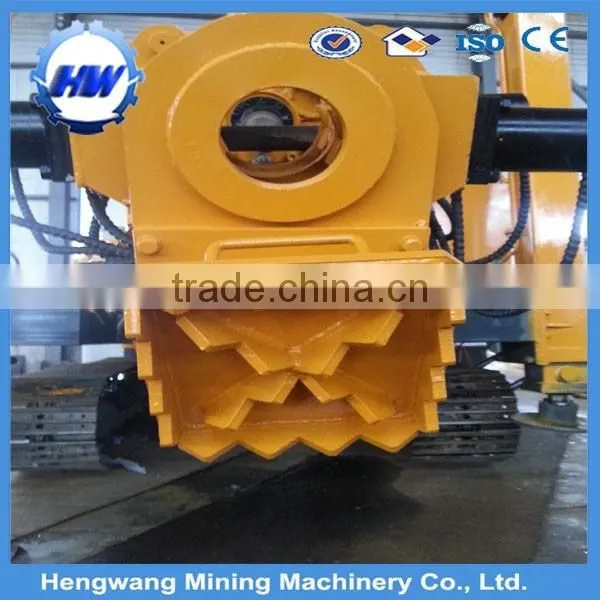

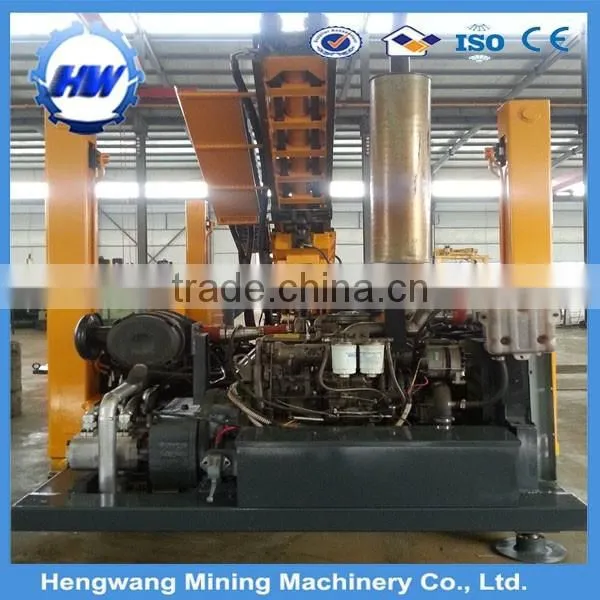

The real details photo
