Home > Products > Anchor Drilling Machine > Low Price High Quality Standard Head Pneumatic Rockbolt Drill Rig MQT130/2.8
Low Price High Quality Standard Head Pneumatic Rockbolt Drill Rig MQT130/2.8
- qingdao
- Money Gram Credit Card
You May Like
-
Pneumatic Roof Bolter Drilling Rig With Anchor Bolt Support
-
Jumbolter Roof Bolter Coal Mine Drilling Rig
-
MQT Series Pneumatic Hand-held Jumbolter Anchor Drill Rig for Sale
-
Mining Used Rockbolt Pneumatic Rig
-
Reinforced Pneumatic Jumbolter Roof Bolter Coal Mine Drilling Rig
-
MQT Series Coal Mine Anchor Roof Bolt Drilling Rig From Hengwang Factory
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Other, air | Place of Origin | Shandong, China | |
| Brand Name | HW | Model Number | MQT | |
| Usage | Coal | Voltage | 380/660 | |
| Power(W) | 2.5kw | Dimension(L*W*H) | 450*256*210mm | |
| Weight | 45KG,49kg | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
low price high quality standard head pneumatic rockbolt drill rig MQT130/2.8
High Quality Low Price Rockbolt Drill Rig
High Quality Low Price Rockbolt Drill Rig
Product Introduction
1, Range of use
MQT-120/3.2 type pneumatic roof bolter finds widely application on roadways with coefficient of rock hardness f≤10, in particular to anchor support operations, either drills bolt hole on the roof or anchor cable hole, also used in agitation and erection of resin explosive cartridge type bolt, anchor cable, no other equipment to be use can be capable of single-time screwing up bolt nuts for requirements of initial anchor pre-tightening force.
2, Features:
mall volume, light weight, easy manipulation, easy maintenance.ar type of pneumatic motor, torque and speed quick and stable running, high reliability.ew fiber glass gas leg design, high reliability, service life is longer.
Technology Parameters
| MODEL & PARAMETER | MQT-100/3.1 | MQT-110/2.8 | MQT-120/3.0 | MQT-130/3.2 | |||||||||
| SUITABLE PRESSURE RANGE (MPa) | 0.4 -- 0.63 | 0.4 -- 0.63 | 0.4 -- 0.63 | 0.4 -- 0.63 | |||||||||
| RATED PRESSURE (MPa) | 0.5 | 0.5 | 0.5 | 0.5 | |||||||||
| RATED TORQUE? (N.m) | ≥100 | ≥110 | ≥120 | ≥130 | |||||||||
| RATED ROTATE SPEED? (r/min) | 280 | 240 | 240 | 240 | |||||||||
| LEG PROPULSION(Kn) | III | 9.8 | 9.8 | 9.8 | 9.8 | ||||||||
| II | 6.7 | 6.7 | 6.7 | 6.7 | |||||||||
| I | 5.2 | 5.2 | 5.2 | 5.2 | |||||||||
| IDLE PUSHING SPEED(mm/s) | 400 | 400 | 400 | 400 | |||||||||
| MAX. OUTPUT POWER (kw) | 3.1 | 2.8 | 3 | 3.2 | |||||||||
| IDLE ROTATE SPEED (r/min) | 900 | 700 | 700 | 700 | |||||||||
| STALL TORQUE (N.m) | ≥180 | ≥230 | ≥240 | ≥240 | |||||||||
| MAX.LOADING TORQUE (N.m) | 170 | 220 | 230 | 230 | |||||||||
| AIR CONSUMPTION (m3/min) | 3.8 | 3.6 | 3.8 | 4 | |||||||||
| NOISE LEVEL (dB(A)) | <90 | <90 | <90 | <90 | |||||||||
| LEG TYPE | I | II | III | I | II | III | I | II | III | I | II | III | |
| WEIGHT (kg) | 45 | 47 | 49 | 48 | 50 | 50 | 48 | 50 | 52 | 48 | 50 | 52 | |
| MAX? HEIGHT (mm) | 2566 | 3046 | 3614 | 2552 | 3032 | 3600 | 2552 | 3032 | 3600 | 2552 | 3032 | 3600 | |
| MIN HEIGHT? (mm) | 1189 | 1309 | 1451 | 1175 | 1295 | 1437 | 1175 | 1295 | 1437 | 1175 | 1295 | 1437 | |

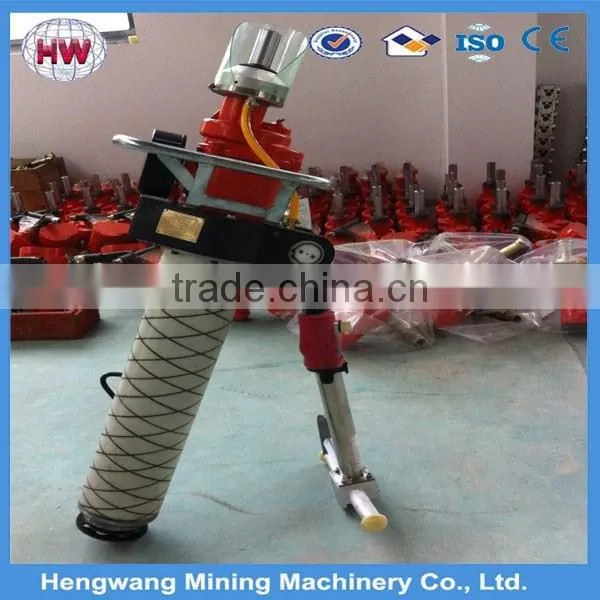

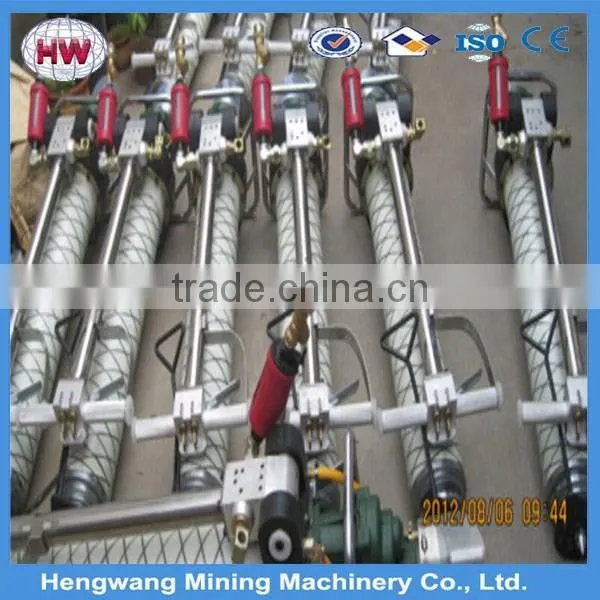

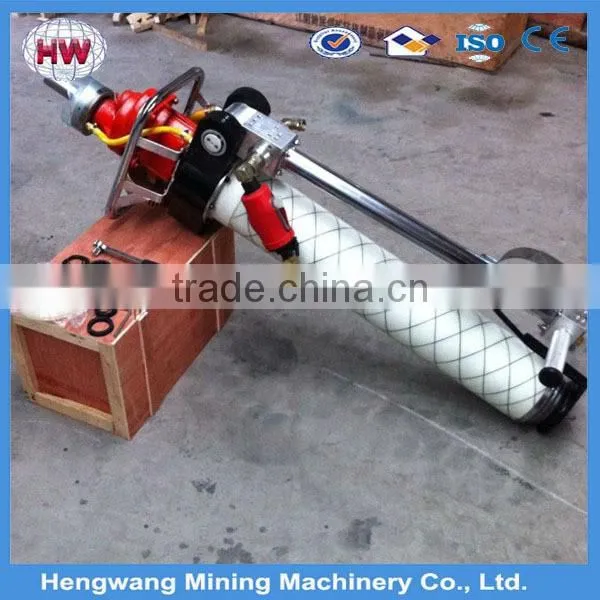

The real details photo
Good Cooperation
Quality Certificate
Transaction History
Transportation and shipping
Zara Shao
Skype: 1 Scarlett HW
Tel: +865372580308
Mobile: +8618353798532
Whatsapp/viber: +8618653798532
Contact Us
- Jining Hengwang Mining Machinery Co., Ltd.
- Contact nameAmy Jiang Chat Now
- Phone86-537-2886068
- Address537-, Jining, Shandong
