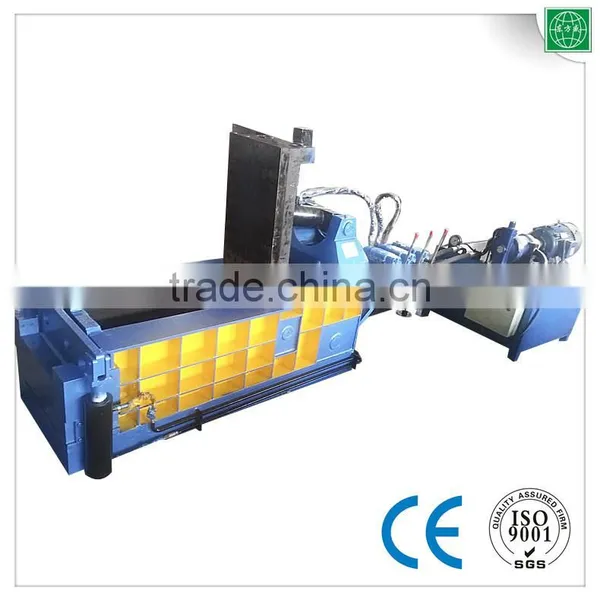

Y81Q-135A Hydraulic Waste Copper Aluminium and Metal Scrap Baler

Specifications

1.hydraulic drive,work stable with no vibration
2.no foot screw is needed for installation
3.IP54 water proof cabinet.

Y81Q-135A Hydraulic Waste Copper Aluminium and Metal Scrap Baler

1. Baler Excellent performance.
2. Easy operation & installation.
3. Particle high density.



Features

1. Options for different force,press box size&bale size.

2. Use diesel engine when electrical motor is unavailable.

3. With safety warning labels and emergency button stop.



Applications

Y81 series of hydraulic metal balers are applicable in steel plants, recycling companies, ferrous& non-ferrous smelting  industry to press metal scraps ( steel, copper, aluminum, stainless steel, discarded automobiles).



Technical Specifications

1	Main pressure cylinder	Type		YG250/180	Quantity		1
		Intended push force		1350Kn	return trip size		1560mm
3	Door cylinder	Type		YG110/75	Quantity		2
		Intended push force		250Kn	return trip size		260mm
4	Door lid cylinder	Type		YG160/100	Quantity		1
		Intended push force		530Kn	return trip size		1150mm
5	bale density			>2000
6	Hydraulic system work force			25Mpa
7	Pressure indoor size			1400*600*600mm
8	Metal Mass Size			600*240mm
9	Sigle to circulate time  (not contain feeding time)			<70S
10	motor		type	Y200L-6		power		22Kw
			regulations turn speed	960r/min		quantity		1
11	Hydraulic pump		type	160YCY14-1B		the maximum pressure		31.5Mpa
			intended row capacity	160ml/r		quantity		1



Service

Any problem before or after delivery, you could find and talk with us anytime.

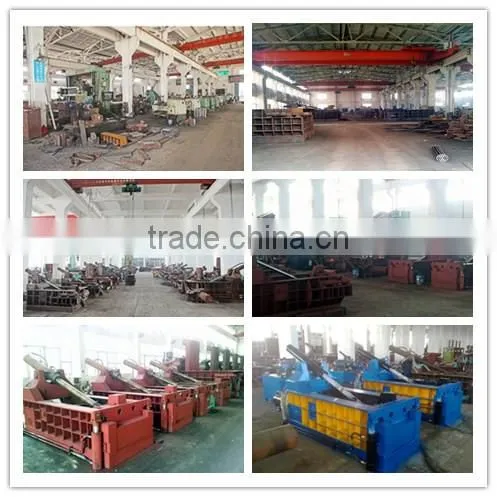

Factory

We company professionally manufacture hydraulic balers and shears for more than 20 years, with certificates of ISO, CE, SGS.

Jiangsu Dongfang Hydraulic Co.,Ltd. locates at Yunting town Jiangsu City, near Shanghai.

we are factory with strict quality control team.

We insist on the enterprise concepts of good faith, excellence, innovation and development.

welcome your coming !
