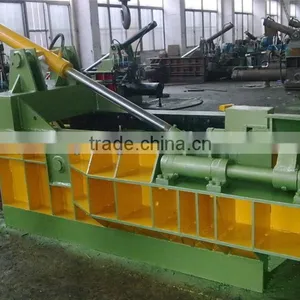

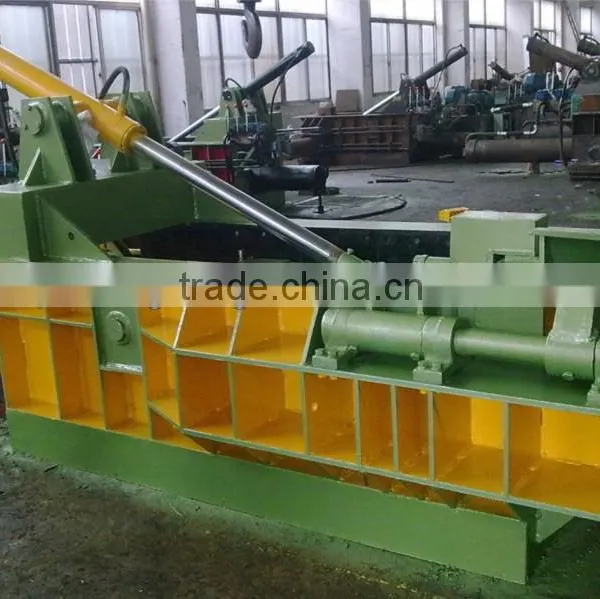

Y81F-125A Hydraulic Iron Scrap Baler with CE(factory and supplier)

Specifications

1.Hydraulic Iron Scrap Baler uses flange connection and no oil leak.
2.Unique cushioning device.
3.Highly wear plate.

1. Technical Specifications of  Y81F-125A Hydraulic Iron Scrap Baler

Model	Nominal Force	Press Box Size	Bale Size	Bale Weight	Production	Power
Y81F-125A	1250kn	1200*700*600mm	300*300mm	60~80kg	1.2~1.5T/h	15kw



2. Features

1) Four compressor cylinders.

2) Bale discharging: turn-out, The package is compact and rigid.

3) Hydraulic driven with hand-value or PLC.

4) Options for different force, press box size, bale shape&size.

5) Use diesel engine when electrical motor is unavailable.

6) With safety warning lables.

7) No installation needed.

8) With emergency button stop any time.

9) Long life of motor and pump.

10) widely used in many lines.

11) CE marked.

12) With oil tank on baler, easy installation.



3. Applications

1) Y81F-125A Hydraulic Iron Scrap Baler is used to compress scrap metals, scraps, scrap aluminum, scrap copper, scrap stainless steel.

2) Be capable of extruding various metal leftover,steel paring,waste copper,aluminum,stainless steel and scrapped car into

regular charging as square colum,cylinder etc. different shapes.

3) Be used in recycling companies, metal processing companies, steel companies.

4) Reduce the deliverying cost and scrap recycling cost.

5) The operation efficiency is high and lump sizes are identical.

6) The hydraulic system applies an integrated valve block and the product is stable and reliable.



Packaging detail: Nude packing, loading container directly.

Shipping detail: 15 days.

1) One year guarantee and lifelong maintenance.

2) Spare parts: supply one set of spare parts for free, tool box, operation book.

3) Any problem, you can call us directly.

We company professionally manufacture hydraulic balers and shears for more than 20 years, with certificates of ISO, CE, SGS.

Jiangsu Dongfang Hydraulic Co.,Ltd. locates at Yunting town Jiangsu City, near Shanghai, we are factory with strict quality control team.

We insist on the enterprise concepts of good faith, excellence, innovation and development, welcome your coming !

1)Are you a factory or trade company?
We are manufacturer with own factory for 20 years, export proportion 50~60%.

2) How can i trust your company?
A. With professional design and sales team, we can serve you the perfect solution with lowest cost.
B. Assessed by third party, national patents for all equipment, also CE, ISO.
C. Welcome to inspect anytime. We are near to Shanghai airport.
D. About the machine, we do much better on: Hydraulic balers,hydraulic shears.

3) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.



How to choose your baler correctly?
1) If your scrap material is scrap metals,non-ferrous metals, color metals we recommend Y81F series metal baler to you,

which has high pressing force with bales tilting out design.
2) If your scrap material is lightweight metals,such as scrap aluminum,scrap copper,tin cans ,buckets,we recommend our

Y81Q series metal baler to you,the bales will be pushed from baler forward.
3) If your scrap material is heavy metals,then we recommend our Y81T series metal balers to you,the bales will be

pushed out from the side of the metal baler.



Models for your reference

Turn-out Series
Model	Niminal Force(kn)	Press Box Size(L*W*H)	Bale Size(W*H)	Bale Weight(kg)	Production(T/h)	Power(kw)
Y81F-63	630	1000*600*500	200*200	20~25	0.9~1.1	7.5
Y81F-100	1000	1000*700*550	230*230	45~55	1.1~1.3	11
Y81F-125A	1250	1000*700*600	300*300	60~80	1.2~1.5	15
Y81F-125B	1250	1200*700*600	250*250	45~60	1.2~1.5	15
Y81F125AD	1250	1400*800*700	300*300	65~80	1.5~2.0	18.5
Y81F-160	1600	1400*900*700	320*320	80~110	2.2~3.0	22
Y81F-200A	2000	1600*1200*800	400*400	130~180	2.8~3.9	37
Y81F-200B	2000	1600*1400*800	450*450	130~180	2.8~3.9	37
Y81F-250B	2500	2000*1750*900	500*500	200~380	4.0~6.5	22*2
Y81F-315	3150	2500*2000*1200	600*600	250~650	4.5~7.0	37*2







Your inquiry will be answered within 24 hours, please feel free to contact us for more machine pictures & details.
